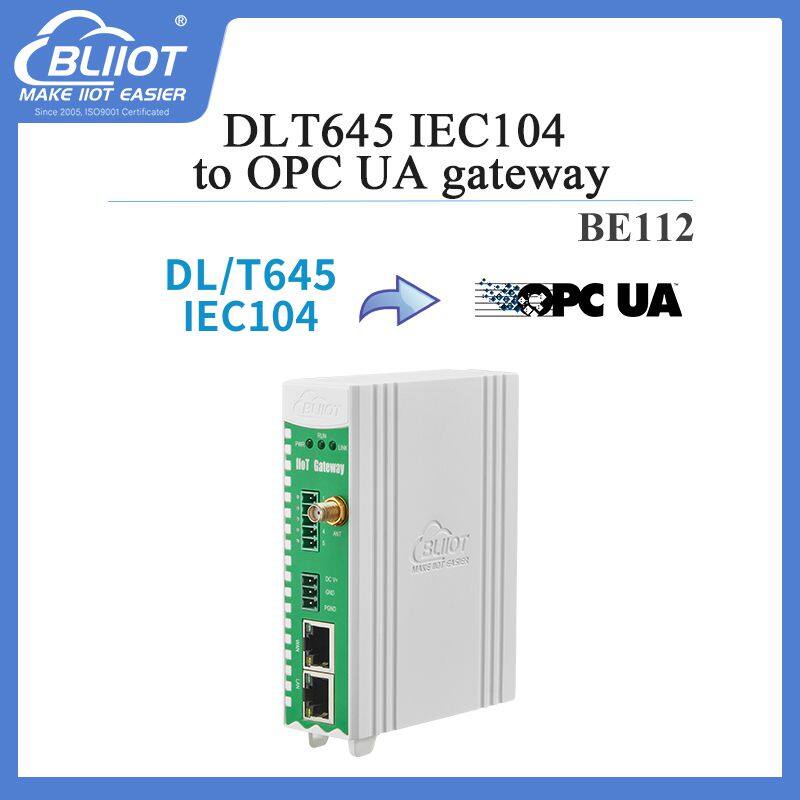

RJ45 Ethernet Port DLT645 IEC104 to OPC UA Grid Protocol Converter

RJ45 Ethernet Port DLT645 IEC104 to OPC UA Grid Protocol Converter thumbnail-1
RJ45 Ethernet Port DLT645 IEC104 to OPC UA Grid Protocol Converter thumbnail-2
RJ45 Ethernet Port DLT645 IEC104 to OPC UA Grid Protocol Converter thumbnail-3
RJ45 Ethernet Port DLT645 IEC104 to OPC UA Grid Protocol Converter thumbnail-4
RJ45 Ethernet Port DLT645 IEC104 to OPC UA Grid Protocol Converter thumbnail-5
RJ45 Ethernet Port DLT645 IEC104 to OPC UA Grid Protocol Converter photo-1
RJ45 Ethernet Port DLT645 IEC104 to OPC UA Grid Protocol Converter photo-2
RJ45 Ethernet Port DLT645 IEC104 to OPC UA Grid Protocol Converter photo-3
RJ45 Ethernet Port DLT645 IEC104 to OPC UA Grid Protocol Converter photo-4
RJ45 Ethernet Port DLT645 IEC104 to OPC UA Grid Protocol Converter photo-5
US$ 44.32 - 49.64 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
BE112
Contact Supplier Request Quote Chat Now
Shenzhen Beilai Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number BE112

Product Description

BE112 is a  Modbus RTU,Modbus TCP,DLT645,IEC101,IEC102,IEC103,IEC104 to OPC UA protocol gateway, supporting up to 10 devices, 512 data points acquisition.

It adopts embedded ARM MCU and is developed based on Linux OS system. Provides 2 RS232/RS485 optional serial inputs, 1 power input, 2 Ethernet ports (WAN port and LAN port) and 2 USB ports. Access to the Internet by WiFi or Ethernet, characterized by fast rate and low latency.

Support OpenVPN function.
Support routing function and cascade switch data acquisition, convenient to collect more industrial equipment data, software function is perfect, covering most of the conventional application scenarios.
Integration of barium rhenium technology adhering to the humanized configuration interface, as well as remote configuration, remote upgrade firmware and other functions, the user only through a simple setup .

Model List

Model WAN LAN COM(DefaultRS485,optionalRS232) WiFi 4G GPS
BE1xx 1 1 2 × × ×
BE1xxL 1 1 2 × √ ×
BE1xxLG 1 1 2 × √ √
BE1xxW 1 1 2 √ × ×
BE1xxP 1 1 6 × × ×
BE1xxPL 1 1 6 × √ ×
BE1xxPLG 1 1 6 × √ √
BE1xxPW 1 1 6 √ × ×

Packaging & Shipping

Box & ship by air,sea ,land

Product Parameters


 Parameter Description
System Processor Clock speed 300Mhz
Storage 128MB
Flash memory 64MB
Power Supply Input voltage DC 9~36V
Power consumption Normal: 85mA@12V, MAX: 117mA@12V
Wiring Anti-reverse connection
Ethernet Ports Specification 2CH RJ45, 10/100Mbps, adaptive MDI/MDIX
Protection ESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
Serial Ports QTY 2CH RS485 or RS232
Baud Rate 2400bps-115200bps
Data Bit 7, 8
Parity Bit None, Even, Odd
Stop Bit 1, 2
Protection ESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
USB Ports QTY 1CH program downloading, 1CH program debugging
Specification Micro USB OTG
Protection Over Current Protection
WiFi(Optional) Antenna QTY 1
Antenna type SMA
Protocol 802.11a/b/g/n(mixed)
Mode Client mode
Signal path 2.4G Channel 1 - 13, 5G Channel 36 - 165
Security Open, WPA, WPA2
Encryption AES, TKIP, TKIPAES
Speed 150Mbps(Max)
Transmission distance Outdoor open area, up to 20 meters
SSID Support
Indicator PWR Always on when device powered on
Off when device lose power
RUN Flickering when system running
Off when system shutdown
LINK Flickering when Ethernet communication; Always on when WiFi communication, OFF when Ethernet, WiFi are all disconnected.
Software Internet Protocol IPV4, TCP/UDP, DHCP, DNS
IP Retrieving Static IP/DHCP
Transmission Support Transparent Transmission
DNS Support Domain Name Resolution
Configuration PC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10
Internet Cache Transmitting: 8Kbyte; Receiving: 8Kbyte
Login Package Support custom login package
Heartbeat Package Support custom heartbeat package
Safety Certification MTBF ≥100,000 hours
EMC
 EN 55022: 2006/A1: 2007 (CE &RE) Class B
IEC 61000-4-2 (ESD) Level 3
IEC 61000-4-4 (EFT) Level 3
IEC 61000-4-5 (Surge)Level 3
Others CE, RoHS, FCC
Environment
 Working -40~55ºC, 5~95% RH
Storage -40~70ºC, 5~95% RH
Others
 Shell Plastic
Dimension 30mm×83mm×110mm(LxWxH)
IP Grade IP30
Net Weight 133g
Installation DIN-Rail Mounting, Wall-Mounting


Certifications

Product Advantages

Company Introduction

Start Your Digital Transformation with BLIIoT

Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of loT devices. Beilai is the pinyin of barium-rhenium in Mandarin. Barium is a lively element, and rhenium is the last element discovered by human beings.
The meaning of barium-rhenium is to be brave in innovation and explore the most cutting-edge technology.

Beilai-Original&Reliable IoT Products Manufacturer

Beilai offer partners with a wide range of hardware including Industrial Ethernet I/O Module, Distributed I/O System, Remote I/O Module, Industrial IoT Gateway, Cellular IoT M2M RTU, Embedded ARM Computer, Industrial 4G Edge Router, X86 Embedded Industrial Computer, Remote Battery Measurement System, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.


Factories and offices

Exhibition

RFQ

Q1. Can you get a free sample?

Yes, you will. but we need to charge for samples, we will return sample fee in later order.

Q2. Can you get better price? or discount?
Yes. we can give you discount. But it is based on quantity. More quantity more attractive price.

Q3.OEM, ODM Severice is available?
Yes.ODOT company provide OEM/ODM service to our customers.

Q4.How about the payment terms?
T/T, Paypal, Credit card

Q5. Can you be responsible for the shipment?
We will organize and schedule all shipping to your office if you need.

Q6. Lead time?
Sample order: 3-6 works days.
Bulk order: 7-30 work days after payment.

Q7. What is your warranty period?
Warranty period is 1 years.
This warranty does not cover damage caused by man-made damage, improper care, improper use, negligence,normal wear and tear, and force majeure such as natura disasters, earthquakes, fires, etc.
