S7-1200 DVP Series to IEC104 PLC Wireless Gateway for Photovoltaic Power Station Automation

Shenzhen Beilai Technology Co., Ltd. Verified Business License
S7-1200 DVP Series to IEC104 PLC Wireless Gateway for Photovoltaic Power Station Automation thumbnail-1
S7-1200 DVP Series to IEC104 PLC Wireless Gateway for Photovoltaic Power Station Automation thumbnail-2
S7-1200 DVP Series to IEC104 PLC Wireless Gateway for Photovoltaic Power Station Automation thumbnail-3
S7-1200 DVP Series to IEC104 PLC Wireless Gateway for Photovoltaic Power Station Automation thumbnail-4
S7-1200 DVP Series to IEC104 PLC Wireless Gateway for Photovoltaic Power Station Automation thumbnail-5
S7-1200 DVP Series to IEC104 PLC Wireless Gateway for Photovoltaic Power Station Automation photo-1
S7-1200 DVP Series to IEC104 PLC Wireless Gateway for Photovoltaic Power Station Automation photo-2
S7-1200 DVP Series to IEC104 PLC Wireless Gateway for Photovoltaic Power Station Automation photo-3
S7-1200 DVP Series to IEC104 PLC Wireless Gateway for Photovoltaic Power Station Automation photo-4
S7-1200 DVP Series to IEC104 PLC Wireless Gateway for Photovoltaic Power Station Automation photo-5
US$ 44.32 - 49.64 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
BE107
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number BE107


Product Description

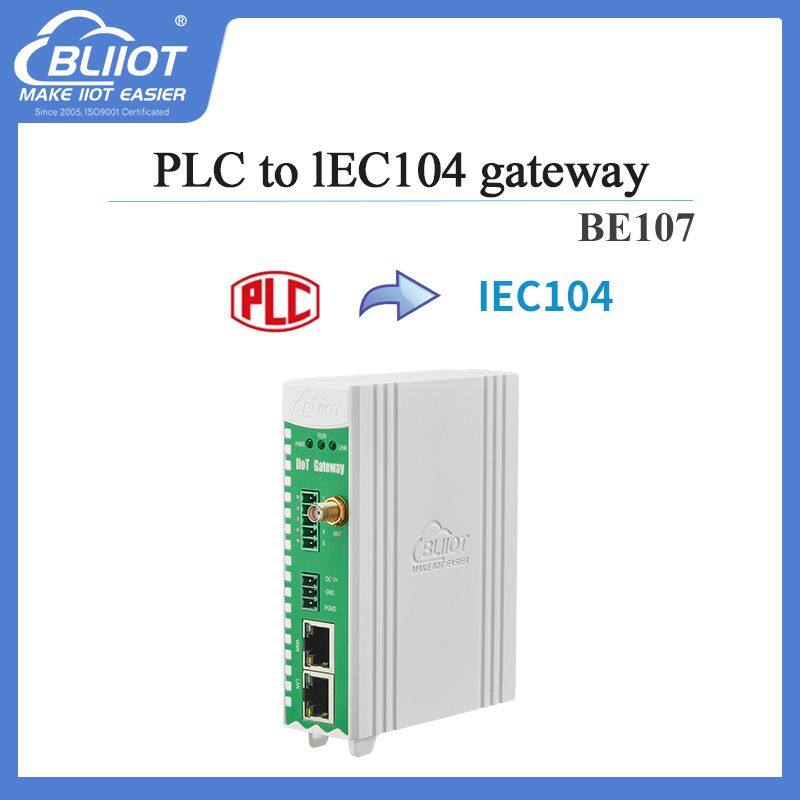

BE107 is a Modbus RTU,Modbus TCP,PLC protocol  to IEC104 protocol gateway, supporting up to 10 devices, 512 data points acquisition.

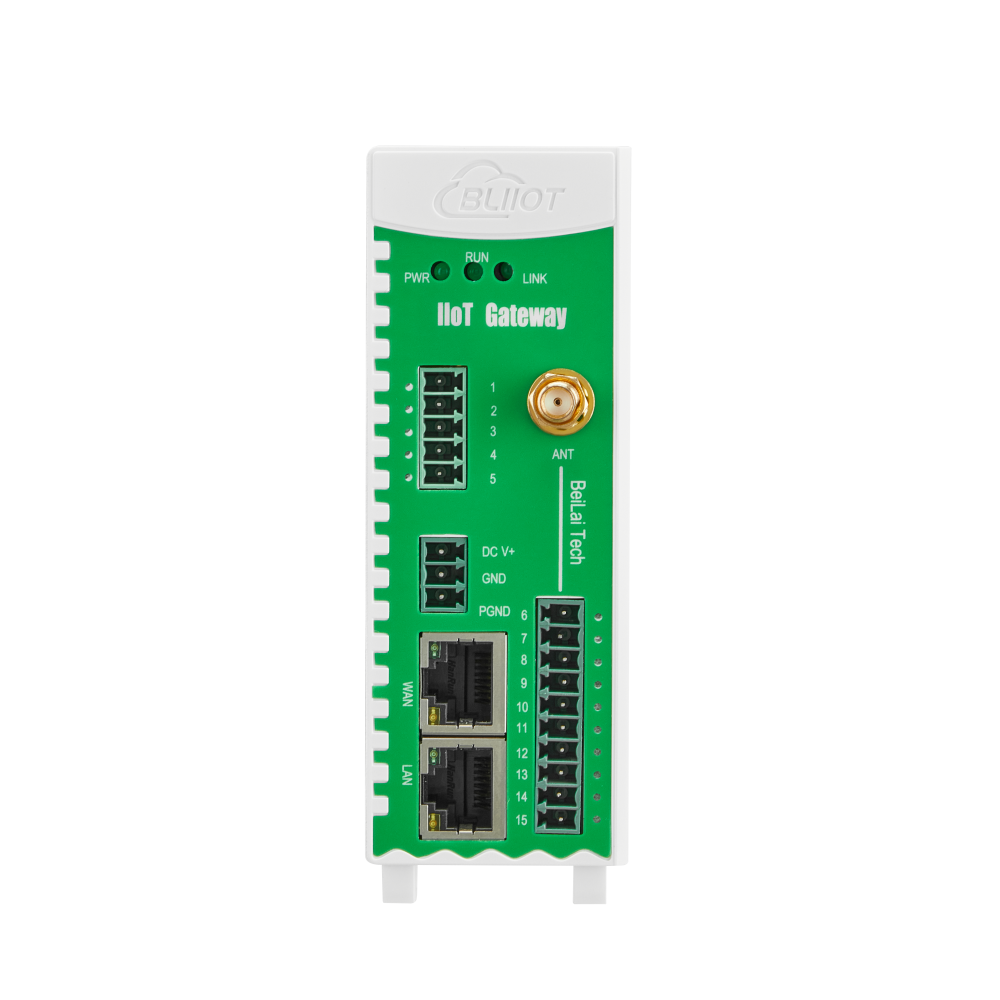

It adopts embedded ARM MCU and is developed based on Linux OS system. Provides 2 RS232/RS485 optional serial inputs, 1 power input, 2 Ethernet ports (WAN port and LAN port) and 2 USB ports. Access to the Internet by WiFi or Ethernet, characterized by fast rate and low latency.


DSupport OpenVPN function.
Support routing function and cascade switch data acquisition, convenient to collect more industrial equipment data, software function is perfect, covering most of the conventional application scenarios.
Integration of barium rhenium technology adhering to the humanized configuration interface, as well as remote configuration, remote upgrade firmware and other functions, the user only through a simple setup .


Model List

ModelWANLANCOM(DefaultRS485,optionalRS232)WiFi4GGPS
BE107112×××
BE107L112×√×
BE107LG112×√√
BE107W112√××
BE107P116×××
BE107PL116×√×
BE107PLG116×√√
BE107PW116√××



Product Parameters


ParameterDescription
SystemProcessorClock speed 300Mhz
Storage128MB
Flash memory64MB
Power SupplyInput voltageDC 9~36V
Power consumptionNormal: 85mA@12V, MAX: 117mA@12V
WiringAnti-reverse connection
Ethernet PortsSpecification2CH RJ45, 10/100Mbps, adaptive MDI/MDIX
ProtectionESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
Serial PortsQTY2CH RS485 or RS232
Baud Rate2400bps-115200bps
Data Bit7, 8
Parity BitNone, Even, Odd
Stop Bit1, 2
ProtectionESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
USB PortsQTY1CH program downloading, 1CH program debugging
SpecificationMicro USB OTG
ProtectionOver Current Protection
WiFi(Optional)Antenna QTY1
Antenna typeSMA
Protocol802.11a/b/g/n(mixed)
ModeClient mode
Signal path2.4G Channel 1 - 13, 5G Channel 36 - 165
SecurityOpen, WPA, WPA2
EncryptionAES, TKIP, TKIPAES
Speed150Mbps(Max)
Transmission distanceOutdoor open area, up to 20 meters
SSIDSupport
IndicatorPWRAlways on when device powered on
Off when device lose power
RUNFlickering when system running
Off when system shutdown
LINKFlickering when Ethernet communication; Always on when WiFi communication, OFF when Ethernet, WiFi are all disconnected.
SoftwareInternet ProtocolIPV4, TCP/UDP, DHCP, DNS
IP RetrievingStatic IP/DHCP
TransmissionSupport Transparent Transmission
DNSSupport Domain Name Resolution
ConfigurationPC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10
Internet CacheTransmitting: 8Kbyte; Receiving: 8Kbyte
Login PackageSupport custom login package
Heartbeat PackageSupport custom heartbeat package
Safety CertificationMTBF≥100,000 hours
EMC
EN 55022: 2006/A1: 2007 (CE &RE) Class B
IEC 61000-4-2 (ESD) Level 3
IEC 61000-4-4 (EFT) Level 3
IEC 61000-4-5 (Surge)Level 3
OthersCE, RoHS, FCC
Environment
Working-40~55ºC, 5~95% RH
Storage-40~70ºC, 5~95% RH
Others
ShellPlastic
Dimension30mm×83mm×110mm(LxWxH)
IP GradeIP30
Net Weight133g
InstallationDIN-Rail Mounting, Wall-Mounting


Packaging & Shipping

Box & ship by air,sea ,land
