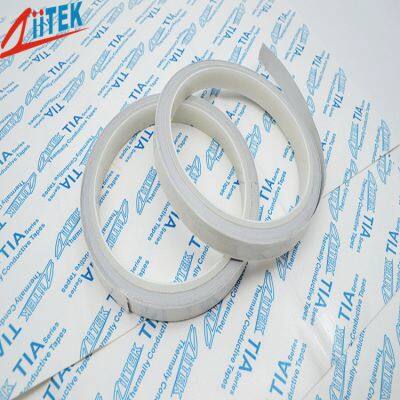

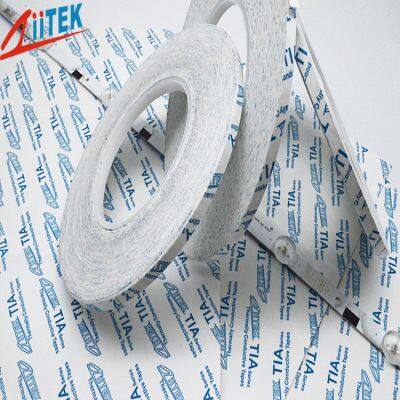

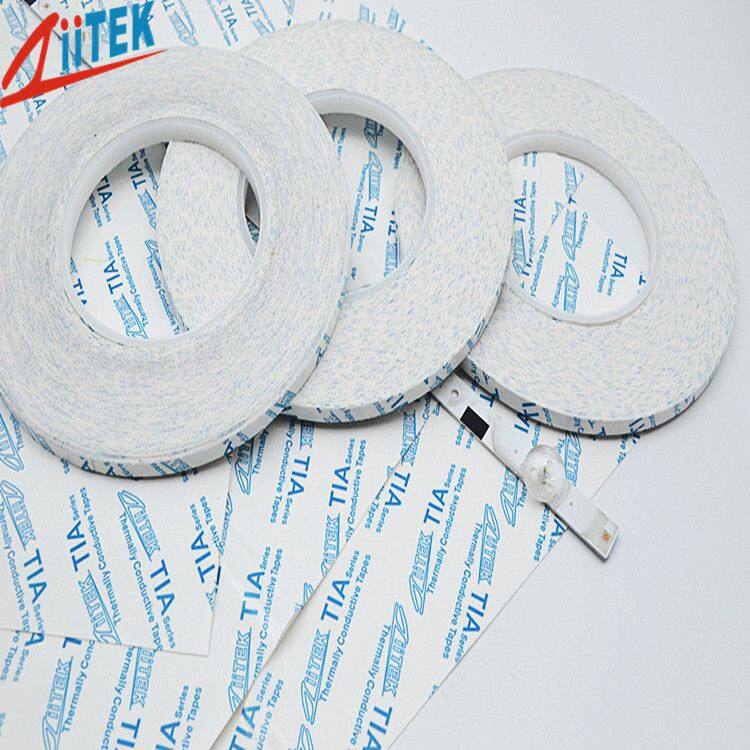

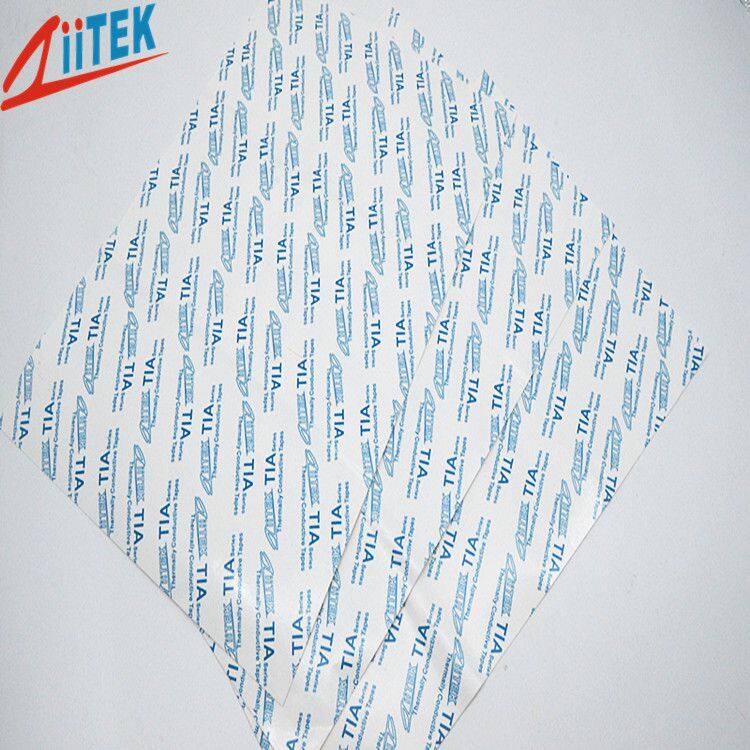

Wholesale Thermal Conductive Double Sided Tape for LED Light
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
The TIA™600P Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able toreplace the method of lubricating grease and mechanical fixing.
Features
> Thermal Conductivity: 0.8W/mK
> High performance,thermally conductive acrylic adhesive.
> Hihg bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> Fire rating equate 94V0
Applications
> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or clip mounting
| Typical Properties of TIA™600P Series | ||||
| Product Name | TIATM605P | TIATM608P | TIATM610P | Test Method |
| Color | White | Visual | ||
| Adhesive Type | Acrylic Adhesive | ******** | ||
| Backing Type | PET | ******** | ||
| Continuous Use Temp | -45℃ to 120℃ | ******** | ||
| Composite Thickness | 0.005"/ 0.127mm |
0.008" / 0.203mm | 0.010" / 0.254mm | ASTM D374 |
| Voltage Breakdown | > 1000Vac | > 1200Vac | > 1500 Vac | ASTM D149 |
| 180 Peel Adhesion | >1200 g/inch (Steel, Immediate) | PSTC-1 | ||
| 180 Peel Adhesion | >1400 g/inch (Steel after 24hrs) | PSTC-1 | ||
| Holding Power 25℃/Hours | > 48 Hours | PSTC-7 | ||
| Holding Power 80℃/Hours | > 48 Hours | PSTC-7 | ||
| Thermal Conductivity | 0.8W/mK | ASTM D5470 | ||
| Fire rating | Equal to 94V0 | ******** | ||
Standard Thicknesses:
0.005"(0.127mm), 0.008"(0.203mm) , 0.010" 0.254mm
Consult the factory alternate thickness.
Standard Sizes:
40" x 100"(1016mm x 30.48M)
Individual die cut shapes can be supplied.
Reinforcement:
The TIA™600P Series the coil can be filled with PET.
Company profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
