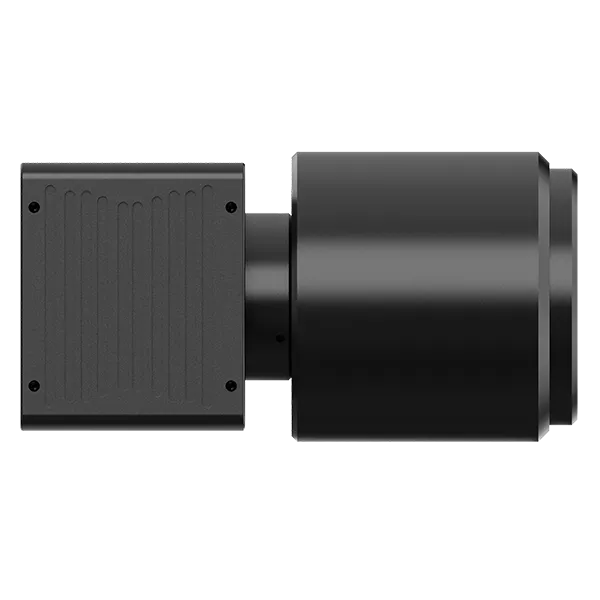

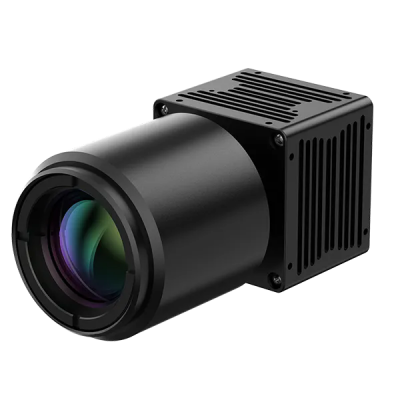

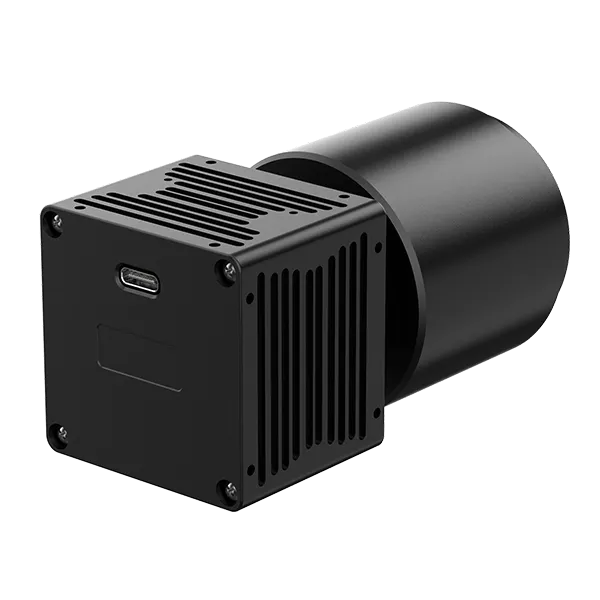

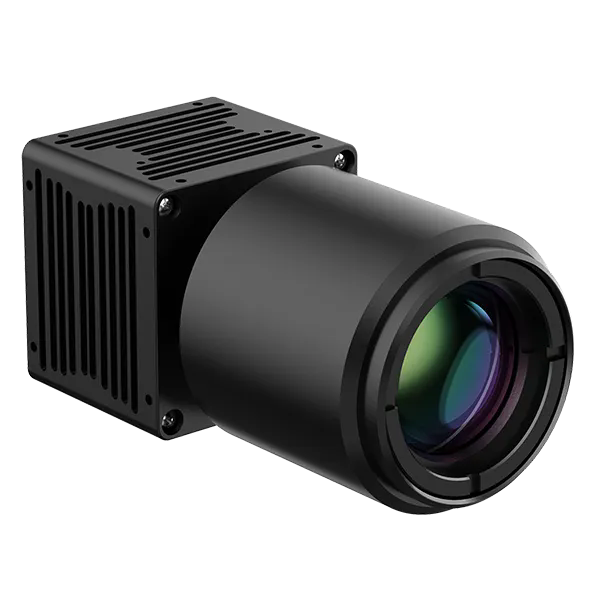

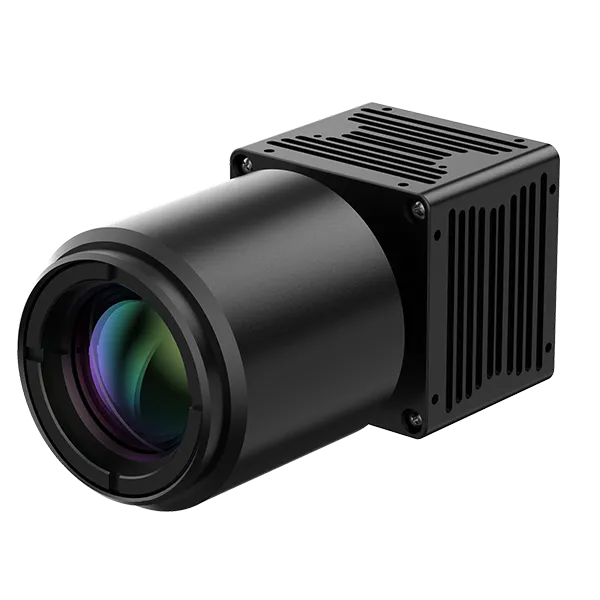

The Keen B615 short-wave infrared module component adopts a high-sensitivity InGaAs short-wave infrared detector with a pixel size of 15μm and an array size of 640×512.
Combined with excellent image processing algorithms, it can provide more delicate and high-quality images.
The product features low power consumption, low noise, and wide dynamic range.
It supports multiple serial communication and video output interfaces.
It is widely used in security monitoring, machine vision, semiconductor testing, laser detection, and other fields.
Feature
Equipped with a self-developed InGaAs shortwave infrared detector with a resolution of 640×512 and a pixel size of 15μm.
Combines miniaturization, low power consumption, and lightweight design.
Built-in TEC temperature control system ensures lower dark current.
The product showcases a robust capacity to permeate haze and smoke, enabling long detection distances even in adverse weather conditions.
The InGaAs spectral band covers various commonly used laser wavelengths, making it widely applicable in the laser field.
It features some thermal imaging characteristics, capable of detecting high-temperature radiation targets (≥250°C).
It supports multiple video protocols, including BT.656, BT.1120, and LVDS.
Expandable USB 3.0 and Cameralink user interfaces.
It provides an SDK that is simple and easy to use, supporting secondary development.
Specification
| Performance Indicators | |
|---|---|
| Detector TypeInGaAs Short-Wave Infrared DetectorResolution640×512Pixel Pitch15μmDetector Frame Rate25/50HzSpectral Band0.9～1.7μmQuantum Efficiency≥70%Operable Pixel Rate≥99.8%Average Pixel Dark Current≤ 60fA (@-0.2V image element bias@25℃)Exposure Time Range0.1~30msPoint typeSnapshot global shutterCooling ModeTEC 1Depth of Output Data8bit/10bit/14bit | |
| Image Adjustment | |
| PaletteSupportDigital Zoom1.0~2.0× continuous zoom (step size: 0.1)Image ProcessingNon-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancementMirroringHorizontal/Vertical/DiagonalCross CursorDisplay/Blank/Move | |
| Power and Interface | |
| Power Supply Range5-24V DC (Recommended voltage of 12V DC)Typical Power Consumption at 25°C＜1.5wDigital VideoCameralink/USB 3.0Communication InterfaceRS-232/RS-422/UART (3.3V)Optical InterfaceC-Mount | |
| Physical Characteristics | |
| Weight130±3gSize48×48×48.5mm | |
| Environment Adaptability | |
| Operating Temperature-40℃～+50℃Storage Temperature-45℃～+85℃Humidity5-95%, non-condensingVibration6.06g, random vibration, 3 axialShock80g, 4ms, final peak sawtooth wave, three axes and six directionsProduct CertificationRoSH2.0 | |
Application Scenarios
| Biological Science | Education and Research | Material Sorting | Quality Inspection |
