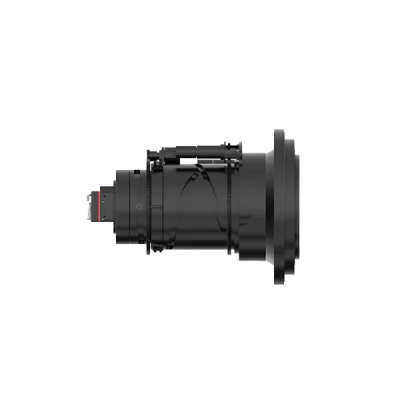

The Turing F640 uncooled infrared module has a built-in high-sensitivity VOx infrared detector, providing a consistently high-performance kernel, ultimate image algorithms, and technology of lens control, bringing a new experience for long-distance monitoring. The product can be widely used in application scenarios such as perimeter security, high-altitude observation, forest fire prevention, and water area monitoring.
Feature
All Scenario and All Application
All-scenario accurate temperature measurement across a FOV ranging from 10° to 62°;
It supports both digital and network applications for all scenarios;
Stable, Precise, and Accurate
Efficient thermal balance, providing high-accuracy temperature measurement of ±2°C across a wide measurement range of -20°C to 650°C for the module, with precise adjustment based on target distance.
It can output a full array of temperature data to facilitate secondary temperature analysis.
Multiple Video Interfaces, Easy for Secondary Development
It provides various video output interface options including interfaces, BT.601, and BT.1120, with extensions for SDI, USB, Cameralink, and HDMI interfaces.
It provides multiple SDK, which are simple and easy to use, shortening the development cycle, improving efficiency, and reducing secondary development costs.
Specification
| Performance Indicators | |
|---|---|
| Detector TypeUncooled VOx infrared detectorResolution384×288Pixel Pitch12μmDetector Frame Rate50HzSpectral Band8~14μmNETD≤40mK at 25℃, F#1.0 | |
| Image Adjustment | |
| PaletteSupport (20 types)Digital Zoom1.0~8.0× continuous zoom (step size: 0.1)Image ProcessingNon-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustmentMirroringHorizontal/Vertical/Diagonal | |
| Network Function | |
| Network ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.Platform AccessModbus TCP, MQTT protocols, ONVIF, GB28181, and SDK.Simultaneous Previewed VideosUp to 8 channelsUser ManagementUp to 20 users, 3 levels: administrator, operator and userBrowserGoogle, Firefox, Edge, etc. | |
| Intelligent Functions | |
| Intelligent VideoSupportIntelligent AlarmSupport abnormality detection and linkage alarm for network cable disconnection, IP address conflict, memory error, and illegal accessIntelligent DetectionSupports intelligent analysis of events such as regional intrusion, tripwire intrusions and passenger and vehicle recognition.Alarm LinkageVideo taking/Image capture (thermal image capture supported)/Email/Linked PTZ/Alarm output | |
| Lens | |
| Lens TypeAthermalized/Prime electric focusFocus ModeManual/AutomaticElectric FocusingSupport | |
| Digital | |
| Power Supply Range12V DC ±10%Typical Power Consumption at 25°C＜2.4w (Typical, @25°C)Digital VideoLVCMOS/BT.601/BT.1120Communication InterfaceRS-232/UART | |
| Network Type | |
| Power Supply Range9-15V DC (Recommended voltage of 12V DC)Typical Power Consumption at 25°C＜2.0wCommunication InterfaceOne RJ45 10M/100M adaptive Ethernet port, one RS-485, one UARTAlarm Interface1-channel alarm input, 1-channel alarm outputAudio Interface1-channel audio input, 1-channel audio output | |
| Interface | |
| Analog Video1-channel PAL system | |
| Environment Adaptability | |
| Operating Temperature-40℃～+70℃Storage Temperature-45℃～+85℃Humidity5-95%, non-condensingProduct CertificationRoSH2.0 | |
| PTZ Function | |
| Fire WarningSupports fire point detection. | |
| Thermal Imaging | |
| Measurement Range-20℃~﹢150℃, 0℃~﹢650℃Measurement Accuracy±2°C or 2% (The greater shall prevail)at ambient temperature -20°C ~ +60°C | |
Application Scenarios
| Railway Inspection | Fire Rescue | Industrial Temperature Measurement | Security Monitoring |
