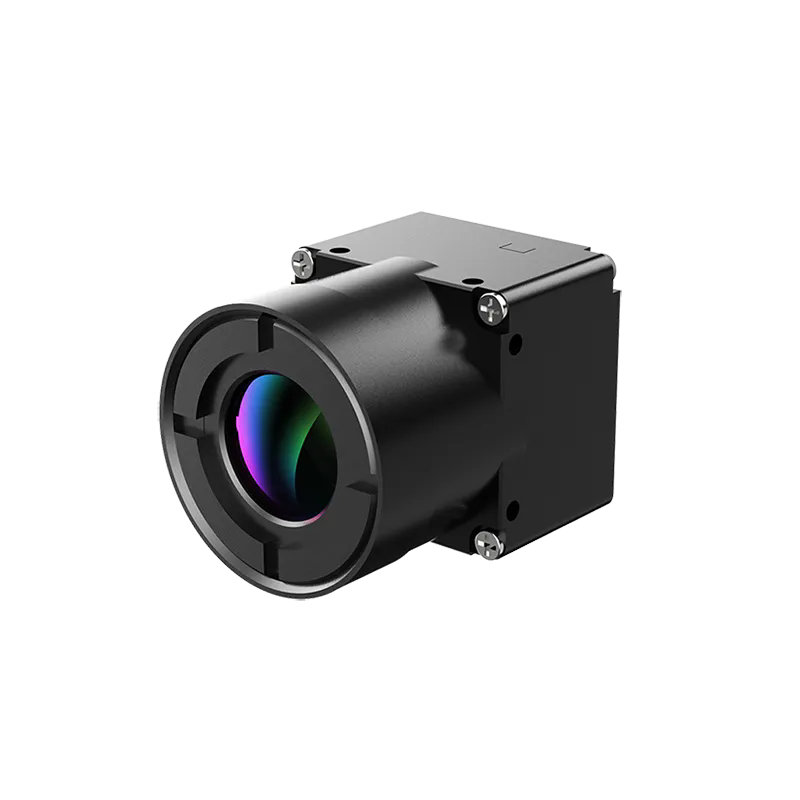

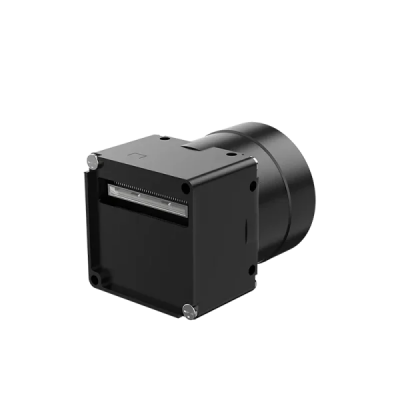

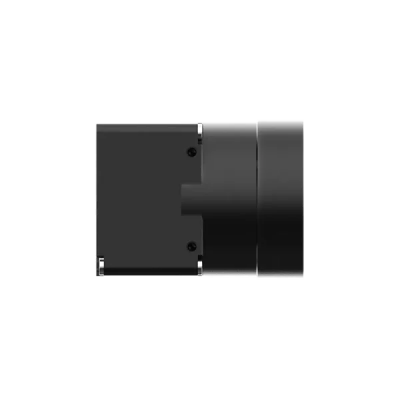

The Turing L640 uncooled infrared module is specifically designed for applications where dimensions and power consumption are critical concerns.
Featuring extreme compactness, lighter weight and lower power consumption, it supports multiple parallel communication and video output interfaces, and provides various lightweight infrared lenses.
This series of imaging-type products can provide comprehensive infrared imaging solutions for a variety of photoelectric products including small handheld telescopes, helmet night vision devices, light-type unmanned aircraft systems, and driving assistance devices.
Products for temperature measurement can be applied in many fields like industrial and electrical temperature measurement, security measurement, and machine vision.
Feature
SWaP3 Design
Its resolution is 640×512, dimension is 21×21mm, and weight is 8g. It meets the application requirements of infrared lightweight.
Excellent Performance
It adopts high-quality image algorithms, providing multiple details regardless of smoke and darkness.
With a measurement range spanning from -20℃ to 650℃, this device offers a precise and rapid temperature assessment algorithm, providing accurate readings immediately upon powering on.
Multiple Selections
FOV covers 10-130°
It supports multiple interfaces, such as MIPI, USB, BT.656, and analog video.
Equipped with leading programmable modules, it features flexible architecture, multiple functions, and high customizability.
Specification
| Performance Indicators | |
|---|---|
| Detector TypeUncooled VOx infrared detectorResolution640×512Pixel Pitch12μmDetector Frame Rate25HzSpectral Band8~14μmNETD≤50mK at 25°C (≤40mK, optional) | |
| Image Adjustment | |
| Brightness/Contrast AdjustmentManual/Automatic/LinearPolarityBlack-hot/White-hotPaletteSupportReticleDisplay/Blank/MoveImage ProcessingTEC-less temperature control algorithm.Digital filtering noise reduction / digital detail enhancement / histogram stretchingMirroringHorizontal/Vertical/Diagonal | |
| Power Supply | |
| Power Supply Range (typical)3.8～5.2VDC / 1.8V / 3.3VTypical Power Consumption at 25°C Without Extension0.35W (Typical, @25°C, Without Extension) | |
| Interface | |
| Digital VideoCDS2/CDS3/LVCMOS/MIPISerial Communication InterfaceUART/I2C (optional)Extension ComponentsUSB2.0 / Analog video | |
| Temperature Measurement Performance | |
| Measurement RangeFor measurement series, -20°C~+150°C, 0℃~+650°CMeasurement AccuracyFor temperature measurement series, ±3°C or ±3% at ambient temperature of -20°C~+60°C (±2°C optional)Measurement ToolSecondary analysis of points, lines, and areas | |
| Physical Characteristics | |
| Dimensions (Without lens and extension components)21×21mmWeight (3.2mm, without extension components)8gLens Model4.1mm, 6.9mm, 9.1mm, 13mm, 25mm, and 45mm | |
| Environment Adaptability | |
| Operating Temperature-40°C~+80°C (-20°C~60°C measurement)Storage Temperature-45℃～+85℃Humidity5 ~ 95%, non-condensingProduct CertificationRoHS | |
Notes:(1) Refer to the product specification for power supply requirements.
Application Scenarios
|
Industrial Temperature Measurement |
Security Monitoring |
UAV Pod |
Machine Vision |
