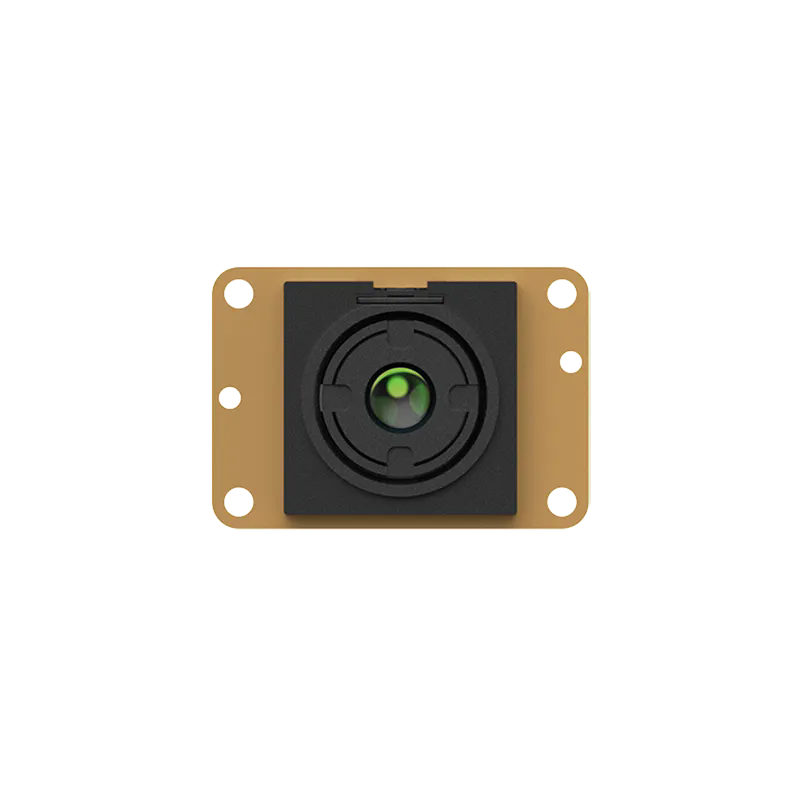

The Turing C256 uncooled infrared module, adopting an advanced 256×192 wafer detector, features compact dimensions, lightweight design, and low power consumption, meeting the SWaP³ design requirements. The split assembly makes it more flexible to use. It comes with multiple auxiliary development tools that support multiple ARM architecture SOC platforms, ensuring ease of use and integration. It also supports the simultaneous output of images and temperature values with a variety of lightweight infrared lenses and extension components. As the best choice for low-cost solutions, this product series can be used in many scenarios such as industry, power, security protection, and machine vision.
Low-Cost Solution
It adopts the 256×192 WLP detector and weighs only 3.5g with a 3.2mm lens.
It supports multiple ARM architecture SOC platforms, capable of directly processing sensor data.
Easy Development
It is compatible with various mainstream embedded SOC platforms and can optimize the image effect of ISP.
It provides multiple SDK development interfaces for rapid secondary development.
Multiple Selections
The FOV varies from 20° to 90° and the extension supports multiple protocols such as DVP, MIPI, and analog video.

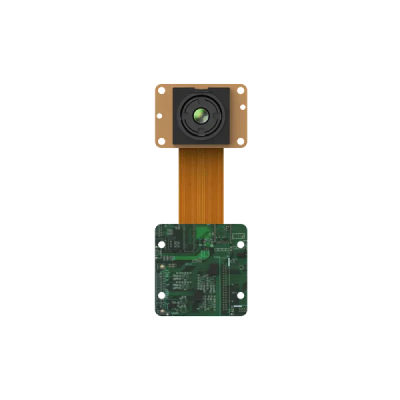

The split design is convenient for integration and development, supporting applications in multiple areas such as consumer, intelligence, security, and industrial sectors.
| Performance Indicators | |
|---|---|
| Detector TypeUncooled VOx infrared detectorResolution256×192Pixel Pitch12μmDetector Frame Rate25HzSpectral Band8~14μmNETD≤50mK at 25°C (≤40mK, optional) | |
| Image Adjustment | |
| Brightness/Contrast AdjustmentManual/AutoPolarityBlack-hot/White-hotPaletteMultiple types supportReticleDisplay/Blank/MoveImage ProcessingScene-based non-uniformity correction, digital filtering noise reduction, and digital detail enhancementMirroringHorizontal/Vertical/Diagonal | |
| Power Supply | |
| Typical Power Consumption at 25°C Without Extension≤0.35W | |
| Interface | |
| Digital VideoCDS2/CDS3/LVCMOSSerial Communication InterfaceUARTExtension ComponentsAnalog Video | |
| Interface/Supporting | |
| Direct Drive SolutionCompatible with SOC platforms such as HIS13516, HIS13519, NT98528, AR9201, AR9341, and CV28M33 | |
| Temperature Measurement Performance | |
| Measurement RangeTemperature measurement series: -20℃～+550℃Measurement AccuracyFor measurement series, ±3°C or ±3% of reading (The greater shall prevail) @Ambient temperature of -20°C~+60°C | |
| Physical Characteristics | |
| Dimensions (Without lens and extension components)21×14.6mmWeight (3.2mm, without extension components)≤3.5gLens Model2mm, 3.2mm, 7mm, 10mm, 13mm | |
| Environment Adaptability | |
| Operating Temperature-20℃～60℃Storage Temperature-45℃～+85℃Humidity5 ~ 95%, non-condensingProduct CertificationRoHS | |
| Power and Interface | |
| Power Supply Range3.8V~5.2V | |
|
Measurement Tool |
Security Monitoring |
Smart Home |
UAV Airborne |
