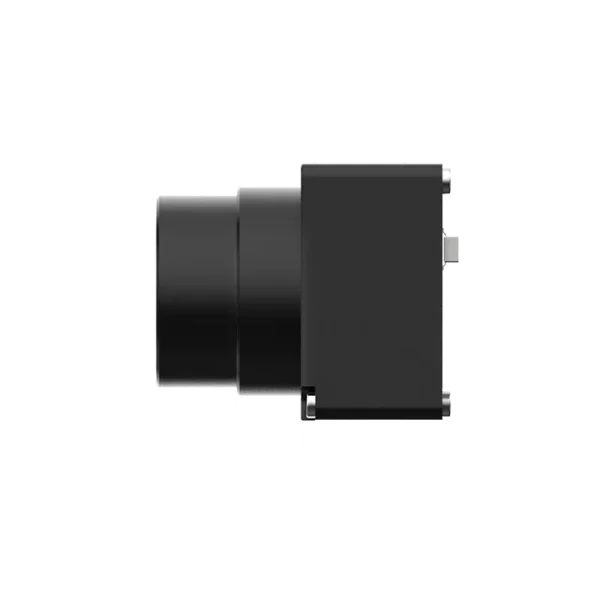

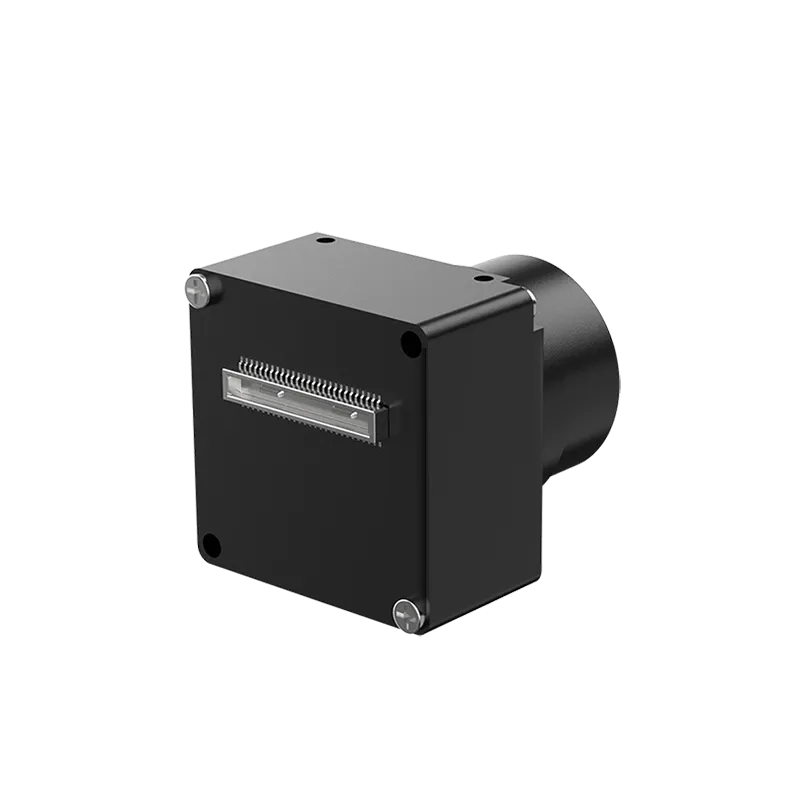

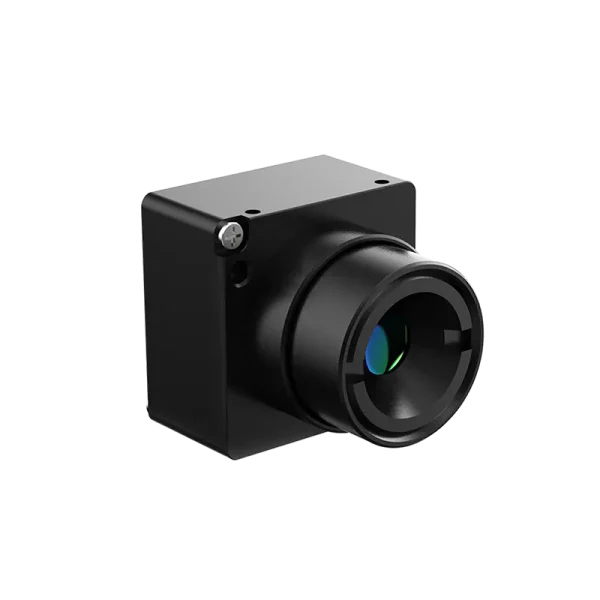

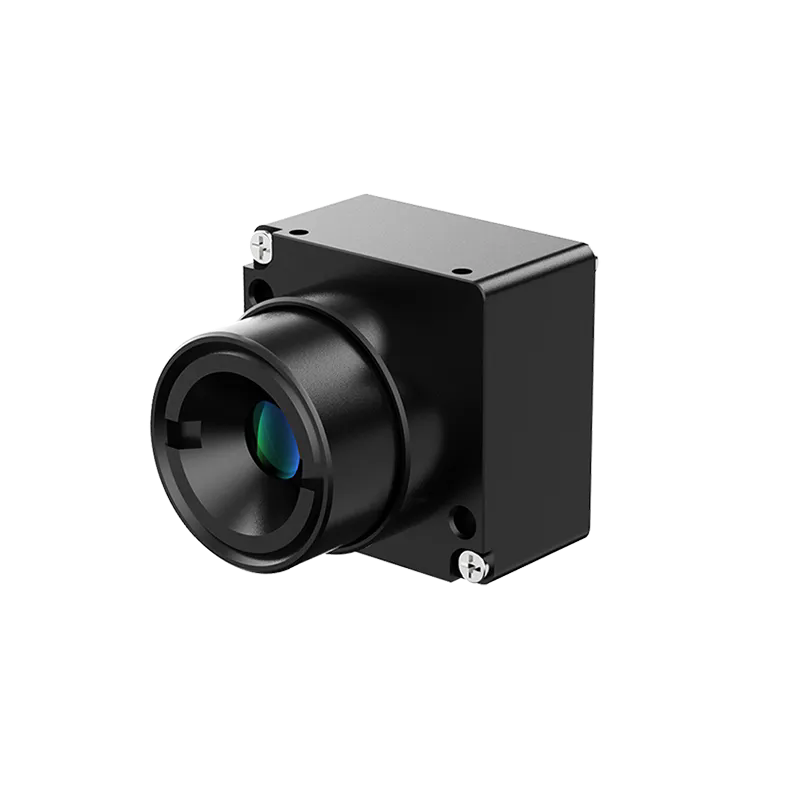

Turing L384 Uncooled Infrared Module (Temperature Measurement)
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
SWaP3 Design
Its resolution is 384×288, dimension is 18×18mm, and weight is 3.5g, and it is a low-cost solution.
Excellent Performance
It supports shutterless correction algorithm to provide a smooth and continuous user experience.
Multiple Selections
Its FOV covers 10°~90°, and it supports multiple interfaces, such as MIPI/USB/BT.656/analog video.
Equipped with leading programmable modules, it features flexible architecture, multiple functions, and high customizability
| Performance Indicators | |
|---|---|
| Detector TypeUncooled VOx infrared detectorResolution384×288Pixel Pitch12μmDetector Frame Rate25HzSpectral Band8~14μmNETD≤50mK at 25°C (≤40mK, optional) | |
| Image Adjustment | |
| Brightness/Contrast AdjustmentManual/AutoPolarityBlack-hot/White-hotPaletteMultiple types supportReticleDisplay/Blank/MoveImage ProcessingTEC-less temperature control algorithm, digital filtering noise reduction, and digital detail enhancement.MirroringHorizontal/Vertical/Diagonal | |
| Power Supply | |
| Power Supply Range (typical)3.8~5.2VDC / 1.8V / 3.3VTypical Power Consumption at 25°C Without Extension≤0.25W (Typical, @25°C, Without Extension) | |
| Interface | |
| Digital VideoBT.656/BT.1120/LVCMOSSerial Communication InterfaceUARTExtension ComponentsUSB 2.0 / Analog video | |
| Temperature Measurement Performance | |
| Measurement RangeFor measurement series, -20°C~+550°C (+650°C customizable)Measurement AccuracyFor measurement series, ±3°C or ±3% of reading (The greater shall prevail) at Ambient temperature of -20°C~+60°C±2°C (optional)Measurement ToolTemperature measurement series: Secondary analysis of points, lines, and areas | |
| Physical Characteristics | |
| Dimensions (Without lens and extension components)18×18mmWeight (3.2mm, without extension components)3.5gLens Model2.88mm, 5.3mm, 10.4mm, 19mm, expandable to 45mm | |
| Environment Adaptability | |
| Operating Temperature-40°C~+80°C (-20°C~60°C measurement)Storage Temperature-45℃~+85℃Humidity5 ~ 95%, non-condensingProduct CertificationRoHS | |
Fire Rescue | Security Monitoring | UAV Pod | Wearable Device |
