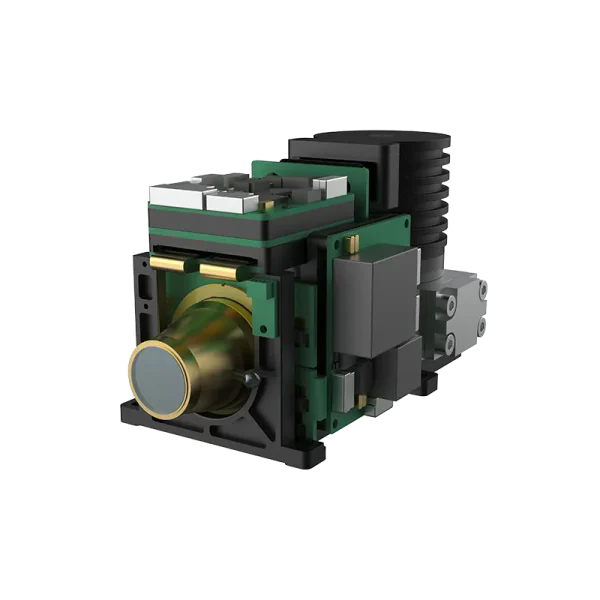

The Photon M615 medium-wave cooled infrared module is provided with the high-performance HgCdTe cooled infrared FPA detector, and carried with the self-developed image processing algorithm.
It reaches the frame rate of up to 100Hz, and has the NETD as low as 15mK.

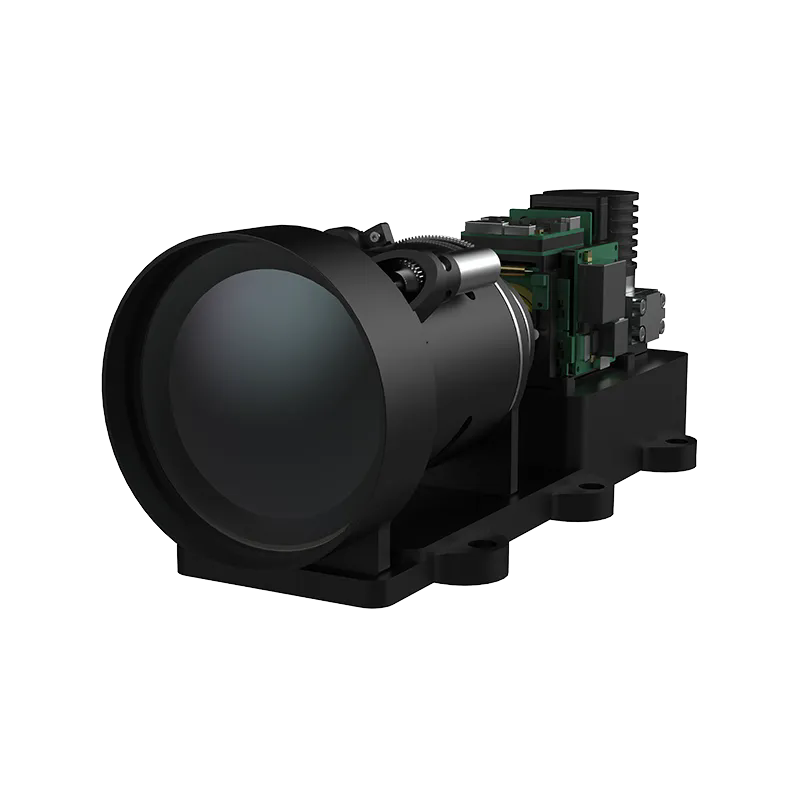

It supports multiple digital video interfaces, is suitable for multiple focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, dynamic loading, border and sea defense and other scenarios.
It provides an SDK, which is simple and easy to use, reducing secondary development costs.
1. Delicate Images with High Sensitivity
The NETD is as low as 15mK, meeting the requirements of long-distance observation of tiny targets.
2. Self-Developed Algorithm for Intelligent Imaging
Equipped with a new self-developed image algorithm, it supports a wide dynamic range and adaptive integral time, providing the best imaging effect for different scenarios.
3. Higher Frame Rate for Timely Capture
The resolution is up to 640×512 and the frame rate is as high as 100Hz, meeting the requirements of large-range dynamic target capture.
Specification| Performance Indicators | |
|---|---|
| Detector TypeHgCdTe cooled infrared detectorResolution640×512Pixel Pitch15μmSpectral Band3.7±0.2μm～4.8±0.2μmNETD≤25mK at 25℃ | |
| Image Adjustment | |
| Brightness/Contrast AdjustmentManual/AutoPolarityBlack-hot/White-hot (white-hot by default)ReticleDisplay/Blank/MoveImage ProcessingNon-uniformity correction, digital filter noise reduction, digital detail enhancementMirroringHorizontal/Vertical/Diagonal | |
| Interface | |
| Analog VideoPALDigital VideoCameralink/SDISerial Communication Interface422 | |
| Physical Characteristics | |
| Dimensions (Without lens)≤ 480g (without isolation)Weight (Without lens)120×88×57mm (±1) (without isolation) | |
| Environment Adaptability | |
| Operating Temperature-40℃～+60℃Storage Temperature-45℃～+65℃Random Vibration4.2gShockFinal peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total)MTTF≥8000h | |
| Power and Interface | |
| Typical Power Consumption at 25°CStable power consumption ≤ 10W, peak power consumption ≤ 25W | |
| More | |
| Power Supply Range (With isolation)/Power Supply Range (Without isolation)11~13V DC (typical 12V)External SynchronizationInternal synchronization (default)/external synchronization/adaptive synchronization mode | |
|
Electro-Optical Pod |
Handheld Reconnaissance |
Seeker |
Special Vehicles |
