Help CenterPhoton H615 Medium-Wave HOT Cooled Infrared Module
Related Products
-
Photon L615 Long-Wave Cooled Infrared ModuleNegotiableMOQ: 50 Pieces -
Keen B615 Uncooled Short-Wave Infrared Module ComponentNegotiableMOQ: 50 Pieces
-
Turing F1280: High-Resolution Uncooled Infrared Module for Thermal Imaging SystemsNegotiableMOQ: 50 Pieces
-
Raythink Turing F1280 Infrared Module: Ultra-Clear Thermal Detail & Wide-Area CoverageNegotiableMOQ: 50 Pieces
-
Turing F1280 Compact Uncooled IR Module: Professional Industrial & Security IntegrationNegotiableMOQ: 50 Pieces

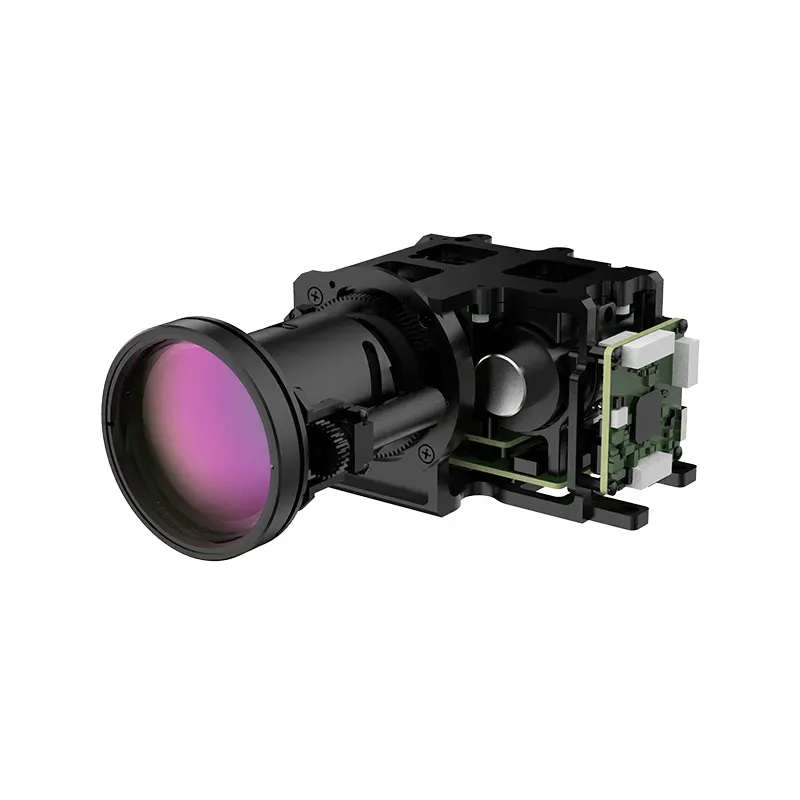

The Photon H615 medium-wave HOT cooled infrared module is provided with the high-performance T2SL cooled infrared FPA detector, is designed with SWAP, and is carried with the self-developed image processing algorithm.
It works flexibly and reliably and plots quickly. It supports multiple digital video interfaces, is suitable for multiple focus and continuous zoom lenses, and is widely applied in the mini pod, handheld, border and sea defense and other scenarios.
It provides an SDK, which is simple and easy to use, reducing secondary development costs.
1、Industry-Leading SWaP Design
The dimensions are as small as 72×61.7×76.7mm, weight is as low as 320g, and power consumption is as low as 5.5W, meeting the needs of miniaturized applications.
2、Delicate Images with High Sensitivity
The NETD is as low as 20mK, meeting the requirements of long-distance observation of tiny targets.
3、Self-Developed Algorithm for Intelligent Imaging
Equipped with a new self-developed image algorithm, it supports a wide dynamic range and adaptive integral time, providing the best imaging effect for different scenarios.
4、Fast Imaging for Timely Capture
Featuring the new generation T2SL detector, it has a resolution of up to 640×512, a frame rate of up to 50Hz, and a cooling time as low as 2.5 minutes, meeting the requirements of large-range dynamic target capture.
5、High Reliability and Durability
The mean time to failure (MTTF) is up to 20000h, and the operating temperature ranges from -40°C to +60°C, ensuring reliable performance in extreme environments such as polar regions or deserts.
| Performance Indicators | |
|---|---|
| Detector TypeT2SL Cooled Infrared FPAResolution640×512Pixel Pitch15μmSpectral Band3.7～4.8μmNETD≤20mK@F4.0，25℃/≤25mK@F5.5，25℃ | |
| Image Adjustment | |
| Brightness/Contrast AdjustmentManual/AutoPolarityBlack-hot/White-hot (white-hot by default)PaletteMultiple types supportReticleDisplay/Blank/MoveImage ProcessingNon-uniformity correction, digital filter noise reduction, digital detail enhancementMirroringHorizontal/Vertical/Diagonal | |
| Power Supply | |
| Power Supply Range (typical)12±0.5V DCTypical Power Consumption at 25°C Without ExtensionStable power consumption ≤ 5.5W, peak power consumption ≤ 11W | |
| Interface | |
| Analog VideoPALDigital VideoCameralink/SDISerial Communication Interface422Synchronization ModeInternal synchronization (default)/External synchronization/Adaptive synchronization mode | |
| Physical Characteristics | |
| Dimensions (Without lens)72×61.7×76.7mm (±1)Weight (Without lens)≤320g | |
| Environment Adaptability | |
| Operating Temperature-40℃～+60℃Storage Temperature-45℃～+65℃Random Vibration4.16gShockFinal peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total)MTTF≥20000h | |
|
Border and Sea Defense |
Electro-Optical Pod |
Handheld Reconnaissance |
Seeker |
