Help CenterPhoton L615 Long-Wave Cooled Infrared Module
Related Products
-
Keen B615 Uncooled Short-Wave Infrared Module ComponentNegotiableMOQ: 50 Pieces -
Turing F1280: High-Resolution Uncooled Infrared Module for Thermal Imaging SystemsNegotiableMOQ: 50 Pieces
-
Raythink Turing F1280 Infrared Module: Ultra-Clear Thermal Detail & Wide-Area CoverageNegotiableMOQ: 50 Pieces
-
Turing F1280 Compact Uncooled IR Module: Professional Industrial & Security IntegrationNegotiableMOQ: 50 Pieces
-
Raythink Turing F1280: High-Res Uncooled IR Module for AI Vision & Intelligent SensingNegotiableMOQ: 50 Pieces

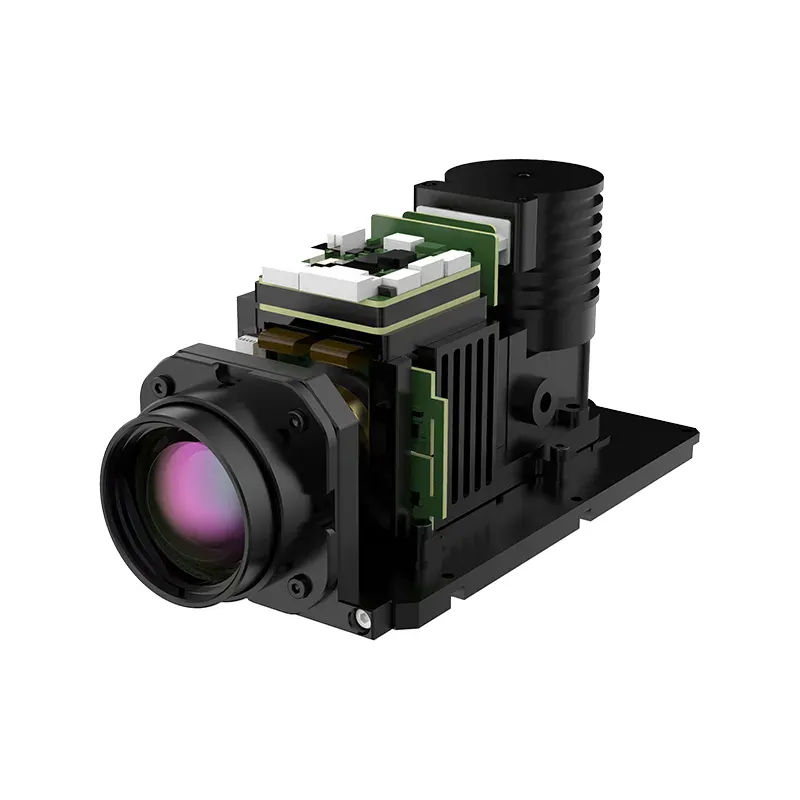

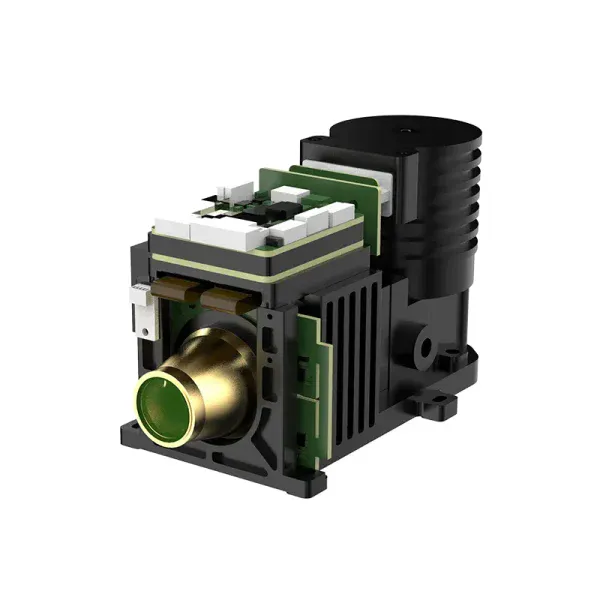

The Photon L615 long-wave cooled infrared module is provided with the high-performance T2SL cooled infrared FPA detector and carried with the self-developed image processing algorithm.
With better sand and dust penetrability, and anti-interference capacity of reflected light, it reaches a frame rate of up to 100Hz.
It supports multiple digital video interfaces, is suitable for multiple fixed focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, dynamic loading, border and sea defense, anti-UAV, and other scenarios.
It provides an SDK, which is simple and easy to use, reducing secondary development costs.
1. Delicate Images with High Sensitivity
The NETD is as low as 25mK, meeting the requirements of long-distance observation of tiny targets.
2. Self-Developed Algorithm for Intelligent Imaging
Equipped with a new self-developed image algorithm, it supports a wide dynamic range and adaptive integral time, providing the best imaging effect for different scenarios.
3. Wider Band and Precise Focus
It covers bands from 7.7 to 10μm and supports various fixed and continuous zoom lenses, meeting the needs of multi-scenario applications.
4. Higher Frame Rate for Timely Capture
The resolution is up to 640×512 and the frame rate is as high as 100Hz, meeting the requirements of large-range dynamic target capture.
Specification| Performance Indicators | |
|---|---|
| Detector TypeT2SL Cooled Infrared FPAResolution640×512Pixel Pitch15μmSpectral Band7.7±0.2μm～10±0.5μmNETD≤25mK at 25℃ | |
| Image Adjustment | |
| Brightness/Contrast AdjustmentManual/AutoPolarityBlack-hot/White-hot (white-hot by default)PaletteMultiple types supportReticleDisplay/Blank/MoveImage ProcessingNon-uniformity correction, digital filter noise reduction, digital detail enhancementMirroringHorizontal/Vertical/Diagonal | |
| Power Supply | |
| Power Supply Range (typical)24~36V DC (Typical 24V) | |
| Interface | |
| Analog VideoPALDigital VideoCameralink/SDISerial Communication Interface422Synchronization ModeInternal synchronization (default)/External synchronization/Adaptive synchronization mode | |
| Physical Characteristics | |
| Dimensions (Without lens)121×75×79mm (±1)Weight (Without lens)≤870 | |
| Environment Adaptability | |
| Operating Temperature-40℃～+60℃Storage Temperature-45℃～+65℃Random Vibration6.06gShockFinal peak sawtooth wave, 40g, 11ms (18 times in three axes and six directions in total) | |
| Power and Interface | |
| Typical Power Consumption at 25°CStable power consumption ≤ 12W, peak power consumption ≤ 25W | |
|
Fire Control and Observation |
Fortress Security |
Shipborne Optoelectronics |
Vision Enhancement |
