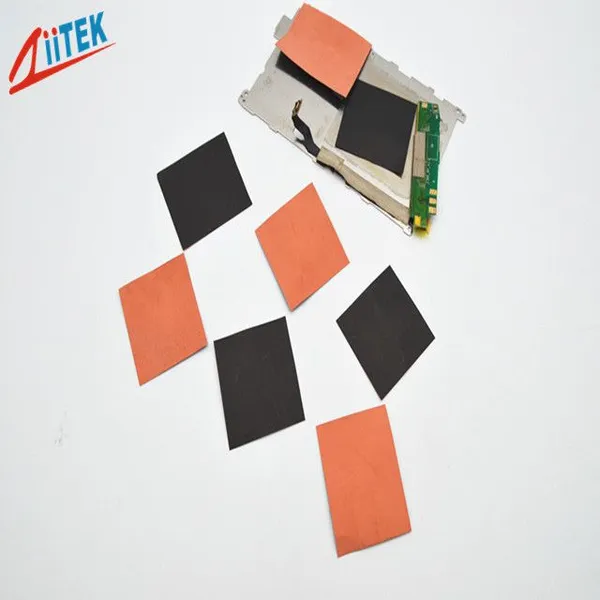

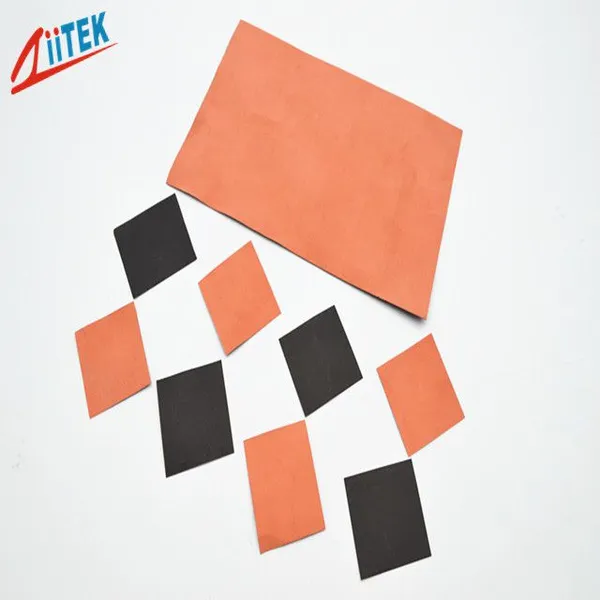

China Wholesale Thermal Conductive Graphite Sheet for Mobile Phone
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
TIR™217 Series products are a new material with highly effective heat conductivity and absorption, stabilized device function and reduce the chance of malfunction by spreading the high temperature heat radiated from specific parts or devices.
Feature
Good thermal conductive: 700 W/mK
Moldability for complex parts
Outstanding thermal performance
High tack surface reduces contact resistance
RoHS compliant
UL recognized
Application
PDP,LCD TV,Set top box
Laptop,Notebook,Projector
Mobile phone,Hand‐held devices
Automotive electronics
Typical Properties of TIRTM217 series | ||
| Product Name | TIR217 | Test Method |
| Colour | Black | Visual |
| Material | Carbon nano composite copper foil vacuum sputtering | ***** |
| Total Thickness | 0.017 mm | ASTM D751 |
| Copper foil thickness | 0.050 mm | ASTM D751 |
| Single-sided coating Thickness | 0.03 mm | ASTM D751 |
| Thickness Tolerance | +/- 10% | ASTM D751 |
| Density | 2.0 g/cc | ASTM D297 |
| Hardness | 85 Shore A | ASTM D2240 |
| Operation Temperature | -40℃ ～400℃ | ***** |
| Volume Resistivity | 5.2X10³ Ohm-meter | ASTM D257 |
| Tensile Strength |
30 psi |
ASTM D412 |
Typical Thermal Conductivit |
6.0 W/m-K | ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) | 1500 W/m-K | ASTM D5470 |
| Thermal Resistance @100psi | 0.030 (in²℃/W) | ASTM D5470 |
Standard Sheets Sizes :
1. 185mm x 220mm 2. 195mm x 240mm 3. 220mm x 320mm
TIR™ 300 series Individual die cut shapes can be supplied.。
Consult the factory alternate thickness.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples.
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
Packaging Details & Lead time
1.with PET film or foam-for protection.
2. use Paper Card To Separate Each Layer.
3. export carton inside and outside.
4. meet with customers' requirement-customized.
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.
