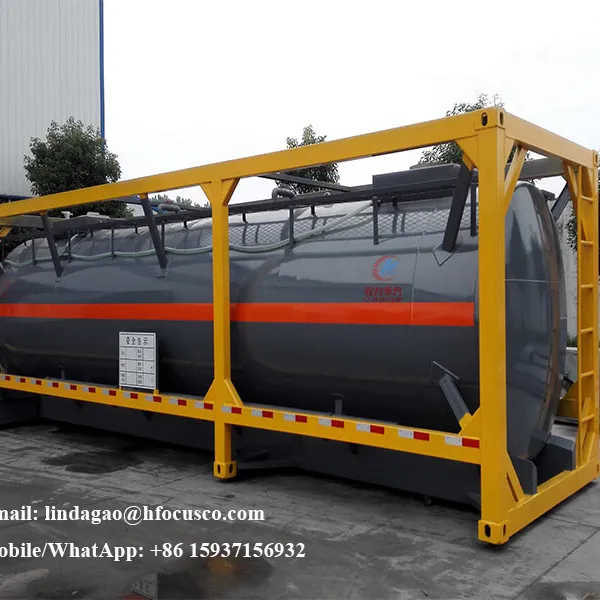

ISO tank is a stainless steel container with the outer frame of 20/40 feet international standard container. It can meet the needs of domestic and foreign producers, users and logistics operators involved in transportation and storage of fluid materials such as chemical, food and medicine. In addition, the container is an international multimodal transport vehicle, suitable for road, rail, and water transport. Compared with the traditional barrel-packed goods, it truly realizes the direct connection from the packing place to the unloading place without intermediate links, and no leakage of the goods, so that the pollution and logistics consumption and leakage of the goods are reduced to the minimum. Adopt tank as the mode of transportation, which can load the maximum quantity of goods under the premise of conforming to international standards and weight limitation, and is the most economical mode of transportation. Compared with other methods, the cost can be reduced as low as 60%.

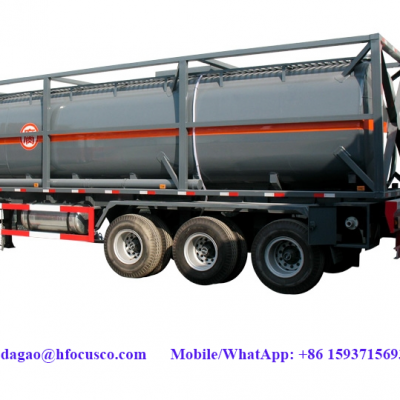

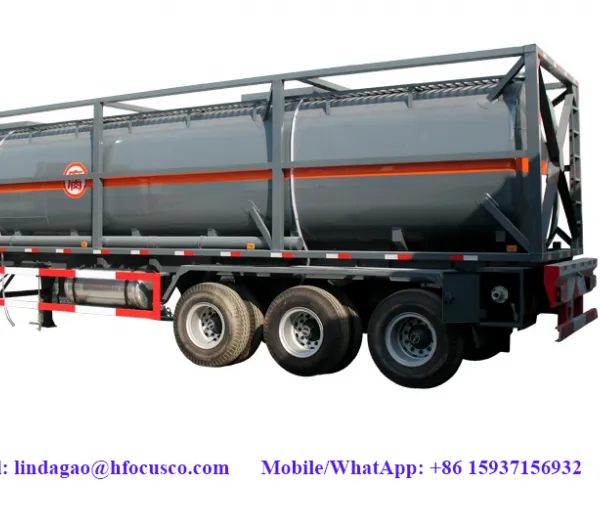

Specification of 3-axle chemical liquid ISO tank
| Volume of Tank(L) | 35,000L | |
| Filling Weight(kg) | 35,000 kg | |
| Tank Weight(kg) | 6100 kg | |
| Thickness of Shell (mm) | 5.5 mm | |
| Thickness of End plate (mm) | 6 mm | |
| Thickness of polythene(mm) | 14mm | |
| Tank Diameter (mm) | 2260mm | |
| Tank Dimensions (mm) (length x width x height) | 12192*2438*2438 | |
| Filling Medium | Caustic liquid(soap, detergent) | |
| Material of Outside Tank | Carbon Steel Q235B | |
| Material of Inside Tank | Polythene | |
| ISO Container Stalk | Carbon Steel Q235B | |
| Design Pressure | 0.3MPa | |
| Working Pressure | 0.1MPa | |
| Water Pressure Test | 0.4MPa | |
| Designing temperature | 20~40°C | |
| Medium Density | 1 kg/ cbm | |
| Produce standard: regulated by GB18564 | ||
| Main parts of ISO container | ||
| Item | Specification/ mm | Quantity |
| Breath valve | DN50 | 2 |
| Outlet | DN80 | 1 |
| Drain tube | DN50 | 2 |
| Manhole | DN500 | 2 |
