4X2 Dongfeng 5m3 Sewage Trucks

4X2 Dongfeng 5m3 Sewage Trucks thumbnail-1
4X2 Dongfeng 5m3 Sewage Trucks thumbnail-2
4X2 Dongfeng 5m3 Sewage Trucks thumbnail-3
4X2 Dongfeng 5m3 Sewage Trucks photo-1
4X2 Dongfeng 5m3 Sewage Trucks photo-2

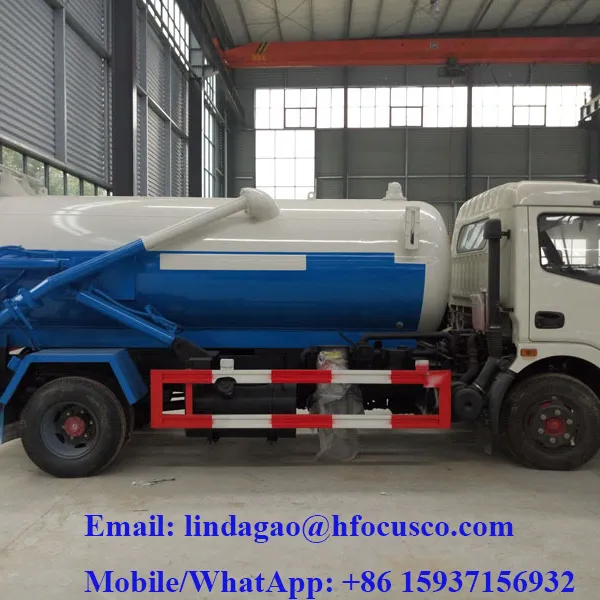

4X2 Dongfeng 5m3 Sewage Trucks photo-3
US$ 10000 - 99999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
focus
Place of Origin:
China
Model Number:
focus Sweage truck
Contact Supplier Request Quote Chat Now
Henan Focus Vehicles Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name focus
Place of Origin China
Model Number focus Sweage truck
Condition New
Transmission Type Manual
Fuel Type Gasoline
Emission Standard Euro 3
Horsepower 95HP
Dimension (L x W x H) 5990X1960X2380(mm)
Tank Volume 5cbm
Sewage suction truck, also called vacuum suction truck. is a new type of sanitation vehicle that collects, transplants and clean up sludge and sewage to avoids two pollution. The suction truck has the advantages of self suction, self discharge, fast working speed, large capacity and convenient transportation, it is suitable for  collecting liquid substances such as feces, mud, crude oil, etc. Sewage suction truck are composed of chassis,vacuum tank, vacuum pump, oil-gas separator, water-gas separator, four way valve, locking device, pressure meter, the suction hose, liquid level meter, hydraulic cylinders,power take-off,hand washing device and etc.

Our tank material is made of 3/4/5mm high quality steel plate,the head is made of 3-6mm steel plate,which is formed by a large bending machine. It has higher strength. The back door can be hydraulically opened automatically to clean up the deposits in the tank. The ball valves of the truck are all made of stainless steel ball valves, which not only increases the appearance, but also improves the corrosion resistance and frost resistance. Our products are Widely used in chemical enterprise, oil depot, storehouse, shop and terminal market.

The advantage of 4X2 DongFeng 5m3 Sewage Truck
1. Imported high quality pump for option.
2. 40-45 degree hydraulical lift for clean dumping.
3.Rear door can be opened & closed hydraulically.
4. The sewage suction tank can be hydraulic self-dumping.
The specification of 4X2 DongFeng 5m3 Sewage Truck

The Parameters of 5 m3 Sewage Suction Truck

Overview

Name

Sewage Suction Truck

Dimension(LxWxH)

5990X1960X2380(mm)

Total Mass

8050Kg

Rated Payload

5000Kg

Kerb Weight

3050Kg

Passenger

3

Approach/Departure Angle

19/15

The Parameters of Chassis

Manufacture/Model

Dongfeng/EQ1060TJ20D3

Driving Type

4*2 left/right hand drive

Wheel Base

3300 mm

Gearbox

Six speed lever with five speed forward and one reverse, manual

Front/Rear Track

1506/1466(mm)

Tyre

7.50-16

The Number of Tyre

6+1(spare tyre)

Front/ Rear Suspension

1032/1658(mm)

Leaf Spring Number

8/9+5, 6/8+4

Engine

Manufacturer/Model

Chaoyang/CY4102-C3F

Rated Power

95hp/70kw

Fuel Type

Diesel oil

Displacement/Capacity

3856ml

Emission Standard

Euro3

Cylinder

Straight/4

Max. torque

560N.m

Velocity

3200rpm

The Parameters of Equipment

Tank Capacity

5 m3

Vacuum Pump Rotation Speed

800r/m-1400r/m

Max. Suction Lift

>6m

Vacuum

>500mmHg

Rotation Direction

Clockwise

Time for full suction

Common Accessories

Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional),etc.
The Details of 4X2 Dongfeng 5CBM Sewer Cleaning Truck


Product Tags: trucks , Sewage Suction Truck , Sanitation Trucks , Sewage Trucks , vacuum suction truck , transport truck , 4*2 sweage truck , suction truck , left hand drive truck
