Home > Transportation > Truck > Dump Truck > Dongfeng Dump Truck LHD 6X4 Euro 3/Cheap Price Dump Trucks for Transport,China 380/420HP 6X4 8X4 Euro4 HOWO Dump Truck for Philippines

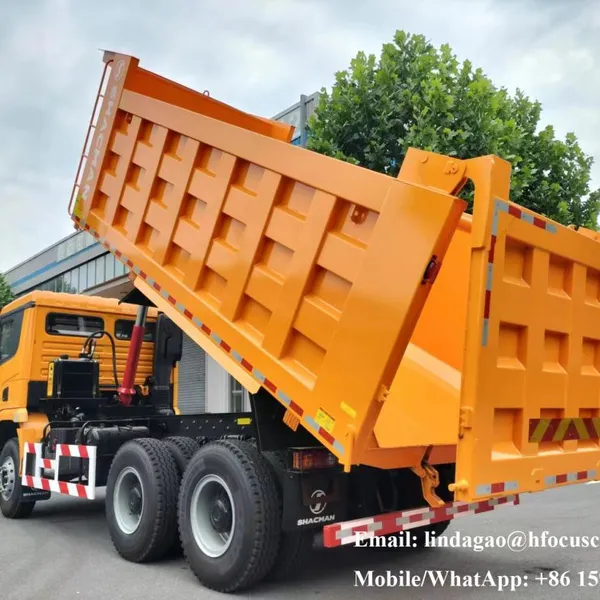

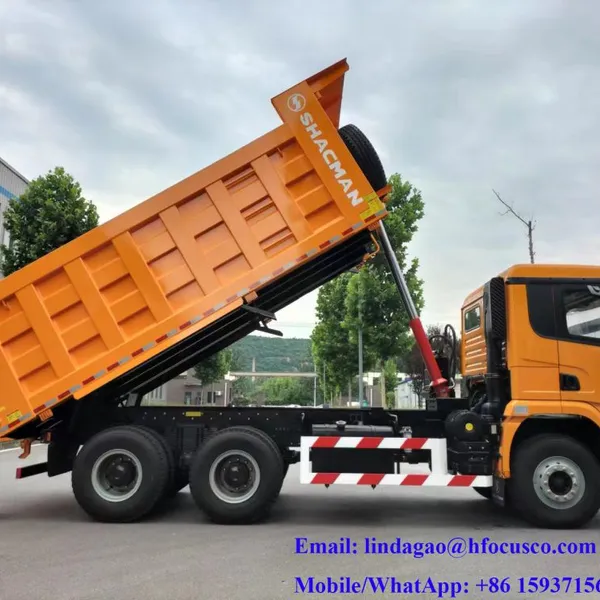

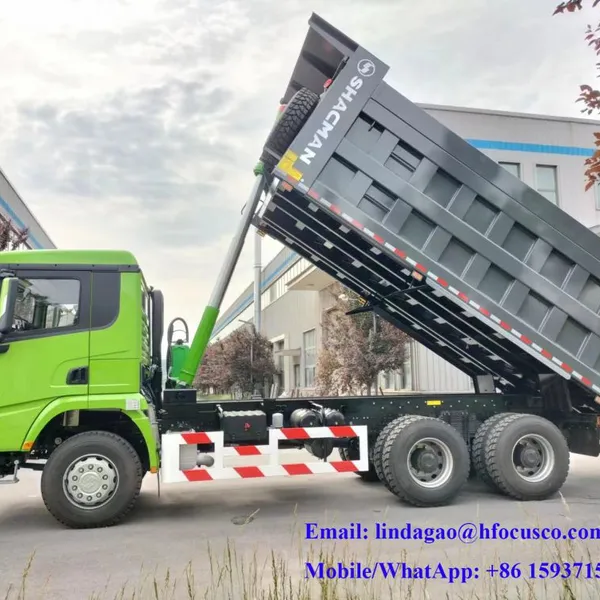

Dongfeng Dump Truck LHD 6X4 Euro 3/Cheap Price Dump Trucks for Transport,China 380/420HP 6X4 8X4 Euro4 HOWO Dump Truck for Philippines
US$ 6000 - 17000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Dongfeng
Place of Origin:
China
Model Number:
FOCUS150
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Road Paving Machinery Bitumen Truck Road Maintenance Sprayer Asphalt Spraying Bitumen Distributor Truck for SaleUS$ 6000 - 49800MOQ: 1 Unit -
Dongfeng Road Paving Machinery Bitumen Truck Road Maintenance Sprayer Asphalt Spraying Bitumen Distributor TruckUS$ 6000 - 99999MOQ: 1 Unit
-
Dongfeng 12 m3 Bitumen Spraying Truck With Cummins E3 Engine 270Hp 4.5~6 m Work Range for Road Asphalt PavingUS$ 6000 - 48500MOQ: 1 Unit
-
5000liters Road Construction Paving Machinery Asphalt Distributor/Spreader Truck for Sale，Asphalt Over Concrete PavementUS$ 6000 - 65800MOQ: 1 Unit
-
China Vacuum Sewage Suction Truck, Vacuum Truck, Sanitation Suction Vehicle, Dry Suction TruckUS$ 12000 - 62500MOQ: 1 Unit
Brand Name
Dongfeng
Place of Origin
China
Model Number
FOCUS150
Condition
New
Transmission Type
Manual
Fuel Type
Diesel
Emission Standard
Euro 2
Drive Wheel
6x4
Dimensions (L x W x H) (mm)
10100*2550*3500 mm
Engine Capacity
6 - 8L
Capacity (Load)
31 - 40t
Horsepower
351 - 450hp
Specifications:
(dump material: high tensile steel / Hardox)
(dump truck opting left hand drive or right hand drive)
( Opting 4x2, 4x4, 6x2, 6x4, 6x6, 8x4, 8x8 dump truck models)
| SINOTRUK HOWO 8x4 Dump Truck - 27.7 CBM | |
| Chassis Model | ZZ3317N3567C |
| Driving Type | Left Hand Driving (Right Hand Driving is optional) |
| Production Year | 2016. New truck. |
| Cabin | HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
| Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Emission Standard: Euro 2 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R, with PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
| Front Axle | HF9, 2x9000 KGS Steering with doubleT-cross section beam |
| Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio:5.73 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 12.00R20, radial tires with one spare tire. Optional: 315/80R22.5 tubeless tires. |
| Fuel Tank | 300 L |
| Cargo Body |
7300*2300*1650 mm, 27.7 CBM, Floor 8 mm side 6 mm, Front lifting syetem |
| Overall Dimension | 10100*2550*3500 mm |
Tips to build your truck body:
| Transport medium Floor(mm) Side(mm) |
| Soil or Stone 8 4 |
| Construction Waste 10 6 |
| Big Ore 12 8 |
| Coal 6 4 |
| Clay 8 4 |
| Grain or Chemical Fertilizer 6 4 |
