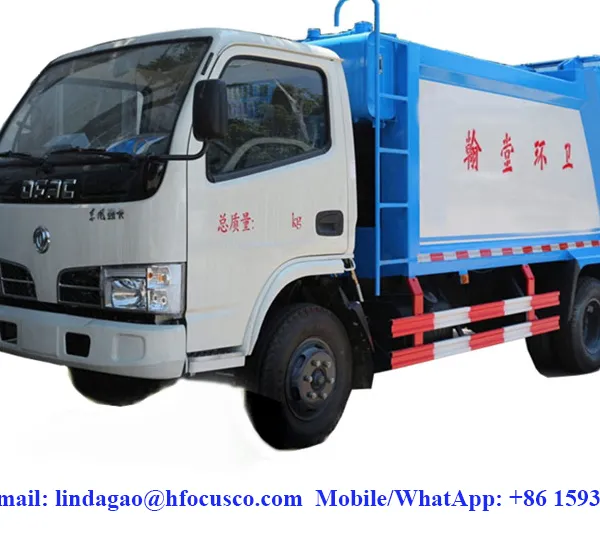

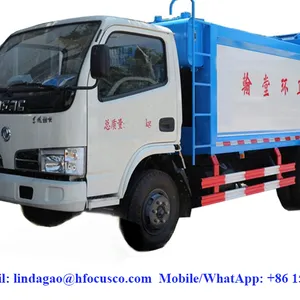

Garbage Compactor Trucks Series 4X2 Dongfeng 5CBM Garbage Compactor Trucks

Garbage Compactor Trucks Series 4X2 Dongfeng 5CBM Garbage Compactor Trucks thumbnail-1
Garbage Compactor Trucks Series 4X2 Dongfeng 5CBM Garbage Compactor Trucks thumbnail-2
Garbage Compactor Trucks Series 4X2 Dongfeng 5CBM Garbage Compactor Trucks thumbnail-3
Garbage Compactor Trucks Series 4X2 Dongfeng 5CBM Garbage Compactor Trucks photo-1
Garbage Compactor Trucks Series 4X2 Dongfeng 5CBM Garbage Compactor Trucks photo-2
Garbage Compactor Trucks Series 4X2 Dongfeng 5CBM Garbage Compactor Trucks photo-3
US$ 10000 - 99999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
FOCUS
Place of Origin:
China
Model Number:
FOCUS 036
Contact Supplier Request Quote Chat Now
Henan Focus Vehicles Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FOCUS
Place of Origin China
Model Number FOCUS 036
Type Compactor
Size 5895 x2045x2210mm
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Transmission Type Manual
Volume 1000 - 3000L
Engine Capacity 2.659L
Fuel Type Diesel
Emission Standard Euro 3
Drive Wheel 4x2
The advantage of4X2 Dongfeng 5CBM Garbage Compactor Truck1. Simple garbage collection method;
2. High compression ratio and large load;
3. Automation: the use of computer control system can set 2 modes of automatic and semi-automatic operation, which can not only reduce the labor intensity of the sanitation workers, but also greatly improve the working environment;
4. Good economy: when the special equipment works, the computer control system controls throttle automatically;
5. Double insurance system: the operation system has dual functions of computer control and manual operation, so as to greatly protect and improve the utilization rate of vehicles;
6. Turnover device: optional turnover device with garbage bucket or hopper.
4X2 Dongfeng 5CBM Garbage Compactor Truck Specification


Overall Dimension

5895 x2045x2210mm

CurbWeight

3550kg

Wheel Base

3300 mm

Cabin

3 Passengers Allowed, with AirConditioner, Radio,

Engine

Yuchai EngineYC4F115-30

Engine horsepower

115HP, EUROIII

Displacement

2.659L

Max Driving Speed

90 km/h

Gear Box

6 Forward Gear, 1 Reverse Gear,

Tire

7.00R16(6 pieces with one spare)

Garbage Bin

Capacity

5 CBM

Material

4mm Carbon Steel for Garbage Bin Body

Design

Whole unit with Leakage Proof Design

Ways of Loading

Rear Loading with optional Bucket Lifting System

Plat Form

2 side for 2 worker for foot transport

Garbage Compact Ratio

1/3 - 1/4

Control System

One control Panel on the back, One Control system in back of Cabin

Main structure

1.Equipped with air-tight dustbin, hydraulic system and operating system.

2.Automatic loading, compressing anddischarging, all handled by 1 person

3. Sewage water collection tank to avoid any pollution during handling.

4. LargePressure,Good Leakage Proof,Convenient Operation

Dependable Security

5. Electrical Control Panel for compacting system.

6.Cycling time＜15s
