Home > Transportation > Specialized Vehicle > Wrecker > Sinotruk 20 Tons Heavy Duty Tow Trucks

Sinotruk 20 Tons Heavy Duty Tow Trucks

Sinotruk 20 Tons Heavy Duty Tow Trucks thumbnail-1
Sinotruk 20 Tons Heavy Duty Tow Trucks thumbnail-2

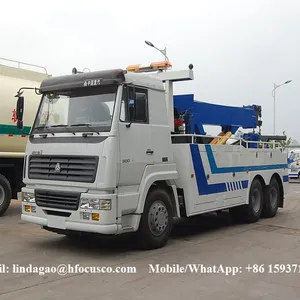

Sinotruk 20 Tons Heavy Duty Tow Trucks thumbnail-3
Sinotruk 20 Tons Heavy Duty Tow Trucks thumbnail-4
Sinotruk 20 Tons Heavy Duty Tow Trucks thumbnail-5
Sinotruk 20 Tons Heavy Duty Tow Trucks photo-1

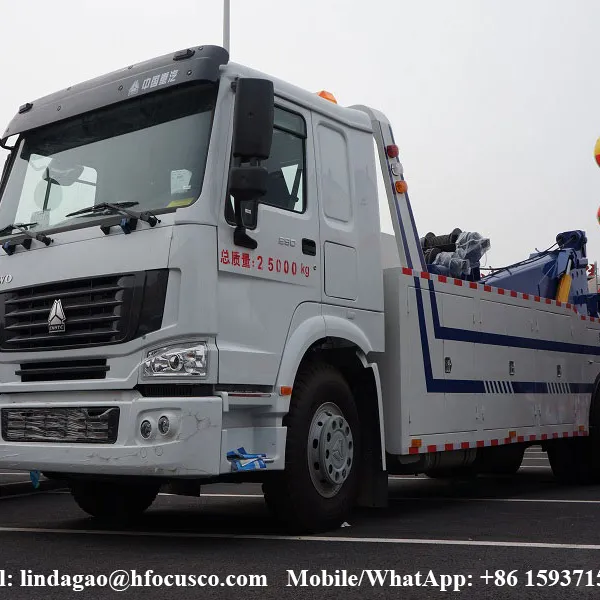

Sinotruk 20 Tons Heavy Duty Tow Trucks photo-2
Sinotruk 20 Tons Heavy Duty Tow Trucks photo-3

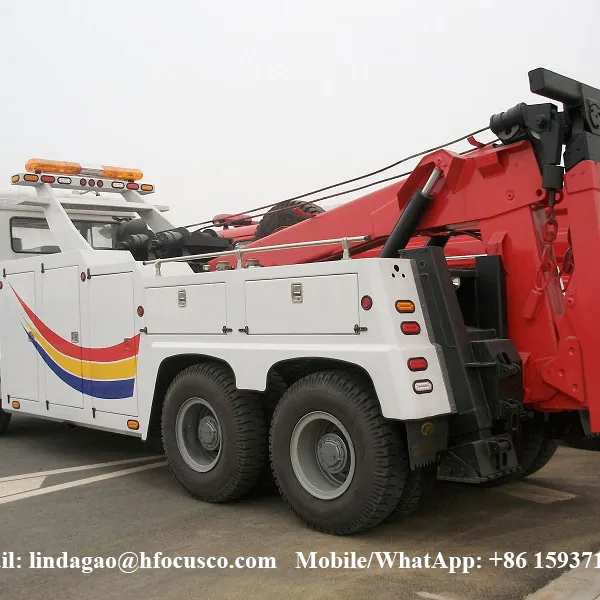

Sinotruk 20 Tons Heavy Duty Tow Trucks photo-4

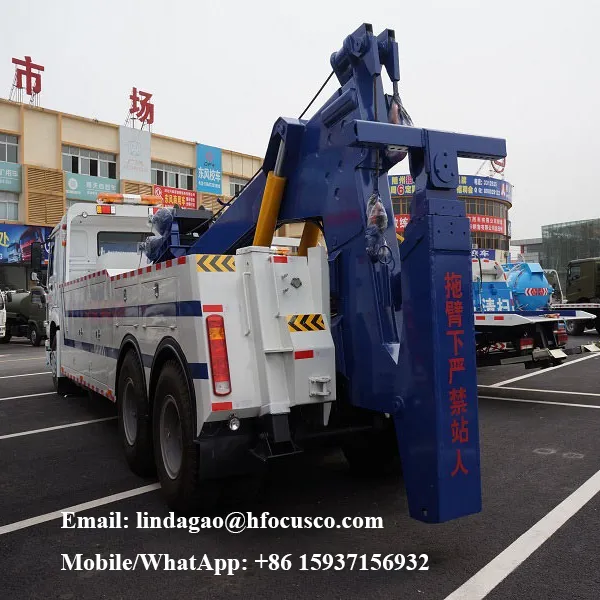

Sinotruk 20 Tons Heavy Duty Tow Trucks photo-5
US$ 88888 - 99999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
FOCUS
Place of Origin:
China
Model Number:
FOUCS 078
Contact Supplier Request Quote Chat Now
Henan Focus Vehicles Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FOCUS
Place of Origin China
Model Number FOUCS 078
Condition New
Transmission Type Manual
Fuel Type Diesel
Emission Standard Euro 3
Dimensions (L x W x H) (mm) 7835*2490*3170 mm
The advantage of Sinotruk 20 Tons Heavy Duty Tow Truck1. Good Quality
2. Lower Price
3. Powerful Traction
4. Convenient Operate System
5. High Safety Factor
6. High Driving Comfort
The specification of Sinotruk 20 Tons Heavy Duty Tow Truck

Dump Truck Model

Sinotruk 20Tons Heavy Duty Tow Truck

Cabin / Passenger Capacity

HW76 cab (One row Seat, flat top and head with bed)
with air chair, with air condition

Chassis

Model

ZZ3257N3447A1

Overall dimensions

7835*2490*3170 mm

G.V.W

25000 kg

Net weight

12220 kg

Design load

30000 kg

Drive type

6X4

Suspension F/R

1500/1560 mm

Wheelbase

3425+1350 mm

Number of axles

3

Axle-load

7000/18000 kg (two rear driving axle)

Approach/Departure Angle

19/30 °

Number of Spring leafs

10/12

Track F/R

2022/1830/1830 mm

Tire ( No. & specification)

12.00R20 radial tires,
10pcs+1pc (opting vacuum tire, nylon tire)

Max speed (Km/h)

≥ 75 km/h

Brake system

Pneumatic braking

Steering

Power steering

Transmission

HW 19710, Mechanical 10 forward + 2 reserve
Clutch Φ430

Engine

Engine model

WD615.69 (EURO 2 emission)

Type of fuel

Diesel

Power

336 hp (247 KW )

Exhaust

9726 ml

Oil tanker

400 L

Tipping specification

Tipping cargo dimensions

5200*2300*1200 mm (L*W*H)
Capacity: 14M3
(optional height Max. 1800 mm)

Dumper material (thickness)

Carbon steel. (Side &back : 6 mm / floor & front 8 mm)

Hydraulic

Middle hydraulic lifting 220mm (40 ton grade)
Optional : Front HYVA lifting cylinder, back tipping type
(Cylinder: Φ200*750)
/ Front local brand lifter/ middle lifter.

Door

Just single rear door. (optional side door)


Product Tags: Heavy Duty Tow Trucks , tow truck , breakdown truck , recovery vehicle , breakdown lorry , trucks , vehicle , transportation vehicle , Emergence vehicle
