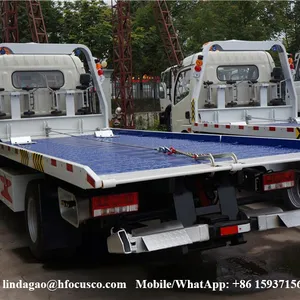

As a provider of car carriers, Our latest offering is a 3-ton flatbed tow truck mounted on a reliable JAC truck chassis. This flatbed tow
truck is designed to make your work smoother, more efficient, and enjoyable.
We understand the importance of a sturdy body and a powerful towing capacity in a recovery truck, which is why we have used
high-quality steel and a robust 163hp engine in our carrier. With these features, you can quickly clear up any vehicles blocking
the road and keep the traffic flowing.
Our flatbed tow truck is not only designed for functionality but also for aesthetics. The sleek design and high-quality finish of the
carrier are sure to make a statement on the road. We are committed to providing our customers with a flatbed tow truck that not only
meets their needs but also exceeds their expectations.
At our company, we believe that customer satisfaction is of utmost importance, which is why we ensure that every flatbed tow truck
we provide is thoroughly tested and inspected to meet the highest standards. Our team of experts is always available to answer any
questions you may have and provide you with the best service possible.
SPECIFICATION
Model |
FB03HFC163L6 |
Chassis |
JAC Junling 4X2Drive LHD; Yunnei D30TCIF2 163hp Diesel Engine; Xingrui LC6T46 6 speed Manual Transmission |
Cabin |
Day Cab; Rated Nr. of Passengers: 3 |
Overall Size |
7395,7980×2310,2420,2550×2380,2430mm (L×W×H) |
Wheelbase |
3845,4200 mm |
Front/Rear Wheel Tread |
1695,1615mm/ 1600,1785mm |
Front/Rear Overhang |
1051/2499,1051/2729,1075/2705,1120/2660,1075/2475,1120/2430mm |
Gross Vehicle Weight |
8280kg |
Tare Weight |
5300,5700kg |
Front/Rear Axle Rating |
3000kg/5280kg |
Approach/Departure Angle |
25°/11° |
Engine |
Yunnei D30TCIF2, Diesel Engine; 4 Cylinders In-line, 3L; China Class Level VI Emission |
Engine Output Power/Speed |
120kW(163hp)/2800rpm |
Max Speed |
100km/Hour |
Transmission |
Xingrui LC6T46 MT; Forward, 6 Speed/Reverse, 1 Speed |
Tires |
7.50R16LT 14PR,8.25R16LT 14PR; 6+1 Spare Tire |
Truck Accessories |
1nos of Toolbox |
Deck: |
|
Deck Size (Inside) |
5400*2220mm (Vary depending on the chassis) (L×W) |
Max Load Rating |
3000kg |
Vehicle Towing |
Two cars |
|
Deck Work Distance (Working Motion) |
3100mm |
|
Deck Height Above Ground (Ground Clearance) |
1050mm (Vary depending on the chassis) |
Deck Min Tilt Angle |
3° |
Wheel Lift: |
|
|
Rated Capacity Fully Retracted |
2570kg |
|
Rated Capacity Fully Extended |
1100kg |
Rear Towing Distance |
2540mm |
Effective Length of Arm |
1640mm |
Telescopic Distance |
1340mm |
Positive Tilt Angle |
7° |
Negative Tilt Angle |
-9.5° |
Winch: |
|
Winch Qty |
1pcs |
Winch Type: |
Planetary |
Winch Power Mode |
Hydraulic |
Winch Rated Line Pull |
40kN |
Winch Diameter |
φ110mm |
Winch Cable Diameter |
φ11mm |
Winch Cable Length |
25m |
Cable Minimum Line Speed |
5m/min |
Hydraulic System |
Haizhanli oil cylinder, Hefei Wany hydraulic pump, Italy/Turkey Hyde hydraulic valve; Suizhou power take-off |
Towing Accessories: |
|
Strap |
4nos |
Slide-In L-Arms |
1set |
Frame Forks |
1set |
Fork Receiver |
1set |
Chain Hook |
1nos |
Auxiliary Wheel |
2nos |
