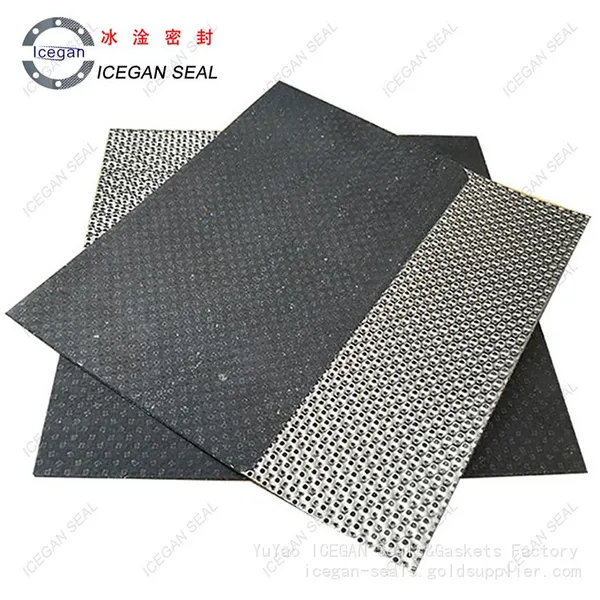

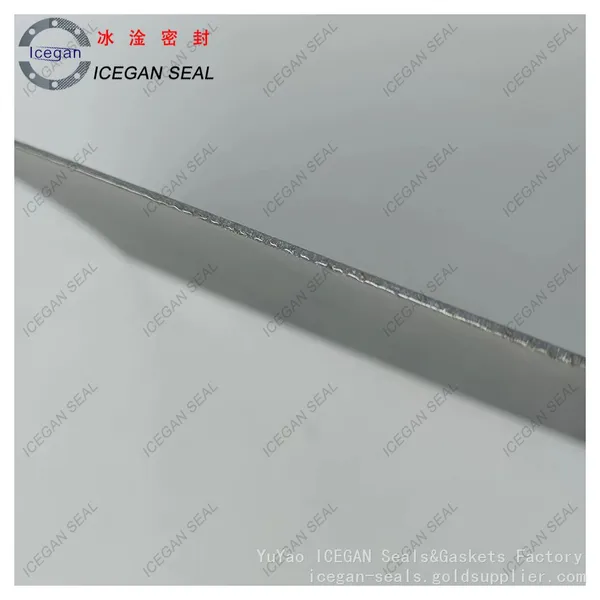

IG-016 Reinforced Non-asbestos Composite Sheet

IG-016 Reinforced non-asbestos composite sheet is to use two sides non-asbestos copy board and middle 0.18 ~ 0.25 mm carbon steel tinplate sprint composites. The product has good properties, such as swelling, sealing and long service life. Composite structure: non-asbestos copy paper + tinplate tanged sheet + non-asbestos copy paper.

Quick Details

 Place of Origin:Ningbo, China (Mainland)

 Brand Name:ICEGAN

 Model Number:IG-016

 Material:non-Asbestos with inside metal,non-asbestos and Metal

 Shape:Flat Gasket

 Standard or Nonstandard:Standard

 Type:non-asbestos Gasket Sheet

Technical parameters:

Density: > 1.40 g/cm3

Compression ratio: 8% - 12%

Resilient rate: > 50%

75 # aviation kerosene (23 ~ 30 ℃ (5 h)

Oil absorption rate:<10%

Thickening rate:<10%

Soak 20 # aviation lubricating oil (150 ℃ (5 h)

Oil absorption rate:<15%

Thickening rate:<10%

Regular size:

Length: 500 mm, 1000 mm, 1200 mm, 1500 mm

Width: 500 mm, 512 mm, 800 mm, 1000 mm

Thickness: 1.0 -- 2.5 mm

Reinforced non-asbestos composite sheet can be cut into various types of gaskets, mainly used in automobile, agricultural machinery, motorcycles, engines, water pumps and air conditioners, etc., can also be used for high strength gasket and the cylinder gasket, etc.

Packaging & Delivery

Packaging Details: 1000-1500 KGS per wooden pallet,or 50 KGS per wooden case,or your requirements.

Delivery Detail: 15-30 days after received your deposit
