IG-010 Double layer tinplate Single sided tanged sheet graphite composite sheet
- 10000 Ton / Tons per Month
- ningbo
- T/T
- IG-011Reinforced asbestos composite sheet
- IG-012 double layer tinplate tanged sheetasbestos composite sheet
- IG-013 tinplate Single sided tanged sheet asbestos composite sheet
- IG-014 Double layer tinplate Single sided tanged sheet asbestos composite sheet
- IG-015 Asbestos - coated graphite composite sheet
- IG-016 Reinforced non-asbestos composite sheet
Product Details
Brand Name: | IG | Place of Origin: | China | Model Number: | IG-010 |
Thickness: | 1.0-3.0mm | Grade: | Industrial Grade | Type: | Reinforced Sheet |
Application: | the manufacture of all kinds of sealing gaskets, such as automobile engine with cylinder pad, chemical pipe with flange gasket sealing gasket and a variety of mechanical joints. | C Content (%): | 95-99.99% |
Product Description

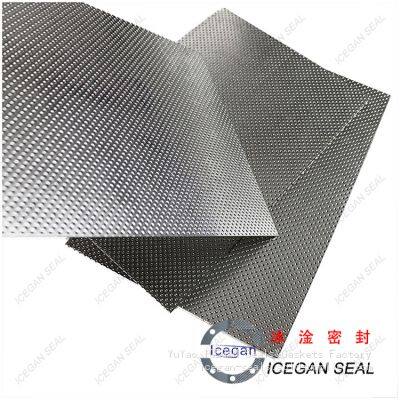

IG-010 Double layer tinplate Single sided tanged sheet graphite composite sheet
Graphite reinforced composite sheet for the graphite plate and punching tin after rolling composite forming, basic structure is:
tinplate Single sided tanged sheet + graphite paper + tinplate Single sided tanged sheet.
Graphite reinforced composite sheet with super seal effect, high temperature resistance, corrosion resistance, long service life and environmental protection, etc. Mainly used in the manufacture of all kinds of sealing gaskets, such as automobile engine with cylinder pad, chemical pipe with flange gasket sealing gasket and a variety of mechanical joints. At the same time has good lubricity, non-stick cylinder, easy to repair replacement characteristics.
Quick Details
Place of Origin:Ningbo, China (Mainland)
Brand Name:ICEGAN
Model Number:IG-010
Material:graphite with inside metal,graphite and Metal
Shape:Flat Gasket
Standard or Nonstandard:Standard
Type:graphite Gasket Sheet
The performance parameters
Density: 1.3 to 1.5 g/cm after
Compression ratio: 5% 15%
Resilient rate: 40% or higher
Temperature: - 240-650 ℃
Transverse tensile strength: 30 mpa or greater
Thickening of oil absorption rate: 15% or less (temperature 150 ℃, keep 5 hours) in ASTM 3 oil
Thickening of oil absorption rate: 15% or less (temperature of 21 ℃ ~ 30 ℃, keep 5 hours) in ASTM B kind of fuel
Thickening of oil absorption rate: 15% or less (temperature of 21 ℃ ~ 30 ℃, in ethylene glycol: water (1:1), maintain 5 hours)
Regular size:
500 * 500 mm, 500 * 1000 mm
Thickness:
1.0 mm and 1.2 mm, 1.5 mm, 1.8 mm
Other size can produce according to customer's need
Packaging & Delivery
Packaging Details: 1000-1500 KGS per wooden pallet,or 50 KGS per wooden case,or your requirements.
Delivery Detail: 15-30 days after received your deposit
