IG-009 Tinplate Single Sided Tanged Sheet Graphite Composite Sheet

IG-009 tinplate Single sided tanged sheet graphite composite sheet

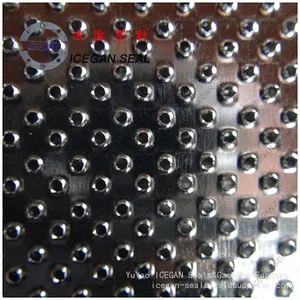

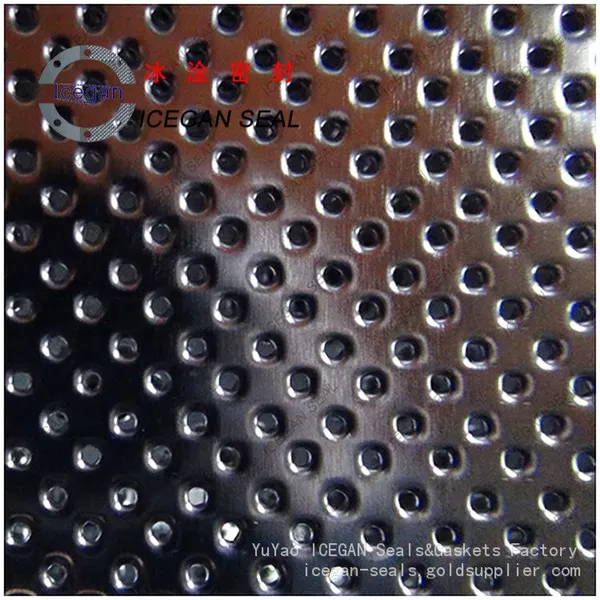

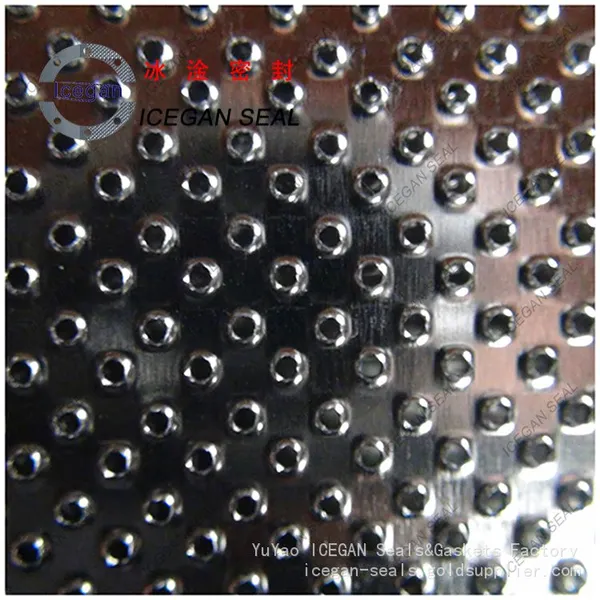

Graphite reinforced composite sheet for the graphite plate and punching tin after rolling composite forming, basic structure is: tinplate Single sided tanged sheet + graphite paper.

Graphite reinforced composite sheet with super seal effect, high temperature resistance, corrosion resistance, long service life and environmental protection, etc. Mainly used in the manufacture of all kinds of sealing gaskets, such as automobile engine with cylinder pad, chemical pipe with flange gasket sealing gasket and a variety of mechanical joints. At the same time has good lubricity, non-stick cylinder, easy to repair replacement characteristics.

Quick Details

 Place of Origin:Ningbo, China (Mainland)

 Brand Name:ICEGAN

 Model Number:IG-009

 Material:graphite with inside metal,graphite and Metal

 Shape:Flat Gasket

 Standard or Nonstandard:Standard

 Type:graphite Gasket Sheet

The performance parameters

Density: 1.3 to 1.5 g/cm after

Compression ratio: 5% 15%

Resilient rate: 40% or higher

Temperature: - 240-650 ℃

Transverse tensile strength: 30 mpa or greater

Thickening of oil absorption rate: 15% or less (temperature 150 ℃, keep 5 hours) in ASTM 3 oil

Thickening of oil absorption rate: 15% or less (temperature of 21 ℃ ~ 30 ℃, keep 5 hours) in ASTM B kind of fuel

Thickening of oil absorption rate: 15% or less (temperature of 21 ℃ ~ 30 ℃, in ethylene glycol: water (1:1), maintain 5 hours)

Regular size:

500 * 500 mm, 500 * 1000 mm

Thickness:

1.0 mm and 1.2 mm, 1.5 mm, 1.8 mm

Other size can produce according to customer's need

Packaging & Delivery

Packaging Details: 1000-1500 KGS per wooden pallet,or 50 KGS per wooden case,or your requirements.

Delivery Detail: 15-30 days after received your deposit
