IG-003 graphite reinforced composite sheet (stainless steel)

IG-003 graphite reinforced composite sheet (stainless steel)

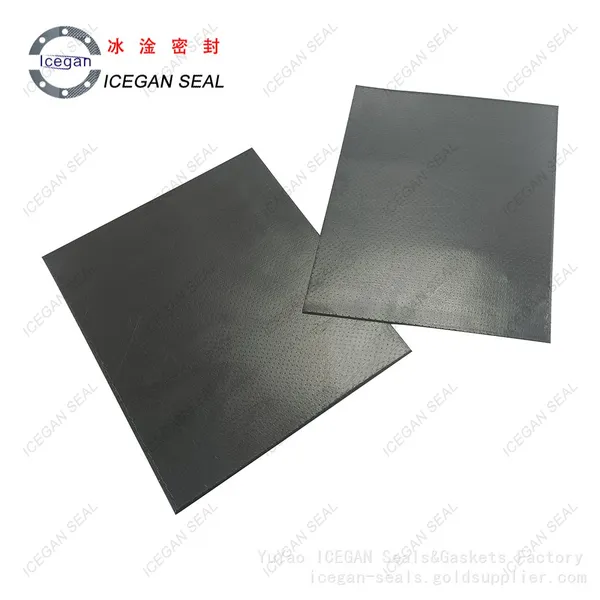

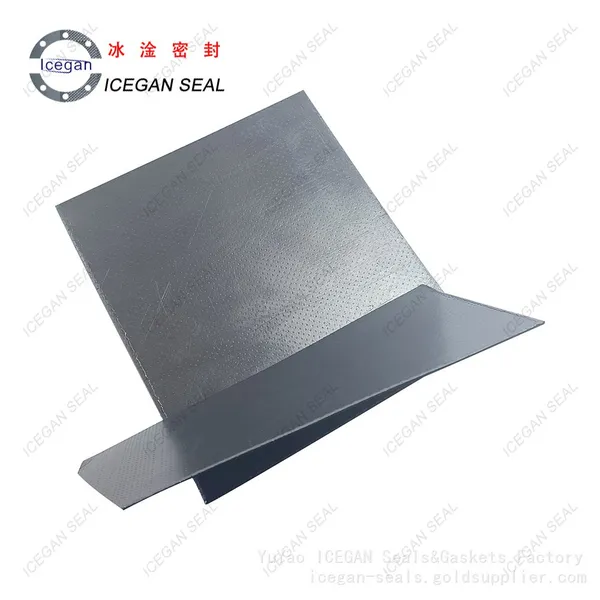

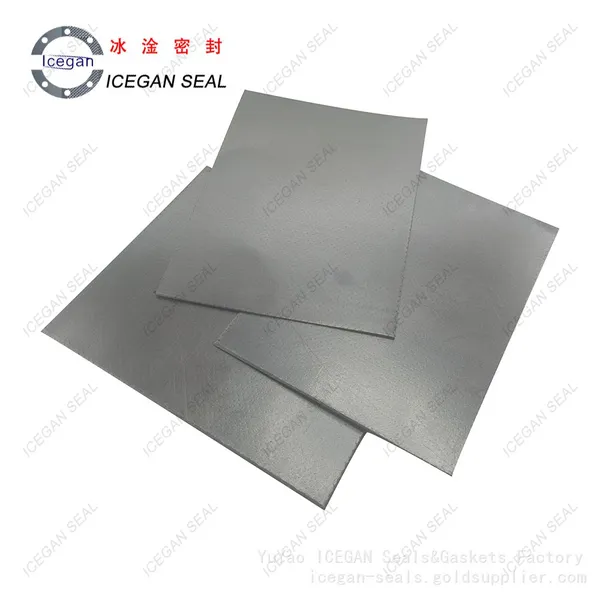

Graphite reinforced composite sheet for the graphite plate and punching tin after rolling composite forming, basic structure is: graphite foil + stainless steel (304 l, 316 l) tanged sheet + graphite foil

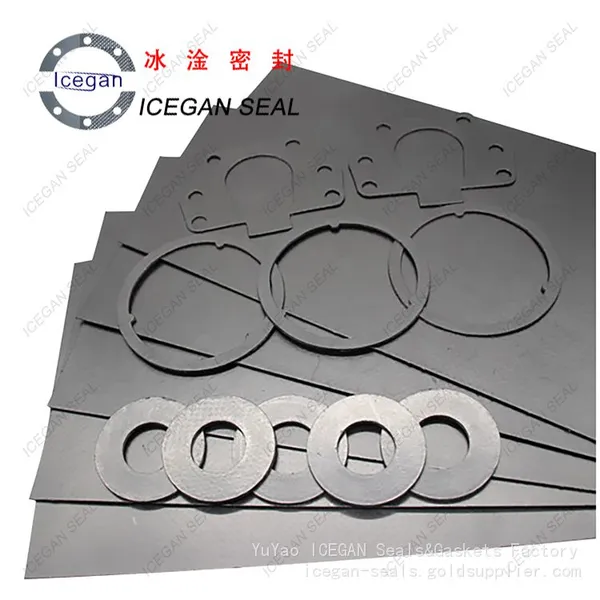

Graphite reinforced composite sheet with super seal effect, high temperature resistance, corrosion resistance, long service life and environmental protection, etc. Mainly used in the manufacture of all kinds of sealing gaskets, such as automobile engine with cylinder pad, chemical pipe with flange gasket sealing gasket and a variety of mechanical joints. At the same time has good lubricity, non-stick cylinder, easy to repair replacement characteristics.

Quick Details

 Place of Origin:Ningbo, China (Mainland)

 Brand Name:ICEGAN

 Model Number:IG-003

 Material:graphite with inside Stainless steel,graphite and Stainless steel

 Shape:Flat Gasket

 Standard or Nonstandard:Standard

 Type:graphite Gasket Sheet

The performance parameters

Density: 1.3 to 1.5 g/cm after

Compression ratio: 30% ~40%

Resilient rate: 15% ~30%

Permeability (cm3 / min) : ≤0.8

Pressure (N/was) : ≥48

Temperature: - 200-650 ℃

Regular size:

500 * 500 mm, 500 * 1000 mm, 1000 * 1000 mm

Thickness:

1.0 mm and 1.2 mm, 1.5 mm, 2.0 mm

Other size can produce according to customer's need

Packaging & Delivery

Packaging Details: 1000-1500 KGS per wooden pallet,or 50 KGS per wooden case,or your requirements.

Delivery Detail: 15-30 days after received your deposit
