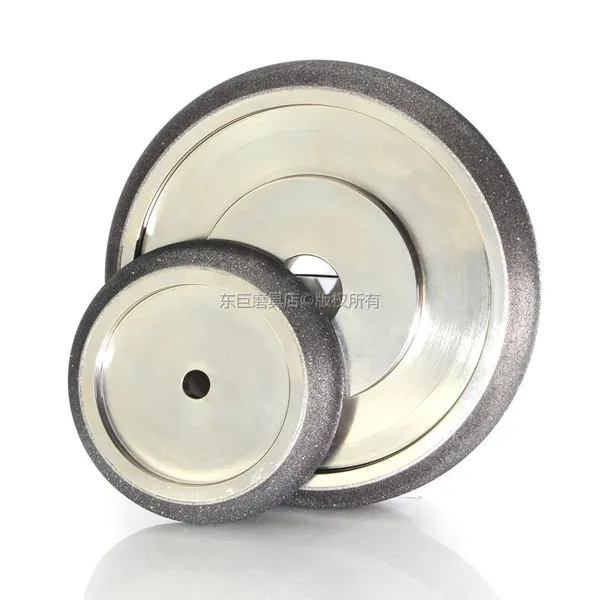

Electroplated CBN Grinding wheel for band saw blade sharpening
- 3221 Piece / Pieces per Month
- shenzhen
- T/T
- 10 days
- 1V1 taper edge diamond coated abrasive wheel for tungsten carbide milling tool sharpening with 30 45 60 degree angle
- Electroplated diamond coated abrasive grinding wheel of round n straight edge for 3~12mm glass shape edging machine
- round edge Electroplated diamond grinding wheels for carbide stone agate grinding
- diamond coated precision grinding wheels for optical lens glass grinding customized diamond tools China supplier
- Customized electroplated diamond grinding wheel CBN abrasive wheels Dongju super abrasive products
- V groove grinding wheels or glass edging beveling machine pencil edge abrasive wheel arc shape medium grit
Product Details
Brand Name: | dongju | Place of Origin: | China | Model Number: | 150D*22.2T*20H CBN120P |
Size: | 150*22*20 | Shape: | Other, ARCH | Hardness: | S |
Viscosity: | Electroplated | Bonding Agent: | Metal | Abrasive: | Other, CBN |
Product Description

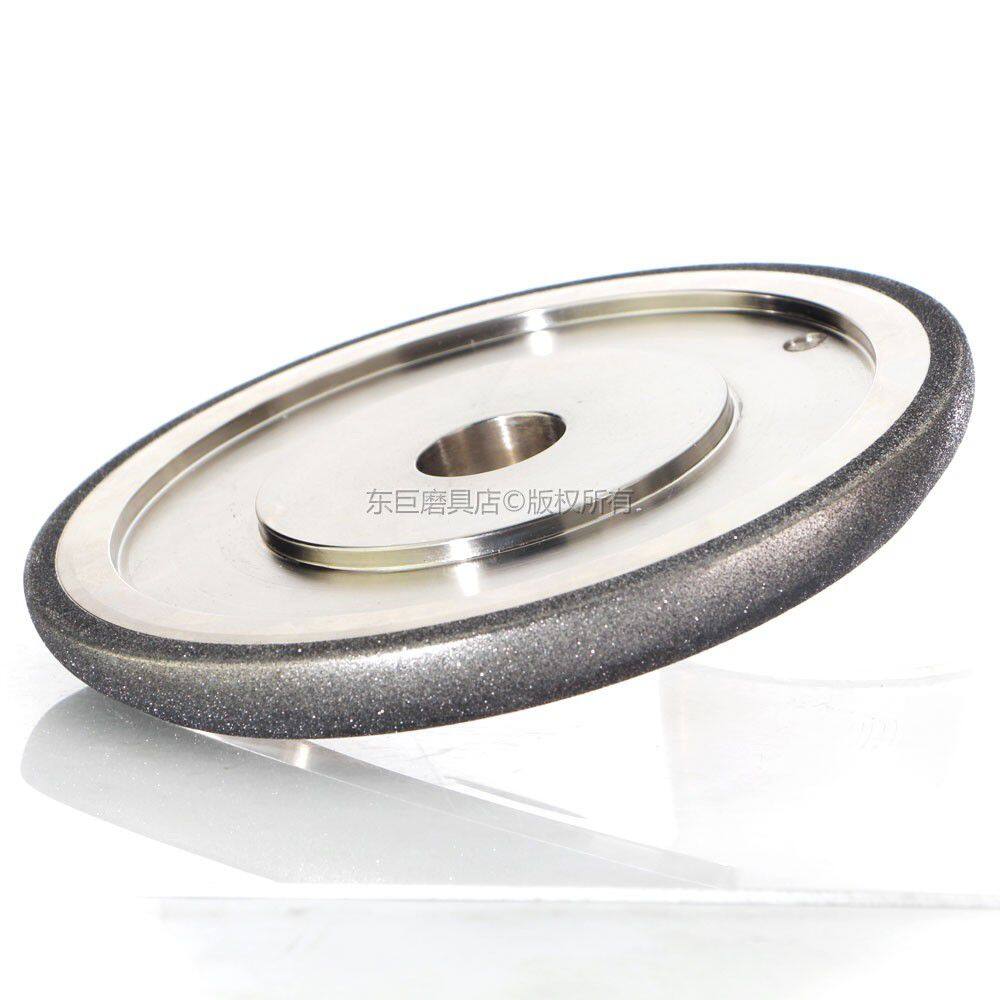

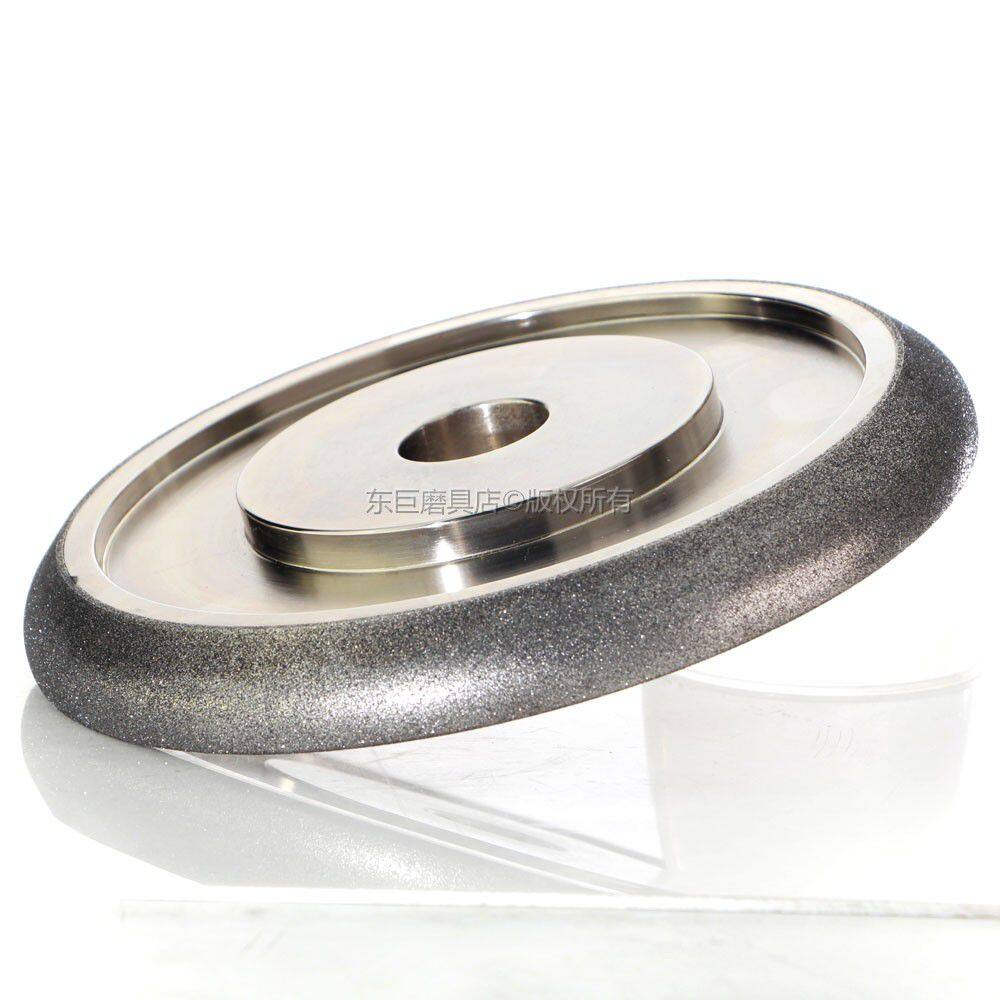

The electroplated CBN grinding wheel is specially used for the grinding of band saw chain. The electroplating process on the surface of the CBN plated steel substrate obtains precision, ensures high-quality tooth shapes, and make the band saw chain blade sharper.
Item name: grinding wheel for band saw blade sharpening
Abrasive:CBN
Model Number:1F1
Bond:Electroplated
Body:45#Steel

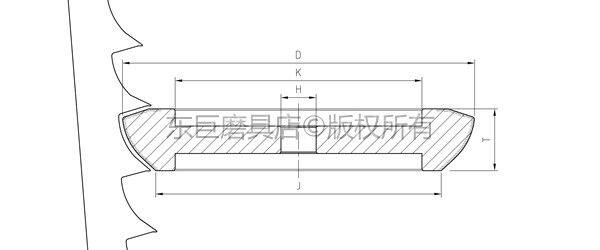

Diameter(D):127mm(5 inch)/ 150mm(6 inch)/ 203mm(8 inch)
Thickness(T):22.2mm
Center Hole(H):12.7mm/20mm/25.4mm/32mm
Grit:B126 120/140#

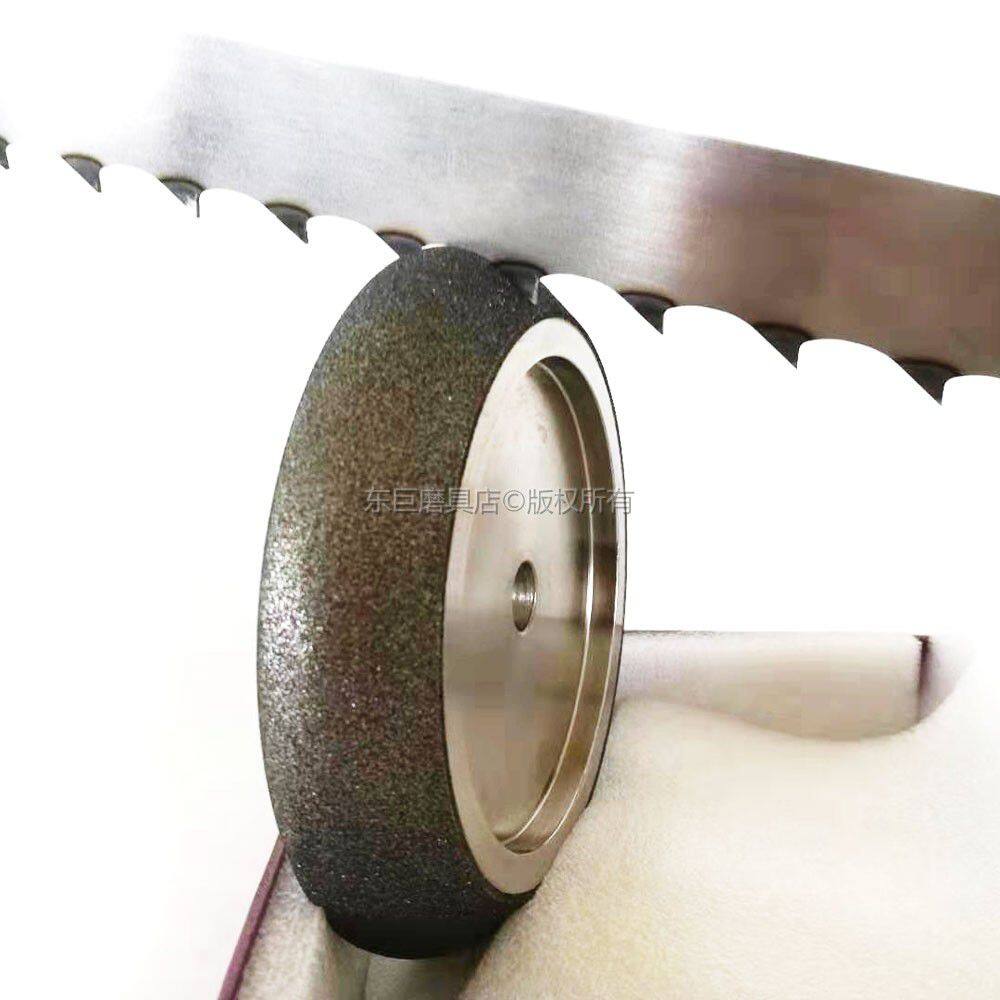

Usage:The electroplated CBN grinding wheel is specially used for the grinding of the band saw chain. The electroplating process on the surface of the CBN plated steel substrate obtains precision, ensures high-quality tooth shapes, and make the band saw chain blade sharper.

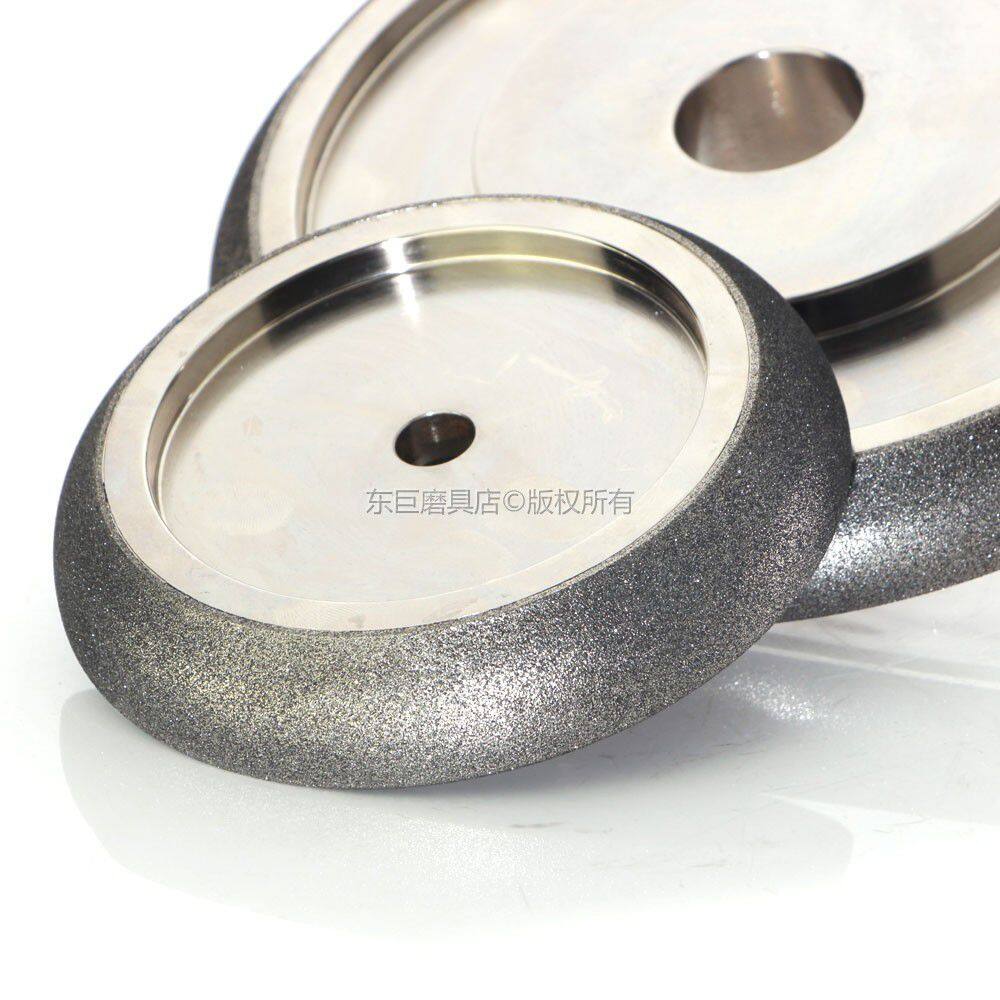

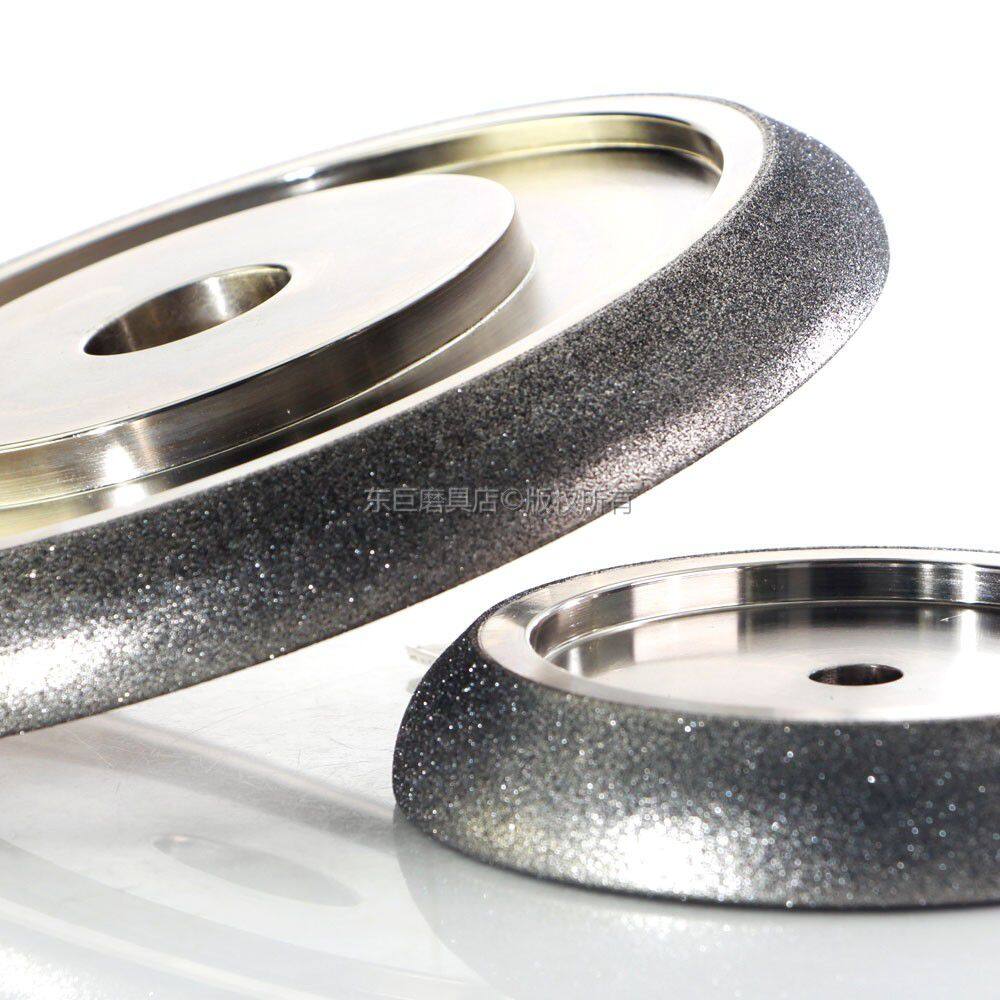

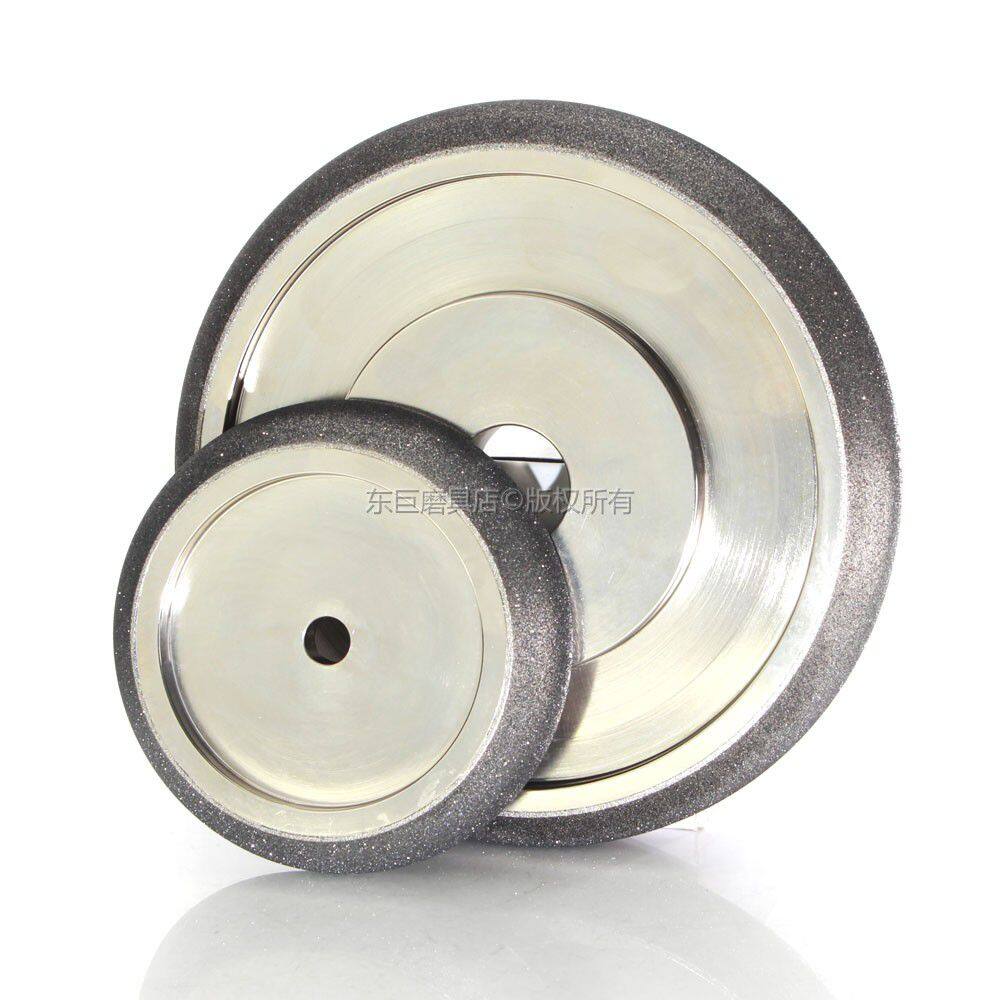

Following is the conventional size of this type of grinding wheel:
5 inch:D127mm-T22.2mm-H12.7mm
6 inch:D150mm-T22.2mm-H20mm
8 inch:D203mm-T22.2mm-H32mm
Note:Leave message discuss with us before placing order
Conventional sizes are in stock all year round, and CBN grinding wheels can be customized according to the customer’s machine band saw blade.

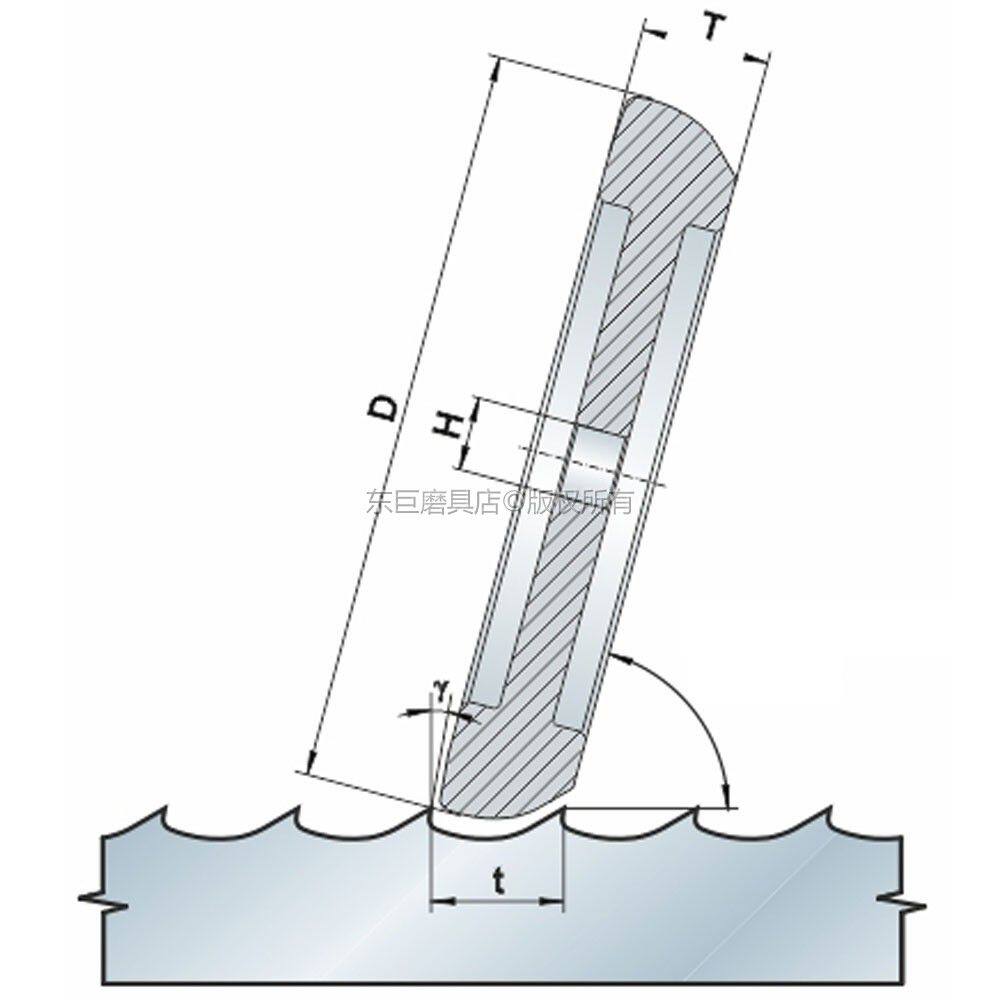

Characteristics of different angle band saw wheels:
10/30: Commonly used universal grinding wheel profiles, softwood and hardwood band saws can be used;
9/29: Band saw or hardwood band saw for winter wood cutting;
13/29: Band saw or softwood band saw for summer wood cutting;
4/32: used to cut band saws for very hardwood;
7/34: For hardwood, cutting band saw
Main Features
1. Sharp: Fast sharpening the band saw blades with exact profile and excellent finishing
2. Long Life: Super long life than traditional abrasive wheels
3. Cost-effective: Unit costs is much lower.
4. 10/30, 9/29, 13/29, 4/32, 7/34 degrees and non-standard degrees are available
5. Oil cooling is recommended
6. Exact balancing each wheel
7.No loss of profile during grinding, no dressing required
8. Wheel cores can be recycled and replated, thus reducing waste
9. Suitable for Vollmer, Wood-Mizer, Westron, Loroch, Timber Wolf, Timbery, Norwood
