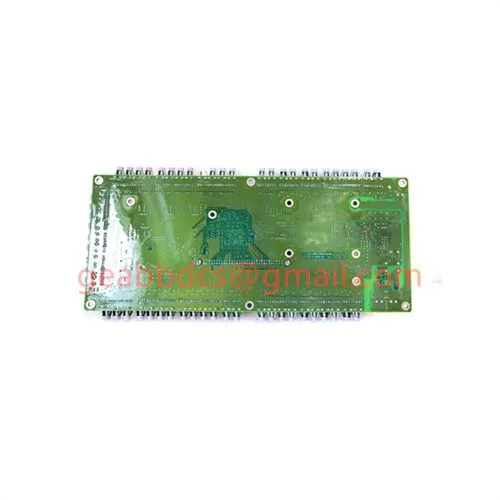

Help CenterSYN5201A-Z V277 Control System
Related Products
DCS companion is specially designed for verifying thermal instruments and DCS systems, with fully digital operation and extremely convenient use. This product is technologically compatible with advanced foreign technologies
Stay synchronized. It is an updated product of the analog thermal instrument calibrator (DC signal source). It can output power, voltage (10V, 100mV), resistance, frequency, and on/off signals, and can also simulate the output of eight types of thermocouples and four types of thermal resistors; It can measure current, voltage (10V, 100mV), resistance, frequency, and the on-off of nodes in the DCS system.
DCS partners can be equipped with thermocouples (S, R, B, K, N, E, J, T) or thermal resistors (Pt100, Pt10, Cu100, Cu50) for temperature measurement. Among them, except for the on/off signal, any other output quantity has a step output function in both percentage and engineering units, as well as a fine adjustment output function for step points. It can be used in conjunction with our company's DCS companion software to automatically calibrate various thermal secondary instruments.
2、 Product Features
All outputs, measurements, and 24V power outputs are isolated;
Measurement with 7-digit display, high accuracy and good stability;
Output 6-bit display, with step output function and fine-tuning output function based on its set value. It is very convenient to detect the pointer type thermal secondary instrument and automatically memorize the set step parameters, without losing power;
Real time clock;
Adjustable amplitude of frequency output;
Both analog thermocouple output and thermocouple temperature measurement have automatic and manual cold junction compensation methods, and analog thermocouple output also has a thermal resistance automatic compensation method;
Adopting a graphical dot matrix LCD display, with all Chinese menus and a user-friendly display interface;
Built in nickel hydrogen rechargeable battery and charging controller, automatic charging management. Equipped with automatic shutdown function for battery undervoltage;
AC/DC dual purpose, automatic seamless switching;
The calibration of all items is completed by button operation, without any hardware adjustment;
Equipped with RS-232 interface, open communication protocol, and rich instruction system, it can be used in conjunction with our company's dedicated software to complete automatic verification;
When measuring temperature using thermocouples or thermal resistors, or simulating the output of thermocouples or thermal resistors, the values of temperature and electrical signals can be displayed simultaneously.
Contact information: 15359293870
WhatsApp:+86 15359293870
Contact person: KELLY
Email: geabbdcs@gmail.com 386353502@qq.com
Official website:
Application requirements: However, in the practical application of DCS automatic control systems, due to their mostly hierarchical structure design, it is easy for the system to fail to operate effectively due to low compatibility of software and hardware, functional defects, etc. It is necessary to scientifically standardize software and use computer hardware with more flexible and user-friendly configurations to provide platform support. In addition, the real-time data communication, continuous monitoring of data parameters, and precise control requirements of the system have put forward higher requirements for the data processing ability, transmission rate, storage capacity, and flexible scalability of the central control computer hardware. And the North China Industrial Control ATX-6151 industrial motherboard meets its application needs.
North China Industrial Control ATX-6151 Industrial Main Board//
North China Industrial Control is an industry-specific embedded computer product provider that can provide customized production services for X86 architecture and ARM architecture diversified embedded motherboards, embedded quasi systems/complete machines, and industrial tablets for customers in multiple industries. Focusing on industrial automation, North China Industrial Control has launched multiple high-performance embedded products, including ATX-6151.
The ATX-6151 is based on the 12th generation Intel Core processor, further amplifying its advantages in high-performance computing, data throughput, and graphics processing:
Supporting the Intel Q670E chipset and the 12th generation Intel Core i3/i5/i7/i9 processor, with higher single threaded and multi threaded processing performance;
Support DDR5 4800MHz, support 4 * UDIMM memory slots, and the entire board can reach up to 128GB;
Supporting 4 * SATA 3.0, 1 * M.2 M KEY 2280 PCIe x
