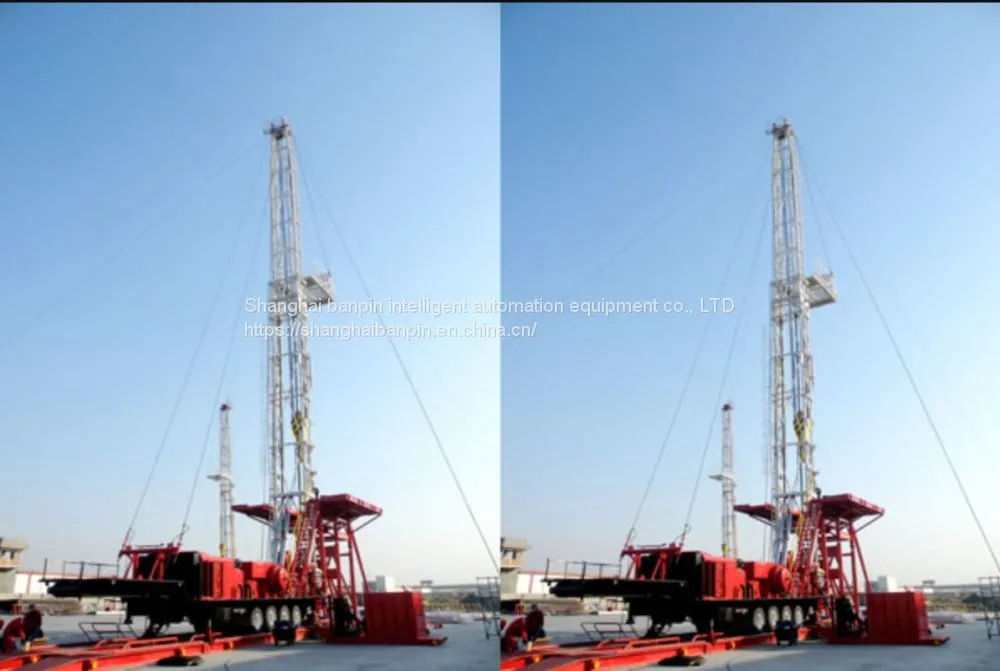

The ZJ30T/1800 trailer-mounted hydraulic drilling rig is a versatile solution for oil and gas drilling operations with a maximum drilling depth of 3000 meters. It boasts a range of features and benefits that make it an excellent choice for various drilling applications.
Key Features:
Efficient Design: This rig is designed with a focus on practicality, ensuring a reliable and cost-effective drilling solution. Its well-thought-out layout and dependable operation performance make it a valuable asset for the industry.
Robust Power System: The hydraulic drilling equipment is powered by a dependable Caterpillar diesel engine, providing the necessary strength and reliability for demanding drilling tasks.
Cost-Effective Transmission: The rig is equipped with an Allison S series hydraulic transmission case, which not only ensures low operational and maintenance costs but also enhances overall efficiency.
Mobility: Featuring a special four-axle semi-trailer chassis, this rig is swift and cost-efficient to move to various drilling locations, making it an adaptable choice for changing work sites.
Brake Options: The main draw-works brake can be configured as either a disc brake or a belt brake, while the auxiliary brake is a pneumatic water-cooled disc brake, ensuring enhanced safety during drilling operations.
Description: The ZJ30T/1800 trailer-mounted drilling rig is designed with a focus on mobility and efficiency. All key components, including the power system, draw-works, mast, traveling system, and transmission system, are conveniently placed on the semi-trailer chassis. During transportation, a tractor effortlessly tows the trailer to the oil field, significantly improving drilling operation transportation efficiency and conserving valuable transportation resources.
Applications: This diesel-driven semi-trailer drilling rig is a product of our company, offering a wide range of drilling depths from 1500m to 4000m and maximum static loads from 1350KN to 2250KN. It is ideally suited for open oil fields with well-maintained road conditions. This trailer-mounted drilling equipment is characterized by its capacity to handle heavy workloads, deliver reliable performance, exhibit strong cross-country mobility, provide convenient transportation, and offer cost-effective operation and mobility. It is particularly well-suited for middle and shallow well drilling operations.
Technical Parameter of Trailer Mounted Hydraulic Rig
| Item | Name | Parameter |
| 1 | Drilling depth(41/2″Drill Pipe) m | 3000 |
| 2 | Heavy repair depth(31/2 "Drill Pipe) (m) | 6500 |
| 3 | Max. hook load KN | 1800 |
| 4 | Hook speed (m/s) | 0.2 to 1.4 |
| 5 | Mast (m) | 38/39 |
| 6 | Mast type | A-mast |
| 7 | Engine power (kW) | 2 × 403 |
| 8 | Hydraulic transmission case | 2×M5620AR |
| 9 | Transmission type of trailer mounted hydraulic rig | Hydraulic + mechanical |
| 10 | Traveling system | 6 × 5 |
| 11 | Main rope diameter (mm) | φ32 |
| 12 | Hook block model | YG180 |
| 13 | Swivel model of hydraulic drilling equipment | SL225 |
| 14 | Rotary table model | ZP275 |
| 15 | Chassis model | XDP70/14×8 |
| 16 | Approach / departure angle | 26°/18° |
| 17 | Min. ground clearance (mm) | 311 |
| 18 | Overall dimension (m) | 22.3 × 3.2 × 4.5 |
