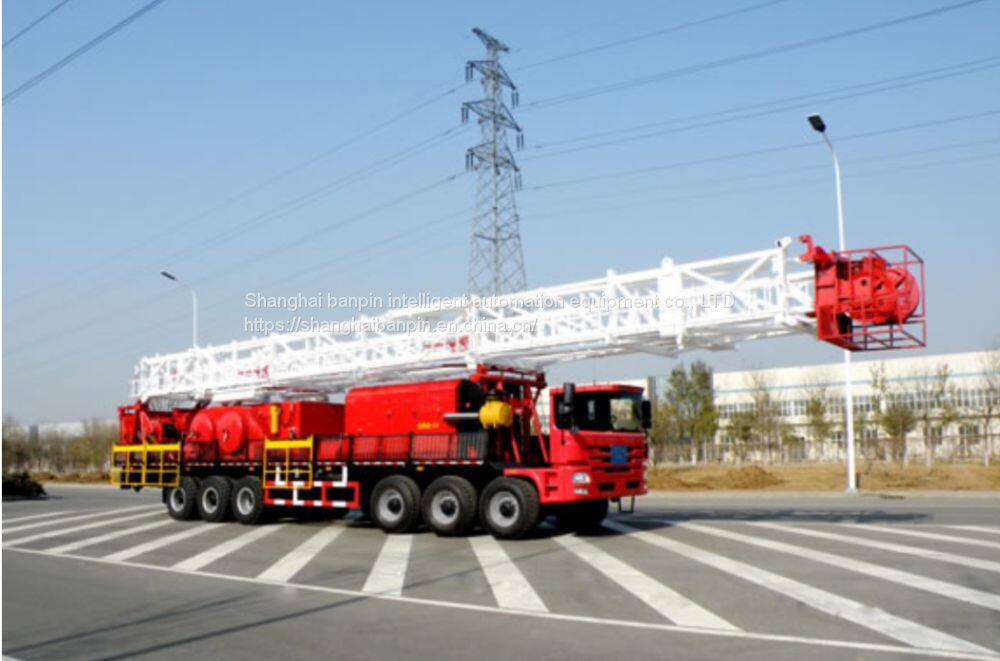

ZJ20/1580CZ Truck-Mounted Drilling Rig


Description

The ZJ20/1580CZ truck-mounted hydraulic rig is specifically designed for various drilling operations. It is well-suited for drilling shallow wells with depths of less than 2000 meters, performing heavy repairs on oil and gas wells, and conducting water well drilling operations. This mechanical drill rig, mounted on a light truck, has been independently developed by our company and has undergone years of technological innovation and continuous improvement, making it a mature and reliable choice for drilling applications.


Key Features

1. Versatile Application: This rig is the minimum level model for drilling shallow wells and is suitable for drilling and work-over operations. It can also be utilized for water well drilling operations.

2. Engine Options: Operators can choose between CAT and Cummins series diesel engines, providing flexibility and reliable power sources.

3. Hydraulic Transmission: The truck-mounted hydraulic rig is equipped with the ALLISON hydraulic transmission box, and there is an option for a domestic hydraulic transmission box.

4. Robust Chassis: With its 12x8 petroleum-purposed vehicle chassis, the rig boasts excellent cross-country capability, ensuring it can handle various terrains.

5. Brake Systems: The main brake for the draw-works can be either a band brake or a disc brake, while the auxiliary brake can be an Eaton pneumatic water-cooled disc brake or a water brake.

6. Innovative Technologies: By incorporating several patented technologies, this mechanical drill rig offers a well-thought-out layout, reliable operational performance, and cost-effective transportation. It is also easy to install and maintain on-site.


Technical Parameters of the Truck-Mounted Hydraulic Rig


Item Name Parameter

1 Drilling Depth (41/2″ Drill Pipe) (m) 2000

2 Overhaul Depth (31/2″ Drill Pipe) (m) 5500

3 Max. Hook Load (KN) 1580

4 Hook Speed (m/s) 0.2 to 1.4

5 Mast (m) 35

6 Mast Type A-Mast

7 Engine Power (kW) 470

8 Hydraulic Transmission Box M6620AR

9 Transmission Type of Mechanical Drill Rig Hydraulic + Mechanical

10 Traveling System 5 × 4

11 Main Rope Diameter (mm) φ29

12 Hook Block Model YG160

13 Swivel Model SL160

14 Rotary Table Model ZP175

15 Chassis Model of Truck-Mounted Hydraulic Rig XDP60/12 × 8

16 Approach / Departure Angle 26°/18°

17 Min. Ground Clearance (mm) 311

18 Max. Gradeability 26%

19 Min. Turning Diameter (m) 38

20 Overall Dimension (m) 20.5 × 3.05 × 4.4

21 Main Unit Mass (kg) 65000


Technical Parameters of Truck Mounted Hydraulic Rig

Item Name Parameter
1 Drilling depth (41/2″Drill Pipe) m 2000
2 Overhaul depth (31/2″Drill Pipe) m 5500
3 Max. hook load KN 1580
4 Hook speed (m/s) 0.2 to 1.4
5 Mast (m) 35
6 Mast type A-mast
7 Engine power (kW) 470
8 Hydraulic transmission box M6620AR
9 Transmission type of mechanical drill rig Hydraulic + Mechanical
10 Traveling system 5 × 4
11 Main rope diameter (mm) φ29
12 Hook block model YG160
13 Swivel model SL160
14 Rotary table model ZP175
15 Chassis model of truck mounted hydraulic rig XDP60/12 × 8
16 Approach / departure angle 26°/18°
17 Min. ground clearance (mm) 311
18 Max. gradeability 26%
19 Min. turning diameter 38
20 Overall dimension (m) 20.5 × 3.05 × 4.4
21 Main unit mass (kg) 65000
