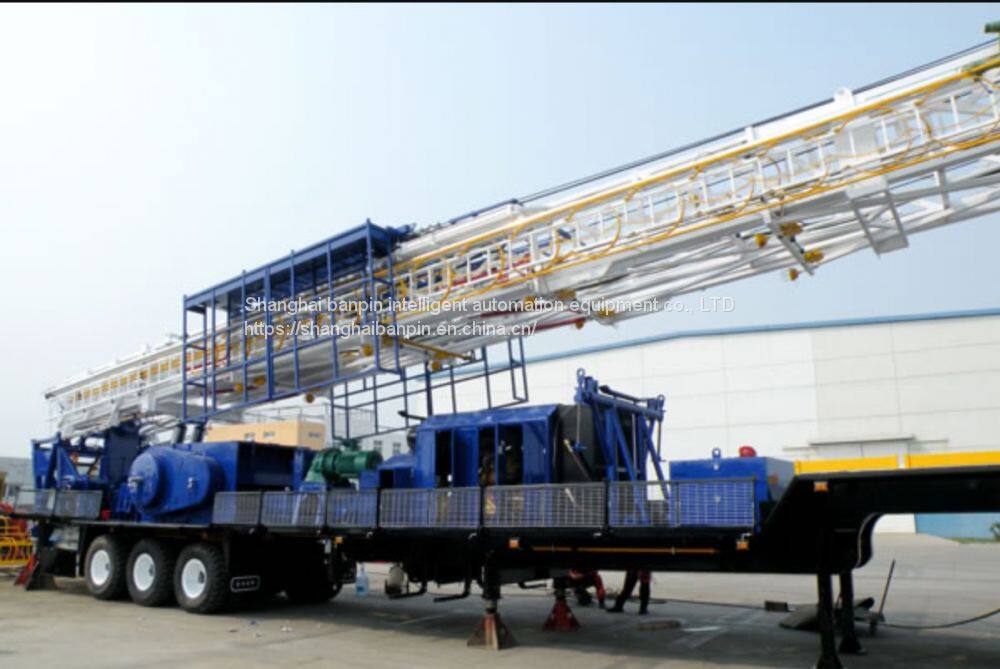

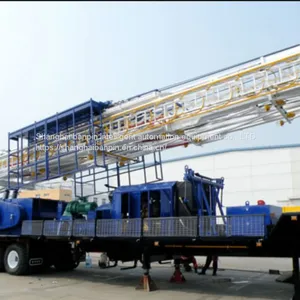

**ZJ15T/1350 Trailer-Mounted Drilling Rig**
**Description:**
The ZJ15T/1350 trailer-mounted drill rig is built upon a specially designed three-axle semi-trailer chassis, powered by a reliable diesel engine with an efficient transmission mechanism, and features a 33m A-type hydraulic telescopic mast. This product excels in its rational layout, reliable operational performance, low transportation costs, and ease of on-site installation and maintenance. It is ideally suited for drilling operations in oil and gas wells with depths of up to 1500 meters.
**Features:**
1. **Special Trailer Chassis:** The trailer-mounted drill rig boasts a dedicated semi-trailer chassis, which ensures fast and cost-effective movement.
2. **Efficient Transmission:** Equipped with an Allison S-series hydraulic transmission case, this rig boasts low operational and maintenance costs.
3. **Reliable Power:** The hydraulic drilling machine is powered by a Caterpillar diesel engine known for its dependable performance.
4. **Braking Options:** The main draw-works brake can be a disc brake or belt brake, with the auxiliary brake offering choices like a pneumatic water-cooled disc brake or a water brake.
**Advantages:**
The trailer-mounted drilling rig streamlines all components onto the semi-trailer chassis, including the power system, draw-works, mast, traveling system, and transmission system. During transportation, a tractor pulls the trailer to the oil field, significantly enhancing drilling operation transportation efficiency and conserving transportation resources.
**Application:**
Our company designs and manufactures diesel-driven semi-trailer drilling rigs with drilling depths ranging from 1500m to 4000m and maximum static loads from 1350KN to 2250KN. These rigs are best suited for open oil fields with well-maintained road conditions. Notably, the trailer-mounted drilling equipment is characterized by its capacity to handle heavy workloads, reliable performance, strong cross-country capabilities, cost-effective transportation, and mobility. It is an excellent choice for middle and shallow well drilling operations.
Technical Parameter of Trailer Mounted Drill Rig
| Item | Name | Parameter |
| 1 | Drilling depth(41/2″Drill Pipe) m | 1500 |
| 2 | Heavy repair depth(31/2 " Drill Pipe) m | 4500 |
| 3 | Max. hook load KN | 1350 |
| 4 | Hook speed (m/s) | 0.2 to 1.4 |
| 5 | Mast (m) | 33 |
| 6 | Mast type | A-mast |
| 7 | Engine power (kW) | 403 |
| 8 | Hydraulic transmission case | M5620AR |
| 9 | Transmission type of trailer mounted drill rig | Hydraulic + mechanical |
| 10 | Traveling system | 5 × 4 |
| 11 | Main rope diameter (mm) | φ26 |
| 12 | Hook block model | YG110 |
| 13 | Swivel model | SL135 |
| 14 | Rotary table model | ZP175 |
| 15 | Chassis model of hydraulic drilling machine | XDP50/10×8 |
| 16 | Approach / departure angle | 30°/20° |
| 17 | Min. ground clearance (mm) | 311 |
| 18 | Overall dimension (m) | 18.8 × 3.05 × 4.3 |
