ZJ15/1350CZ Truck-Mounted Drilling Rig for Shallow Well Drilling-supply of China

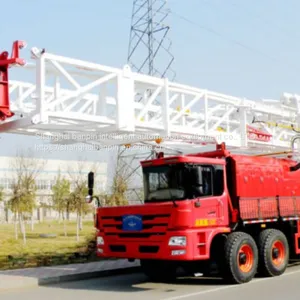

ZJ15/1350CZ Truck-Mounted Drilling Rig for Shallow Well Drilling-supply of China thumbnail-1

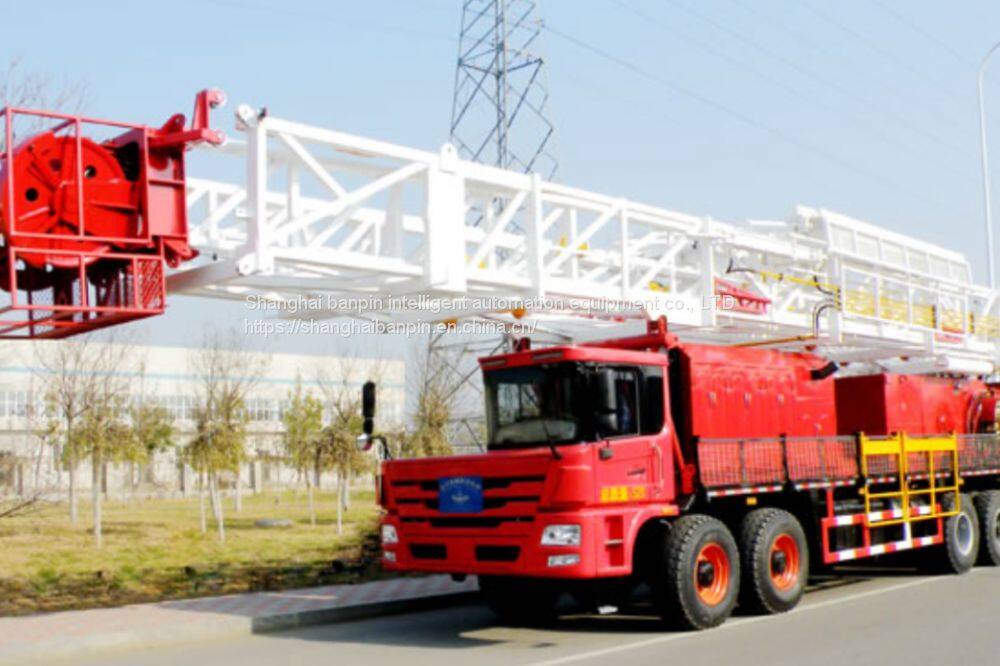

ZJ15/1350CZ Truck-Mounted Drilling Rig for Shallow Well Drilling-supply of China photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Rotary Drilling Rig
Certification:
ISO9001,ISO14001,OHSAS18001,API Q1
Contact Supplier Request Quote Chat Now
Shanghai Banpin Intelligent Automation Equipment Co., LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
pudong airport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Type Rotary Drilling Rig
Certification ISO9001,ISO14001,OHSAS18001,API Q1
After-sales Service Provided Overseas service center available
Warranty 1
Weight 58000
Dimension(L*W*H) 18.8×3.05×4.3M
Power Type Other, Hydraulic + Mechanical
Usage Ore
Condition New
Power(W) 403000

This ZJ15/1350CZ truck-mounted drilling rig is a versatile and powerful machine designed for a wide range of drilling operations. Whether it's drilling shallow wells, performing heavy repairs on oil and gas wells, or conducting water well drilling, this drilling rig is up to the task.


With a maximum drilling depth of 1500 meters for 4½-inch drill pipes and the ability to perform overhauls at depths of up to 4500 meters with 3½-inch drill pipes, this rig offers exceptional flexibility. It can handle a maximum hook load of 1350 kN, making it suitable for various applications.


The mast, standing at 33 meters and of A-mast type, provides the necessary support and stability for drilling operations. The rig is powered by a robust engine with 403 kW of power, ensuring efficient and reliable performance.


The hydraulic transmission box, specifically the ALLISON M5620AR model, combined with a hydraulic and mechanical transmission system, allows for precise control and smooth operation. The rig's 10x8 petroleum-purposed vehicle chassis for double drum configurations or 8x8 chassis for single drum setups ensure mobility and stability on the job.


In terms of safety and control, the rig offers flexibility in braking systems. The main brake for the draw-works can be configured as a band brake or disc brake, and the auxiliary brake can be either an Eaton pneumatic water-cooled disc brake or a water brake, providing options for different operational requirements.


With advanced features and a focus on patented technologies, this truck-mounted drilling rig boasts a well-thought-out design, reliable performance, and cost-effective transportation. It is designed for easy on-site installation and maintenance, ensuring minimal downtime and efficient operations.


Technical Parameter of Truck Mounted Drilling Machine:


- Drilling Depth (4½" Drill Pipe): 1500 meters

- Overhaul Depth (3½" Drill Pipe): 4500 meters

- Max. Hook Load: 1350 kN

- Hook Speed: 0.2 to 1.4 m/s

- Mast Height: 33 meters

- Mast Type: A-mast

- Engine Power: 403 kW

- Hydraulic Transmission Box: M5620AR

- Transmission Type: Hydraulic + Mechanical

- Traveling System: 5x4

- Main Rope Diameter: φ26 mm

- Hook Block Model: YG110

- Swivel Model: SL135

- Rotary Table Model: ZP175

- Chassis Model: XDP50/10x8

- Approach/Departure Angle: 30°/20°

- Min. Ground Clearance: 311 mm

- Max. Gradeability: 26%

- Min. Turning Diameter: 30 meters

- Overall Dimensions: 18.8 x 3.05 x 4.3 meters

- Main Unit Mass: 58,000 kg


This comprehensive drilling rig is the ideal choice for various drilling and repair operations, offering both power and precision in one efficient package.


Technical Parameter of Truck Mounted Drilling Machine

Item Name Parameter
1 Drilling depth(41/2″Drill Pipe) m 1500
2 Overhaul depth(31/2″Drill Pipe) m 4500
3 Max. hook load KN. 1350
4 Hook speed (m/s) 0.2 to 1.4
5 Mast (m) 33
6 Mast type A-mast
7 Engine power (kW) 403
8 Hydraulic transmission box M5620AR
9 Transmission type of Hydraulic Drill Rig Hydraulic + Mechanical
10 Traveling system 5 × 4
11 Main rope diameter mm φ26
12 Hook block model YG110
13 Swivel model SL135
14 Rotary table model of truck mounted drilling machine ZP175
15 Chassis model XDP50/10 × 8
16 Approach / departure angle 30°/20°
17 Min. ground clearance(mm) 311
18 Max. gradeability 26%
19 Min. turning diameter(m) 30
20 Overall dimension (m) 18.8 × 3.05 × 4.3
21 Main unit mass (kg) 58000
