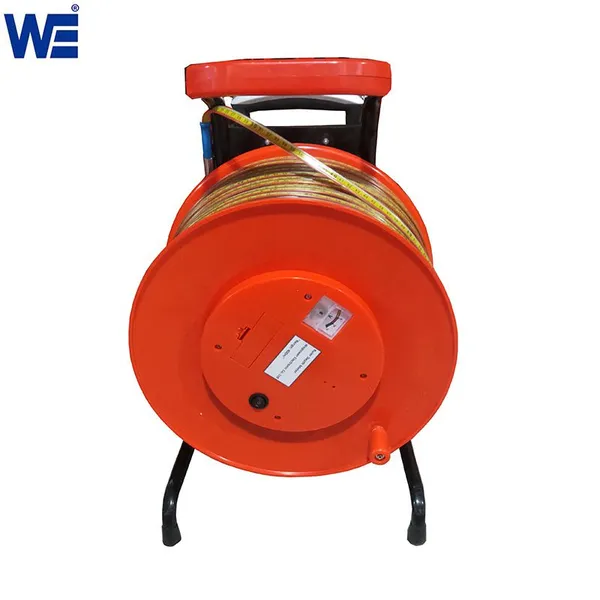

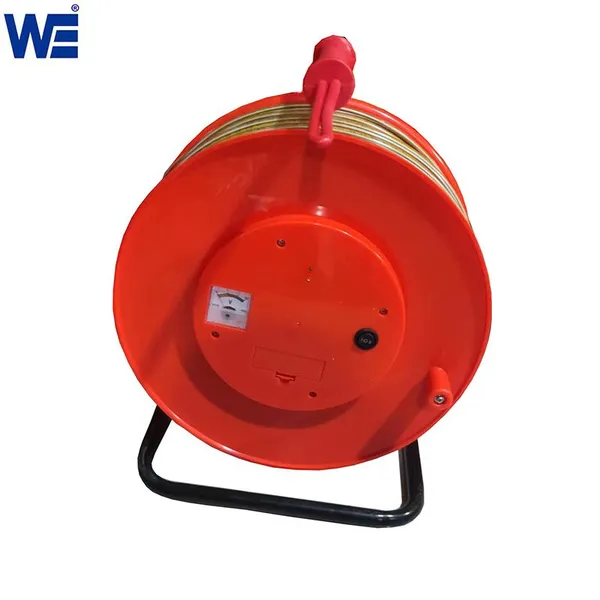

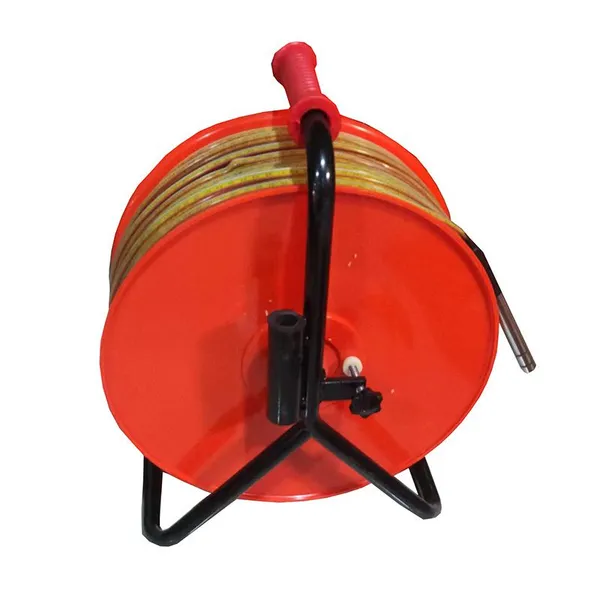

Water Level Indicator Meter
- Qingdao , Yantai , Guangzhou, Hongkong , Shenzhen
- T/T
- 7 days
You May Like
Product Details
| Brand Name | Wepower Electronic | Place of Origin | China | |
| Model Number | WCL |
Product Description
Water level indicator meter is also called water level meter, water dip meter, borehole dip tape and so on. The water level indicator meter can be utilized in a variety of settings, including water pipes, wells, and groundwater. The process of arrangement and operation does not require much effort and time. Since the water level indicator meter doesn't require charging before use and can be readily measured by just changing the battery, it may be employed in a variety of field environments.
When using the Water level indicator meter, all that is required of the user is to position the steel ruler in an appropriate location and then manually rotate the turntable of the device so that the cable plastic ruler gradually extends into the measuring wellhead or deep underground hole. When the water level indicator meter's alarm and indicator light go off, the probe has made contact with the water source, and the user can read the value on the ruler close to the hole at this time. Varied geographical areas have different requirements for the size of the water level indicator meter.
Product Name | WCL Water level indicator meter for borehole /borewell /deep well |
Measure Range (m) | 30m,50m,100m,150m,200m,250m,300m, 350m ,400m,500m, |
Probe Dimension | 14*220mm;(Dia16mm can be offered too) |

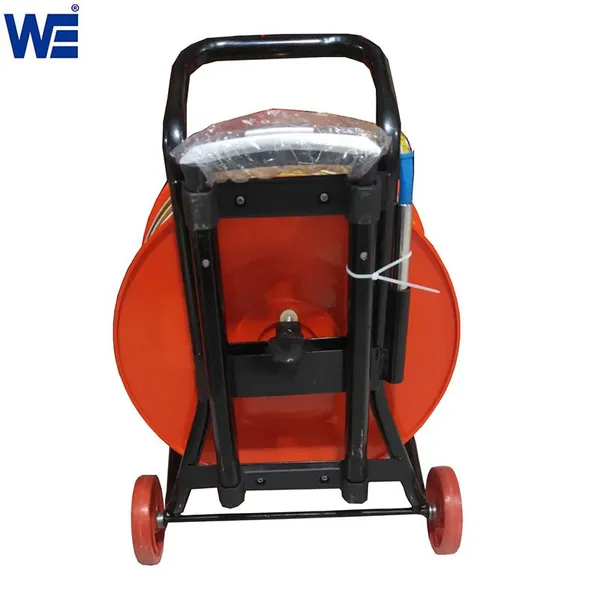

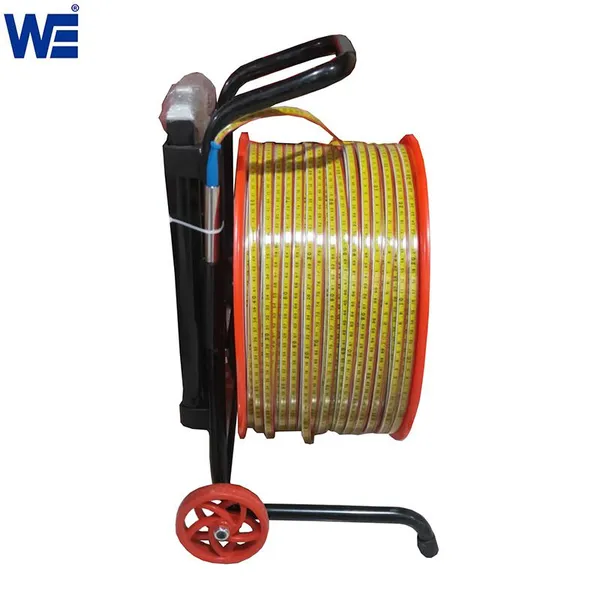

Material | ● ABS Reel and handle ,Metal frame (Range less than 350m ) ● Metal reel , Metal Handle , Metal Frame (Range≥ 400m ) ● Metal reel , metal handle ,Metal Frame ,with wheel trolley (Range=500m) |
Cable Material *Size | Steel ruler with PE Coating ; Width: 12mm * Thickness 2mm |
Indication Way | Indicator Light, Buzzer |
Product Size | Length 36cm * Width 26cm * Height 44cm |
Weight | 5KGS (50m )/ 10KGS(300m) /23KGS(500m) |
What is the standout of the water level gauge?
The most outstanding thing about this water level indicator is the price/performance ratio. The water level indicator switch is sensitive and fast, the operation is simple and convenient, the measurement is fast and accurate, and its performance is not inferior to other water level meter products. Ours is less expensive overall than other items since it streamlines the functionality of the product based on the original.
