Help CenterMagnetic Probe Extensometer
Related Products

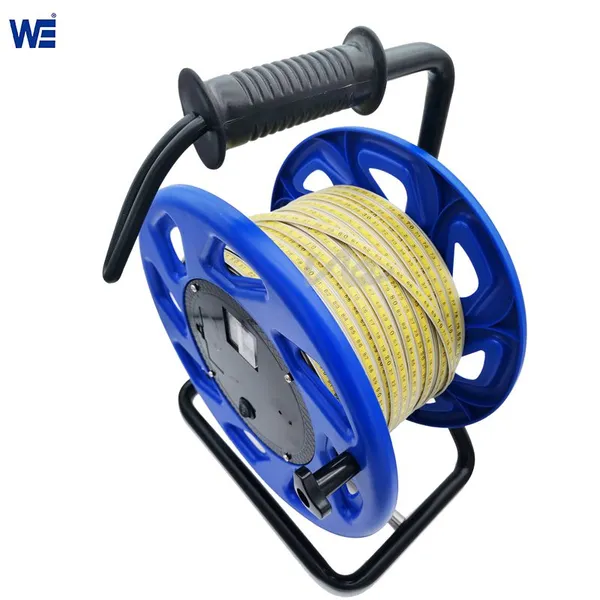

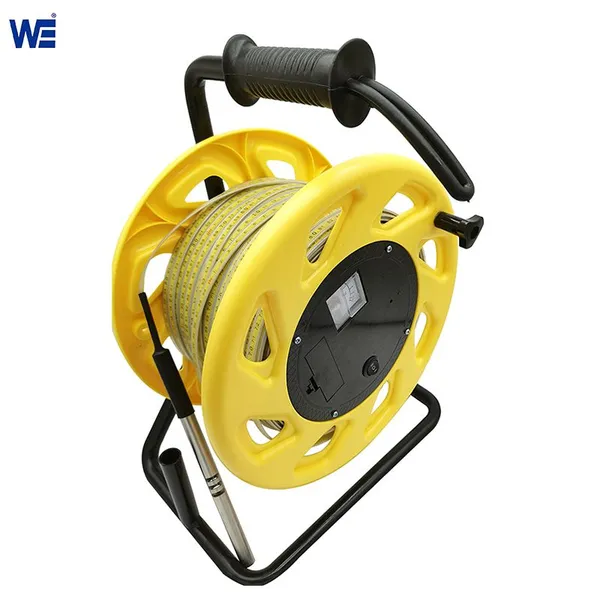

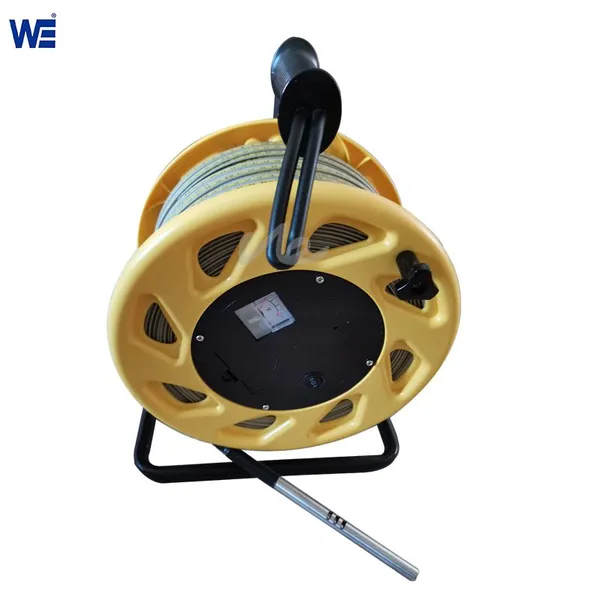

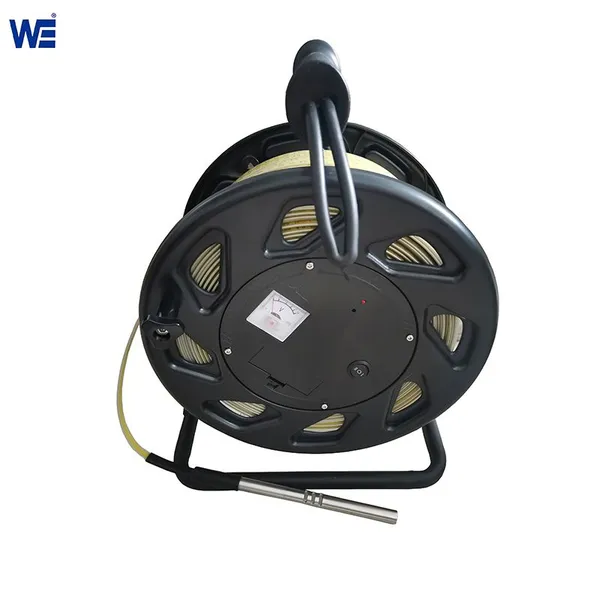

The Magnetic settlement system extensometer is an instrument designed and produced for the soil filling construction environment. The most outstanding features of the magnetic settlement system extensometer are its high sensitivity and practical convenience. The Wepower magnetic settlement system extensometer has the same appearance design as the Wepower borehole dip meter for water well level measurement.
Features of Magnetic Settlement system extensometer:
► Efficient segmented measurement. Magnetic settlement system extensometer can realize multi-point measurement at one time and can easily measure the depth of different soil layers.
► Precise and rapid magnetic response system. Different from the water depth meter, magnetic extensometer for settlement system will not alarm when it encounters water, It will only alarm when the probe sensor encounters magnetic induction.
► Good device compatibility. The Magnetic settlement system extensometer can withstand water pressure of 0.5Mpa. The probe does not bend during the measurement process, making the measurement results safer and more reliable.
Technical Parameters of Magnetic settlement system extensometer :
Product |
Magnetic Extensometer |
Model No. |
WERT-MPE |
Usage |
Used together with settlement magnetic rings, settlement tubes, inclinometer tubes, pressure tubes, etc. ( non attached with products) |
Measuring range |
30m, 50m, 100m, 150m, 200m, 250m, 300m, 400m, 500m (optional) |
Resolution |
1mm |
The reading error of 2 points at the same measuring point |
|
Probe diameter |
14mm |
Housing |
ABS reel |
Ruler tape material |
steel ruler + P insulation |
Probe material |
stainless steel |
Display |
Indicator light, buzzer |
Water pressure resistance |
0.5Mpa |
Working temperature |
-10°C ~60°C |
Power consumption |
0.05W |
Powered |
9V dry battery |
Our magnetic extensometer has a 12-month warranty. The products are of good quality and accurate in measurement, contact us now!
