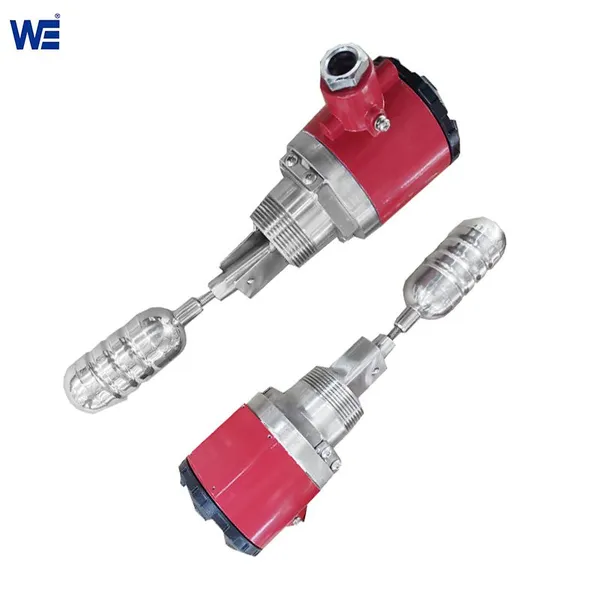

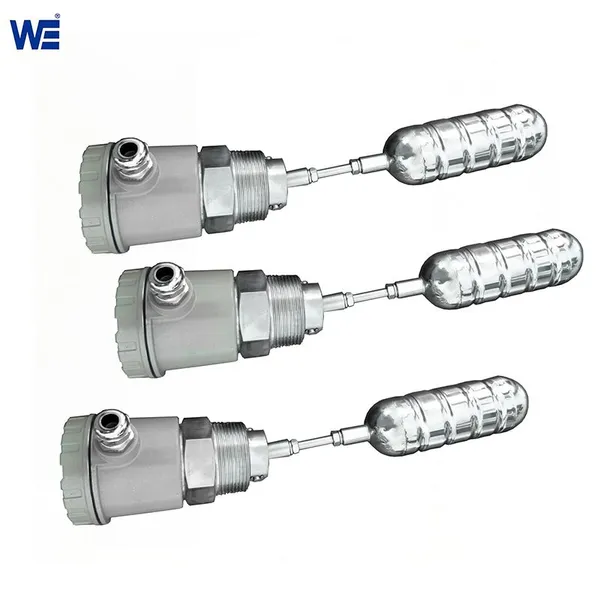

Wepower Electronic water level sensor float switch are various. This type level switch is flexible tiny magnetic float water level sensor float switch. The level switch can be worked with automatic system in the industry. Wepower water level sensor floats switch is responsive and completes the action quickly. The float floats due to changes in water level in the tank, and when the float is parallel to the ground, it activates a reed switch located inside the water level sensor float switch, sending a switch signal to the control panel or process controller.
How to select water level sensor float switch :
► Application requirements: Consider the specific needs of your application, such as the type of liquid, its temperature and pressure, and any potential corrosive or hazardous elements.
► Accuracy and reliability: The accuracy and reliability of the float level switch are critical to ensure accurate level measurement and prevent any system failures or malfunctions. Look for switches with high-quality materials, robust construction, and proven track records of performance.
► Mounting configuration: The mounting configuration of the float level switch should be compatible with your tank or vessel, taking into account the available space, shape, and positioning of the switch.
► Switch type: There are several types of float level switches available, such as magnetic, mechanical, and electronic switches. Evaluate each type based on your application requirements and system constraints to choose the best one.
► Cost: While cost is always a consideration, it shouldn't be the primary factor. Choosing a low-cost switch that doesn't meet your application requirements can lead to bigger expenses down the line due to maintenance, repairs, or even system failure.
Technical parameters of water level sensor float switch :
Product |
Water level sensor float switch |
Model number |
WPS series |
Measuring media |
Liquid (diesel, base oil, water, chemical solution, chemical reagent, LPG etc) |
Wiring box |
ABS aluminum |
Output contact |
5A/220VAC |
Contact form |
SPDT（IC） |
Type |
Side-mounted threaded/flange type and top mounted threaded/flange type |
Operating pressure |
15bar (side mounted)~ 30bar (special customization) |
Operating temperature |
-20~200°C , support high temp type |
Wetted material |
SUS304/316 |
Applicable specific gravity |
0.65 side mounted /0.55 top mounted |
Probe/Rod |
Straight(standard) / L-shaped type |
