Vibrating fork switch is compact mini vibrating switch with durable stainless steel body and a miniature fork can be used for a variety of liquid applications, it is also called mini vibrating level switch , mini tuning fork switch . Mini Vibrating fork 's compact size allows for application...
Send Inquiry

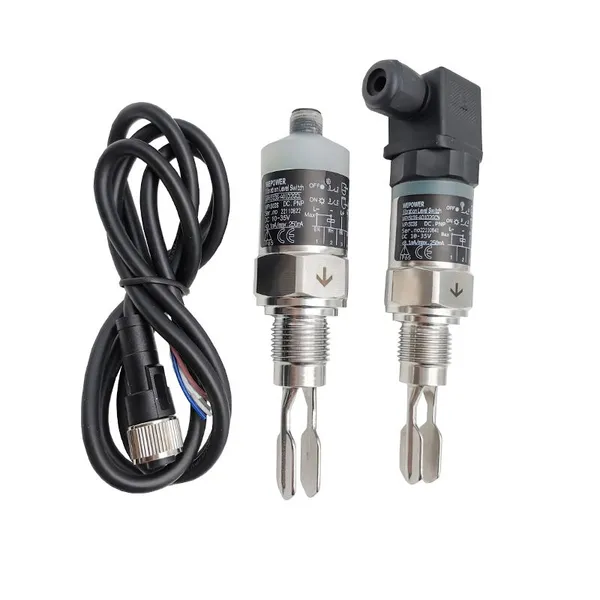

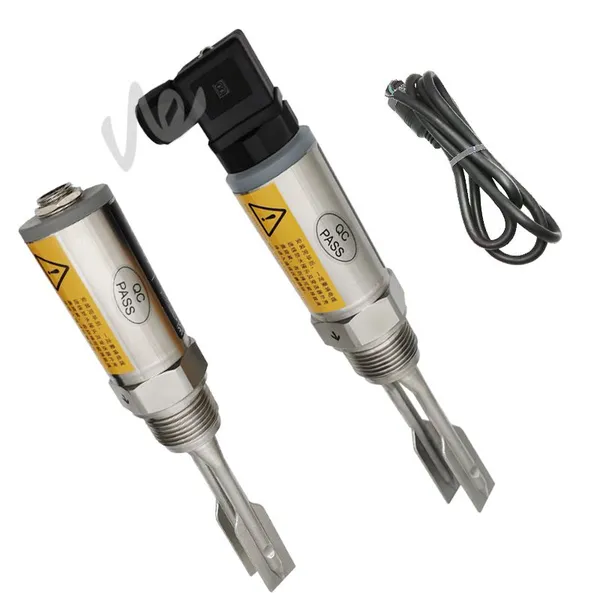

Vibrating fork switch is compact mini vibrating switch with durable stainless steel body and a miniature fork can be used for a variety of liquid applications, it is also called mini vibrating level switch , mini tuning fork switch .
Mini Vibrating fork 's compact size allows for application in places a larger tuning fork level switch can not installed properly , no mechanical moving parts with no routine maintenance requirement , there is not influence on low dielectric constant measuring medium.
Mini(40mm fork),standard (100mm fork),extension tube extension vibrating fork switch ,which are all high reliability and performance .
Measure Medium |
Liquid |
Vibrational Frequency |
350/1000HZ |
Accuracy |
±2mm |
Fork Length |
40mm or 100mm |
Measuring Length |
40-1000mm |
Ambient Temperature |
-30-80℃ |
Operation Temperature |
-30-150℃ |
Repeatability |
±2mm |
Indication Method |
LED |
Power Supply |
24V DC |
Power |
1 W |
Signal Output |
SPDT/PNP/NPN/NAMUR |
Maximum Load |
SPDT(5A); PNP/NPN(350mA) |
Body Material |
Stainless steel |
Pressure Range |
-98KPa-3MPa |
Wetted material |
SS304/SS316 |
IP Grade |
IP67 |
Process Connecting |
Thread, Tri-clamp |
Electrical Interface |
Hersman Joint / Aviation Joint |
|
|
|
|
Standard |
Standard (Small Fork) |
Sanitary (Clamp) |
Other |
Model Selection | |||||||
WAPX503 |
Vibrating Fork Switch |
||||||
/ |
Code |
Product Type |
|||||
A |
Standard |
||||||
B |
High Temperature |
||||||
C |
Sanitary |
||||||
/ |
Code |
Insertion Length |
|||||
01 |
40mm |
||||||
02 |
100mm |
||||||
03 |
Extended 100mm～3000mm Available |
||||||
04 |
Cable Type Extended Split 1～100m Available |
||||||
/ |
Code |
Power Supply |
|||||
D |
24V DC±10% |
||||||
/ |
Code |
Material |
|||||
1 |
SS 304（Standard） |
||||||
2 |
Ss316 |
||||||
3 |
Other Material (Please Remark) |
||||||
/ |
Code |
Process Connecting |
|||||
G |
G1"Thread（standard） |
||||||
T |
1"NPT Thread |
||||||
C |
Customer Other Request (Please Note Spec) |
||||||
F |
Flange Connecting (Please Note Flange Spec) &Standard） |
||||||
/ |
Code |
Other Parameters |
|||||
A |
Normal Temperature: ℃ |
||||||
B |
Normal Pressure: Kpa |
||||||
C |
IP Grade：IP66 |
||||||
D |
Explosion：ExdⅡCT6 |
||||||
E |
Max Temperature:℃ |
||||||
F |
Max Pressure:Kpa or Mpa |
||||||
（） |
Customer Other Request |
||||||
/ | |||||||
503 |
A |
01 |
D |
1 |
G |
AB (Example ) |
|
FAQ
Q1. Are you a manufacturer or a trading company?
A1. We are manufacturer for almost 20 years. Welcome to visit our factory at any time.
Q2. What's the payment term?
A2. T/T, MasterCard, VISA, Western Union etc . Q3. How about the delivery time ?
A3. 2-3 days for standard models. For big orders, it takes about 10-15 days.
Q4 . Can we get samples for quality inspection ?
A4. Yes , welcomed, sample will be free or little charge for customer.
