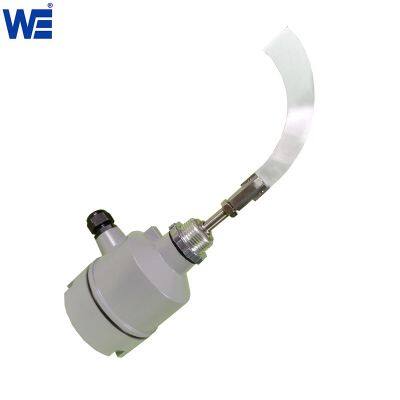

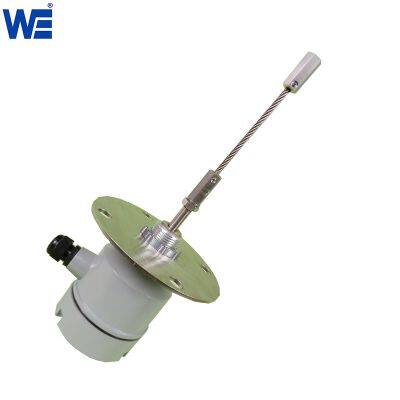

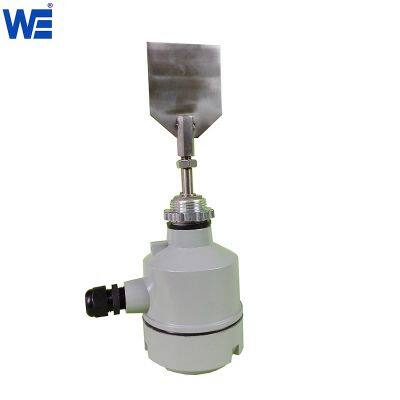

The rotary paddle sensor uses an international standard micro-motor, which drives the stainless steel blade of the WZP20 rotary paddle sensor to rotate. When the material rises to the position of the blade, the rotation of the blade of the rotary paddle sensor is blocked, and the resistance signal is transmitted to the device in the junction box, at this time, the detection device will output a switch signal to the outside, never cut off the power supply and stop the blade from rotating.
The rotary paddle sensor WZP20 is a high-performance, fail-safe, anti-dust solid level switch for powder and grain of various dry materials. Owing to its excellent performance, rotary paddle sensors are frequently used for handling bulk solids and are also known as bin detect sensors rotary paddle level switches.
Name |
WZP20 Rotary paddle sensor (level switch paddle type) |
Power supply |
220VAC/24VDC/110VAC |
Power consumption |
4W |
Contact capacity |
SPDT 5A/250VAC |
Blade speed |
1RPM |
Voltage withstand |
AC 1500V×1minute |
Measuring torque |
1.0 N·m |
Applicable specific gravity |
0.5g/cm3 or more |
Explosion-proof |
Ex d Ⅱ C T6 Gb |
Operating temperature |
-20～80℃/high temperature type -20～400℃ |
How to maintain the WZP20 rotary paddle sensor?
● Since the rotary paddle sensor is a plug and play device, users can check the device after disassembly regularly.
● The user needs to check whether the WZP20 rotary paddle sensor’s rotating shaft and blades are bent, deformed or damaged
● Check whether the connection between the rotating shaft and the blade is normal
● Regularly clean the rotary paddle sensor and remove the debris attached to it.
