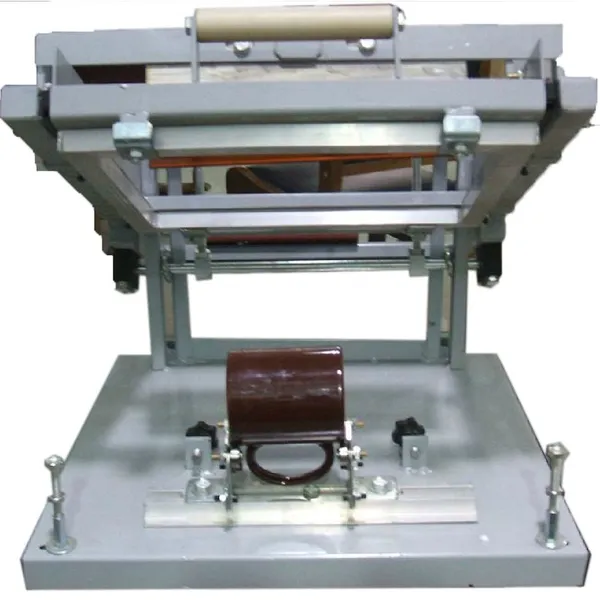

TAM-3221M Manual cylinder screen printer
video link:
http://youtu.be/JhIVHggKtlY
Technical Parameters:
Model |
TM-3221M |
TM-3237M |
TM-4636M |
TM-4656M |
TM-5675M |
Max Frame(mm) |
320*210 |
320*370 |
460*360 |
460*560 |
560*750 |
Max Dia. (mm) |
φ60 |
φ160 |
φ160 |
φ300 |
φ400 |
Max circumference(mm) |
200 |
200 |
300 |
300 |
500 |
Max Size (mm) |
200*100 |
200*240 |
300*240 |
300*400 |
500*400 |
Dimensions(L*W*H): |
680*310*220 |
680*480*350 |
830*480*350 |
1000*660*350 |
1320*680*620 |
Weight |
20KG |
30KG |
50KG |
75KG |
100KG |
Price |
$230 |
$290 |
$415 |
$600 |
$830 |
Express cost to CZ |
$200 | $270 | $415 | to air port | to seaport |
Features & Usage:

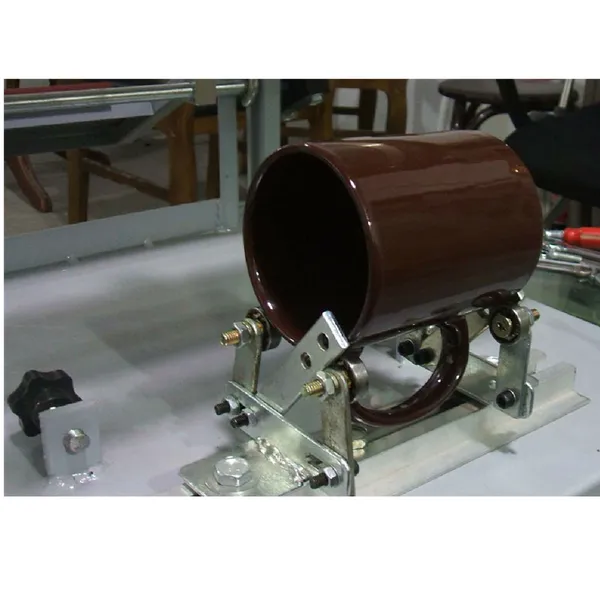

Cylindrical and tapered different jig base, DIY replacement,
Products of different diameters, Just adjustment of the wheel center distance
Positioning the cylinder in the longitudinal direction of the same, multi-color printing, no problem
Squeegee function as both pushed back ， it will flush the screen
Manual operating cylinder screen printer is Small, manual process, No Need any power of electric or pneumatic。
It is apply to cylinder surface, such as plastic bottles, hardware tool, sports products, domestic appliances, electrical components of the circular, wood furniture,toys! Most suitable for small batches of products printing, proofing!
manual printer
bottle printer
screen printing machine
Pulseras de silicona LED pantalla de la máquina de impresión
