Fully Automatic Screen Printing UV Curing Machine With Robot Arm
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Tamprinter
Model Number:
TAM-Z2
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
7 days
Related Products
-
Film Plastic Thin Sheet Screen Printing LineNegotiableMOQ: 1 Set -
Automatic Flat Silk Screen Printing Machine With UV DryerNegotiableMOQ: 1 Set
-
Automatic Screen Printer With LED UV Ink Kit TM-Z4-DNegotiableMOQ: 1 Set
-
Good Standard Vertical Electric Screen Printer With LED UV Dryer KitNegotiableMOQ: 1 Set
-
TAM- Z4 A4 Thin EL Panels Printing uv Curing Equipment KitNegotiableMOQ: 1 Set
Brand Name
Tamprinter
Model Number
TAM-Z2
Product Description
TAM-Z2 Automatic Membrane Switch Screen Printing Set
Technical parameters:
Plate Type: Screen Printer
Condition: New
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Tamprinter
Model Number: TAM-Z2
Usage: membrane switch, sheet metal, plastic etc.
Automatic Grade: Fully Automatic
Color & Page: Single Color
Certification: CE
Warranty: 1.5year
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging: plywood
Delivery Detail: Within 30 days after order confirmation
Performance & Features

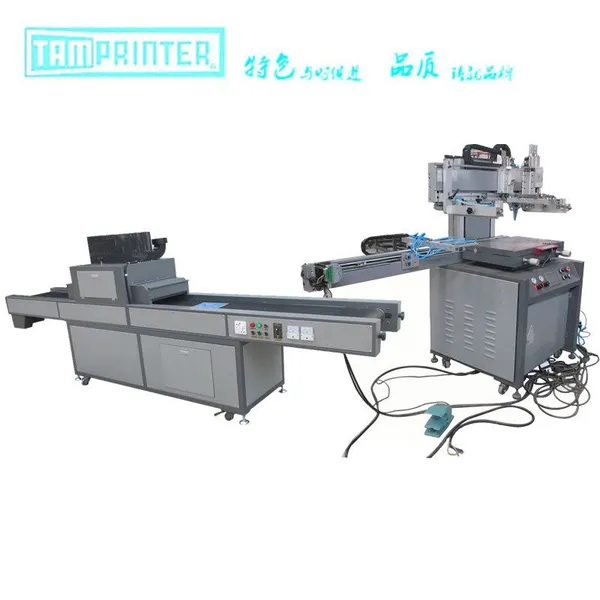

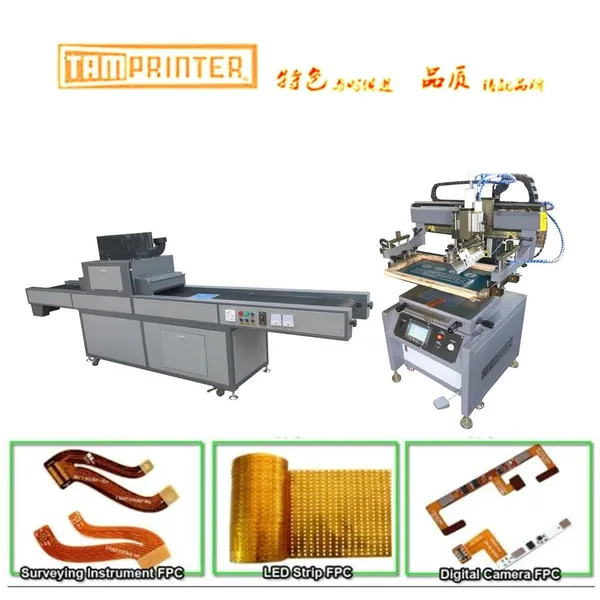

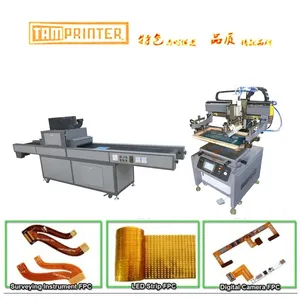

1. This line is composed of vertical screen printer, UV dryer and collecting device.
2. It is a fully automatic production line which takes off material automatically.

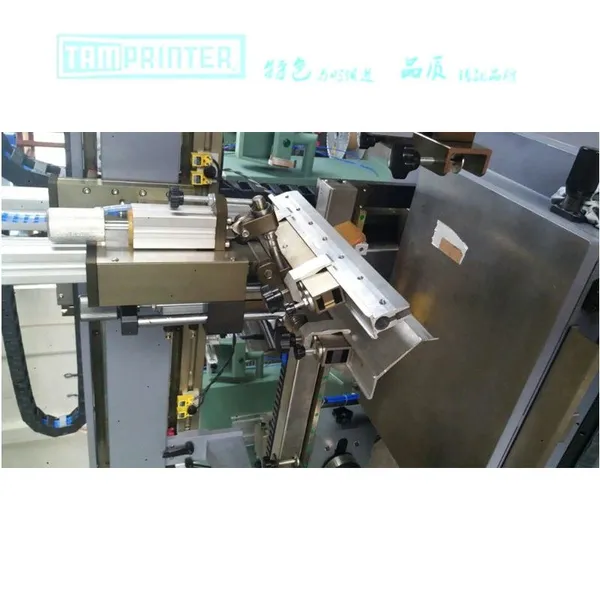

3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).
4. It can not only save human labor, but also improve working efficiency of printing machines.
5. It applies to printing on membrane switch, sheet metal, plastic, plastic film etc.
If you have any question, please contact us!
Name: SHENZHEN TAMPRINTER PRINTING MACHINERY LIMITED
Address: 111, Fourth Industrial Zone, Guanlan Town, Shenzhen518110
Contact : Mr. Tam Liu (Manager)
p. +86.15994744161---f. +86.755.23148182
Technical parameters:
| Item | Description |
| TM-3045Z Vertical screen printer with robot arm |
Worktable area: 400X450mm Max printing area: 300X450mm Max screen fame size : 550X720mm Substrate thickness (mm):less than 40mm Printing speed (pcs/h):900 Working pressure(Mpa):4.0-6.0 Machine size(mm): 980X820X1580mm 2CBM weight:280kg Rated voltage(P/V/Hz) 3/380/50 Source power: 380V/1.5kw Free fitting clamp 300mm--1pcs,tinge 320mm---1pcs; clamp 450--1pcs,tinge 470mm--1pcs. Tool box |

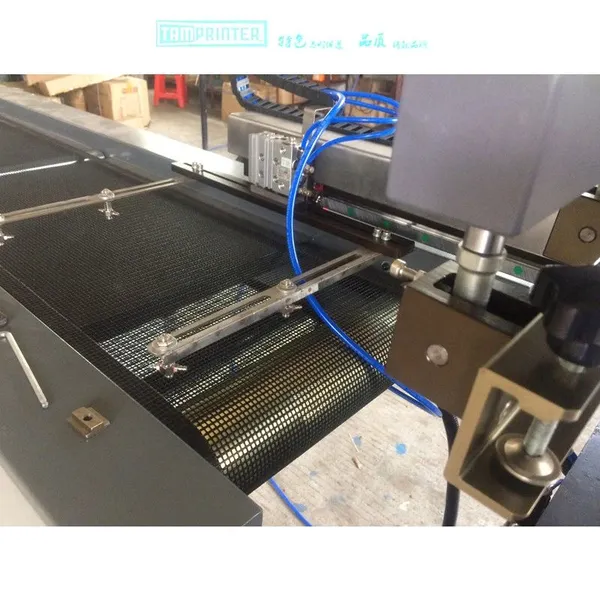

| TM-UV400-L varnish Machine |
Conveyorbelt width(mm) 380 Effective range (mm) 400 Max thickness of cured (mm) 40 Conveyor speed (m) 2~20 Power(P/V/Hz) 3/380/50 UV lamp(KW/2pcs)5.6 Driving power(W) 60 Total power(KW) 13 Dimension(L*W*H) 4200*700*1200 5.2CBM Weight(kg) 350 Free fitting - 1 X speed regulator |
| Collecting device |
Plate Type: Screen Printer
Condition: New
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Tamprinter
Model Number: TAM-Z2
Usage: membrane switch, sheet metal, plastic etc.
Automatic Grade: Fully Automatic
Color & Page: Single Color
Certification: CE
Warranty: 1.5year
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging: plywood
Delivery Detail: Within 30 days after order confirmation
Performance & Features
1. This line is composed of vertical screen printer, UV dryer and collecting device.
2. It is a fully automatic production line which takes off material automatically.
3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).
4. It can not only save human labor, but also improve working efficiency of printing machines.
5. It applies to printing on membrane switch, sheet metal, plastic, plastic film etc.
If you have any question, please contact us!Name: SHENZHEN TAMPRINTER PRINTING MACHINERY LIMITED
Address: 111, Fourth Industrial Zone, Guanlan Town, Shenzhen518110
Contact : Mr. Tam Liu (Manager)
p. +86.15994744161---f. +86.755.23148182
