large cylinder screen printer TM-MK cylindrer screen printer

large cylinder screen printer TM-MK
or name:

barrel printer, bucket print, tub printing , keg screen printer, pail cylinder screen printer

youku Video:

Kegstar bought our keg machines test Video :

/watch?v=eZNqdGNh3WU

TM-1500e: /v_show/id_XMTMzMjQ2MTE5Ng==.html

Domestic brand wine barrel screen printing machine

/v_show/id_XMTI4NTkwMDE0NA==.html?from=y1.7-1.2

Technical Parameters:

Product Description:

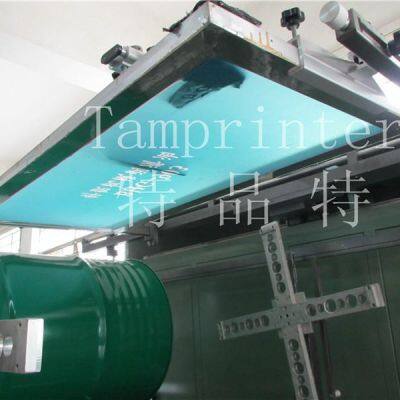

Non-standard large drum screen printer is a customized large screen printing machine based on customer’s specific demand and specifications. This machine is suitable for printing logos on mainframe drums, mineral water barrels, chemical barrels, paint barrels etc. Machines use inverter motor control with rail slide printing, in that way the machine is more stable, higher precision, and lower noise.

Characteristics:

1 microcomputer control high degree of automation, simple operation; glance!
2, using the brand pneumatic components, stable and reliable performance;
3, back to the oil scraper dual mode selection; accommodate various printing requirements;
4, the printing stroke and speed are adjustable to meet the 360-degree and multi-color overprint different printing requirements;
5, self-balancing blade, to ensure equalized printing pressure;
6, using imported axis, so that the screen scraper smooth glide sleeve printing;
7, slide speed can be adjusted independently, easier to use, fast;
8, about the use of high-precision linear slide rail slide, with Taiwan Wanxin brand motor,
9, using the stepless speed and with Danfoss frequency converter drive, running precise, stable 10 long life
11, lift up and down using the cylinder type,
12, widening thick heavy base,
13, so set manually fine-tuning, convenient and accurate alignment.

Screen Printing Techniques for Metal Packaging

      Metal packaging screen printing is a kind of special packaging and printing, which is based on metal packaging products, special hard materials for the substrate screen printing methods, the printing materials are tinplate (tinplate), chrome plate, Galvanized steel sheet, cold-rolled carbon steel sheet, hot-rolled carbon steel plate, there are special packaging materials using aluminum, stainless steel and other materials.
      Metal packaging Screen printing is the metal packaging production process part of the packaging content of the signs, contains a certain advertising component. Therefore, in order to arouse the desire of consumers to buy and increase the sales value of goods as a means of promotion should be innovative design and beautifully printed, so that metal packaging screen printing is even more important.

First, screen printing metal packaging performance characteristics

1、Physical Properties and Characteristics of Screen Printing Metal Materials
Metal packaging materials generally have a good heat transfer, electrical conductivity, high mechanical strength, is an ideal material for metal packaging. Because of its good ductility, it is easy to cut, stamping, bending, stretching and other processing. More importantly, the metal packaging materials can withstand a variety of table processing, to meet the various packaging decorative features.

2, Technical requirements for screen printing of metallic materials
2.1 Flatness: metal sheet shall not have warping phenomenon
2.2 Surface roughness: metal sheet surface should be no mechanical abrasion, scratches, uneven, rough stripes and other surface roughness.
2.3 Cleanliness: metal packaging printing surface should be clean without oil, dust, water stains and other unclean phenomenon.
3, Printing adaptability requirements
3.1, Metal packaging materials, good processing and design of the diversity of design
Metal packaging materials with good mechanical properties and processing, molding performance, metal packaging containers can achieve new, unique design, create a variety of shaped barrels, cans, boxes and other packaging containers, beautification of goods to improve the competitiveness of goods.

3.2, Colorful, rich layers, visual effects are good
Metal packaging, such as tin plate, because of its tin-plated surface, with a flash of color effects, and then through the background printing, graphic printing is more vivid. For Wuxi steel or other metal materials, the surface treatment and coating, screen printing can also reproduce after the special flash effect.

3.3, Is conducive to the realization of the value of the use of goods and artistic unity
Good performance of metal packaging materials and screen printing ink good wear resistance, durability, not only to achieve a unique design and create a beautiful screen printing conditions, metal packaging surface decoration, not only make the packaging more beautiful, But also greatly enhance the value of the metal packaging itself and improve the durability and maintainability of the goods can be better embodied in the use of goods and artistic unity of value.

3.4, Reduce costs an important means
The use of screen printing means to change or simplify some of the metal packaging products (such as steel drums, etc.) production process, reducing production costs.
For the above reasons, metal packaging, screen printing, in recent years has been rapid development.

B, Design Features of Metal Packaging Screen Printing
Packaging is the product performance of the concentrated performance, but also the product compelling faces. A high-quality packaging, not only reflects the face of the era of science and technology, reflecting the modern aesthetic, but also show the high-tech products. Therefore, to improve the function of packaging design, design and decorative design, the selection of appropriate means of technology, is the pursuit of the goal of today's packaging industry.
      Screen printing method is currently used to produce metal packaging graphics has become an important means, it is because the screen printing has a unique performance effects, a variety of types of ink, the ever-changing colors, are free to choose. So to improve the design and process level to create innovative metal packaging screen printing. Specific practices are as follows：
(1) the proportion of modeling: metal packaging products, the proportion of graphic form, with the contents of the product structure, overall shape, layout, etc. are closely related, with the development of the times and aesthetic changes, the proportion of packaging modeling are constantly Variety.
(2) layout design: metal packaging surface design of the function should be reasonable, to provide the greatest convenience to consumers. Pattern design implies a profound, both on behalf of the nature of the product but also on behalf of the production unit. Pattern design should pay attention to the following factors：
a. Should have a long-term use, should not be frequent changes;
b. Concise eye-catching, can give people a deep impression;
c. Has a unique, innovative style;
d. Reflecting the characteristics and nature of the product.
