TAM-Z2 Automatic Membrane Switch Screen Printing Set

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port guangzhou
Payment TermsT/T L/C
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Tamprinter

Model Number

TAM-Z2

Product Description

TAM-Z2 Automatic Membrane Switch Screen Printing Set

Technical parameters:

Item	Description
TM-3045Z Vertical screen printer with robot arm	Worktable area: 400X450mm Max printing area: 300X450mm Max screen fame size : 550X720mm Substrate thickness (mm):less than 40mm Printing speed (pcs/h):900 Working pressure(Mpa):4.0-6.0 Machine size(mm): 980X820X1580mm 2CBM weight:280kg Rated voltage(P/V/Hz) 3/380/50 Source power: 380V/1.5kw Free fitting clamp 300mm--1pcs,tinge 320mm---1pcs; clamp 450--1pcs,tinge 470mm--1pcs. Tool box

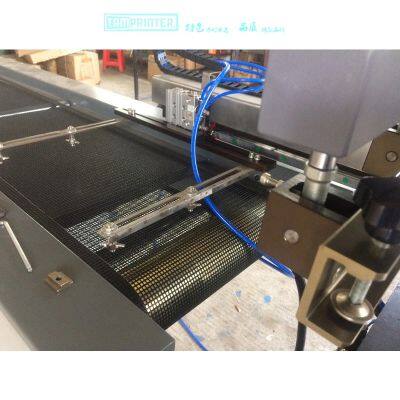

TM-UV400-L varnish Machine	Conveyorbelt width(mm) 380 Effective range (mm) 400 Max thickness of cured (mm) 40 Conveyor speed (m) 2~20 Power(P/V/Hz) 3/380/50 UV lamp(KW/2pcs)5.6 Driving power(W) 60 Total power(KW) 13 Dimension(LWH) 42007001200 5.2CBM Weight(kg) 350 Free fitting - 1 X speed regulator
Collecting device

Plate Type:   Screen Printer
Condition:     New
Place of Origin:   Shenzhen, China (Mainland)
Brand Name:       Tamprinter
Model Number: TAM-Z2
Usage:   membrane switch, sheet metal, plastic etc.
Automatic Grade: Fully Automatic
Color & Page: Single Color
Certification:       CE
Warranty:     1.5year
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging:    plywood
Delivery Detail:   Within 30 days after order confirmation

Performance & Features

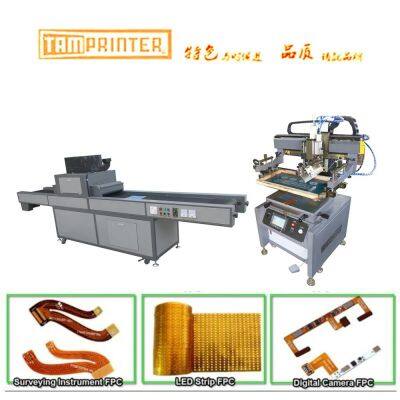

1. This line is composed of vertical screen printer, UV dryer and collecting device.
2. It is a fully automatic production line which takes off material automatically.

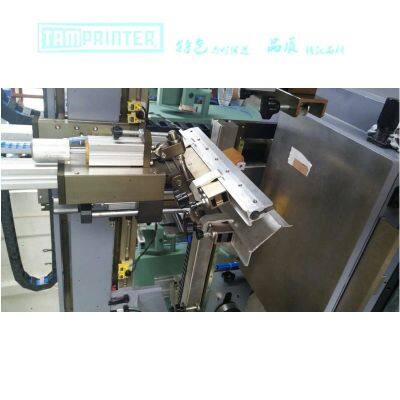

3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).
4. It can not only save human labor, but also improve working efficiency of printing machines.
5. It applies to printing on membrane switch, sheet metal, plastic, plastic film etc.
