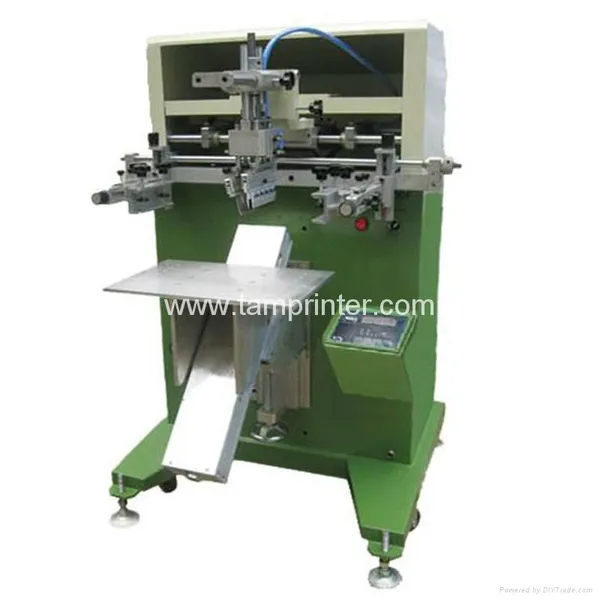

TM-400F flat screen printer
Technical parameters:
Max printing diameter |
DIM150mm |
Max printing thickness |
300mm |
Max worktable size |
250X400mm |
Max. printing area |
230X380mm |
Max printing speed |
1200pcs/hr |
Air consumption |
110litre/min(6bar) |
Power |
110/220V 60/50Hz |
Dimensions |
870X1000X1310mm（L X W X H） |
Weight |
160kg |
Application:
This device is suitable for plastic products, electronics, hardware, cosmetics, gifts, leather goods, toys, stationery, wood and glass products and other industries.
Machine features：
1. The screen printer with Microcomputer control high degree of automation, simple operation.
2. Using the German BOSCH, FESTO pneumatic components such famous factory, reliable performance.
3. Back to the oil scraper dual mode selection; adapt to various printing requirements.
4. The printing stroke and speed are adjustable to meet different printing requirements.
5. Automatic balancing scraper, can ensure equalized printing pressure.
6. The screen printer is using imported axis, so that the screen scraper smooth glide sleeve printing.
7. Slide speed can be independently adjusted, easier to use, fast.
8. Table movements using oblique desktop glide, more convenient replacement product for printing.
flat screen
