Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > TAM-Z3 Automatic Screen Printing With Drying Process Kit
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Tamprinter
Model Number:
TM-Z3
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
7 days
Related Products
-
TAM- Z4 Plastic Thin Sheet Clean Room Screen Printing EquipmentNegotiableMOQ: 1 Set -
TAM-Z2 Automatic Membrane Switch Screen Printing SetNegotiableMOQ: 1 Set
-
TM-400E Cylinder Screen Printer /keg Screen PrinterNegotiableMOQ: 1 Set
-
TM-400F Flat Screen Printer Colour Recognition Locate Screen Printing MachineNegotiableMOQ: 1 Set
-
Large Cylinder Screen Printer TM-MK Cylindrer Screen PrinterNegotiableMOQ: 1 Set
Brand Name
Tamprinter
Model Number
TM-Z3
Product Description
TAM-Z3 Automatic Screen printing with drying process kit
Technical parameters
Specification
Applications:
This multi-purpose flat screen printer line is applicable to print patterns on the flat surface. The colors can be either assorted or fixed by connecting a number of machines or separating machines to print so as to meet different customers' needs to the most extent. Besides, its favorable price ratio will drive the product to be used by more and more small and medium-sized enterprises.
Details

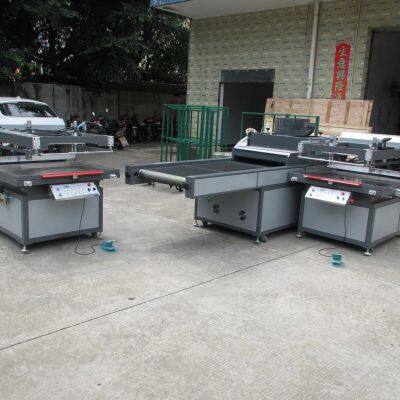

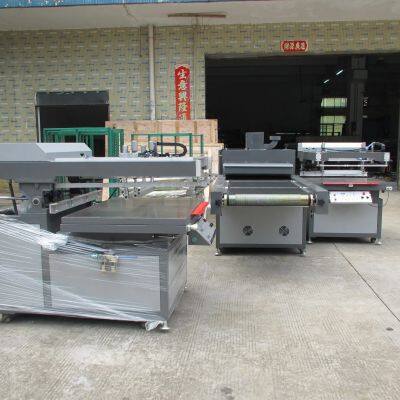

1. Composed of two screen printer and a UV dryer
2. Fit for flexible materials such as paper and PE plastic film
3. Machine can customize according to customer's requirements.
NOS.1 Product Code: 8443192290
Description: Other flat screens
Reporting elements:
1 Name: screen printing units
2 Purposes: printed patterns on flat products, text
3 Principle: When printing squeegee squeeze through, so that the ink is transferred through the mesh part of the graphic to the substrate to form the same with the original graphic
4 feeding mode: Manual
5 pieces Size: 700 * 1000mm
6 brands: TAMPRINTER
7 Model:. TMP-70100
NOS.2 Product Code: 8419399030
Product Description: Industrial furnaces and ovens with other resistance
Reporting elements:
1 Name: UV light curing machine
2 Uses: dried product
3 heating principle: heating and drying the product by UV lamp
4 Brand: TAMPRINTER
5 Model:. TM-UV750-L
6 whether the humidity function: no
NOS.3 Product Code: 8428399000
Product Description: Mechanical suction mouth rewinding machine
Reporting elements:
1 Name: Robot
2 Purposes: printed material received
3 Brands: TAMPRINTER
4 Models: None
Any questions will be highly appreciated!
Technical parameters
Specification
| Type | TMP-70100 |
| HS CODE | 8443192290 |
| Worktable size(mm) | 800*1100 |
| Max print area(mm) | 700*1000 |
| Max plate size(mm) | 1000*1300 |
| Printing speed(pcs/h) | 500-1200 |
| weight (kg) | 480 |
| Rated voltage(V/Hz) | 220V50Hz |
| Model Parameter | TM-UV750-L |
| Conveyorbelt width(mm) | 730 |
| Effective range (mm) | 750 |
| Product max height (mm) | 40 |
| Conveyor speed (m) | 2~20 |
| Power(P/V/Hz) | 3/380/50 |
| UV lamp(KW/2pcs) | 5.6 |
| Weight(kg) | 300 |
| Take the feed rate (pcs/h) | 1000 |
| Dimension(L*W*H)mm | L1500* W 700* H 200 |
| weight(kg) | 40 |
Applications:
This multi-purpose flat screen printer line is applicable to print patterns on the flat surface. The colors can be either assorted or fixed by connecting a number of machines or separating machines to print so as to meet different customers' needs to the most extent. Besides, its favorable price ratio will drive the product to be used by more and more small and medium-sized enterprises.
Details
1. Composed of two screen printer and a UV dryer
2. Fit for flexible materials such as paper and PE plastic film
3. Machine can customize according to customer's requirements.
NOS.1 Product Code: 8443192290
Description: Other flat screens
Reporting elements:
1 Name: screen printing units
2 Purposes: printed patterns on flat products, text
3 Principle: When printing squeegee squeeze through, so that the ink is transferred through the mesh part of the graphic to the substrate to form the same with the original graphic
4 feeding mode: Manual
5 pieces Size: 700 * 1000mm
6 brands: TAMPRINTER
7 Model:. TMP-70100
NOS.2 Product Code: 8419399030
Product Description: Industrial furnaces and ovens with other resistance
Reporting elements:
1 Name: UV light curing machine
2 Uses: dried product
3 heating principle: heating and drying the product by UV lamp
4 Brand: TAMPRINTER
5 Model:. TM-UV750-L
6 whether the humidity function: no
NOS.3 Product Code: 8428399000
Product Description: Mechanical suction mouth rewinding machine
Reporting elements:
1 Name: Robot
2 Purposes: printed material received
3 Brands: TAMPRINTER
4 Models: None
Any questions will be highly appreciated!
