Good Standard Vertical Electric Screen Printer with LED UV Dryer Kit

TAM- Z4 A4 thin EL panels printing uv curing equipment kit

Advantages:


1,  Electric printing runs smoothly, High precision printing;

2,  Cold light source , Drying sheet is not deformed;

3,  Energy saving and environmental protection, Suitable for clean room(dust-free workshop).

Technical parameters:


Plate Type: Screen Printer

Condition: New

Place of Origin: Shenzhen, China (Mainland)

Brand Name: Tamprinter

Model Number: TAM-Z4

Application Scope:

machine for printing plastic sheet (polycarbonate, ABS, PET, PS), paper sheet, package ,nameplate ,colorful glittering glass ,Light Guide Plate , lens ,Membrane switch,EL panels printing etc.

Automatic Grade: Semi Automatic

Color & Page: Single Color

Warranty: screen printer 18 months, led uv machine 24months

After-sales Service Provided: Engineers available to service machinery overseas

Packaging: plywood

Delivery Detail: 20 workdays after payment

Performance & Features

1. This line is composed of vertical screen printer(Up-Down, Left-Right, Electric; squeegee and ink return scraper pneumatic), water-cooled system LED UV tunnel dryer.
2. It is a semi automatic production line which upload and download manual.
2.1 screen printing machine Features:

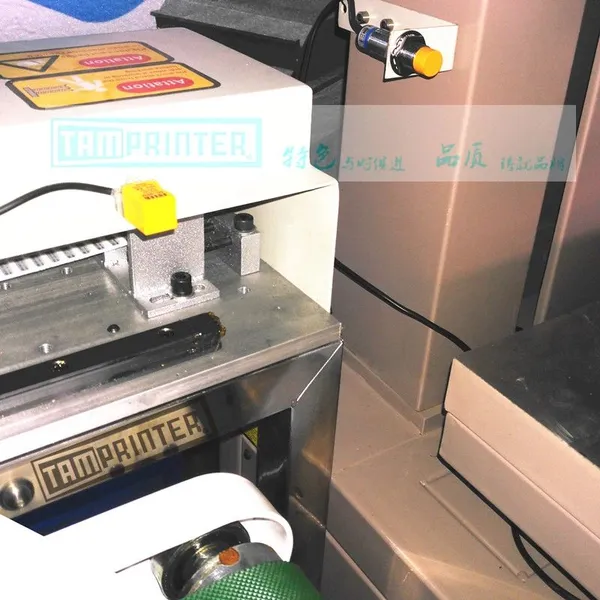

2.1.1.Printing transmission is driven by the electric motor, synchronous belt drive.
2.1.2.Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.
2.1.3.Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
2.1.4.Vacuum adsorption worktable.
2.1.5.The working table has a vernier regulation system (can move left and right, forward and backward)that makes registration more correctly and simply.
2.1.6.With security devices to make the head printing stop on the upper position that is more reliable and safer.
2.1.7.The electronic control unit(ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain

2.2. UV LED advantages
2.2.1, long life: life is a traditional mercury lamp of type of curing machine more than 10 times, about 25000-30000 hours.
2.2.2, cold light source, no radiation, according to the product surface of low temperature, heat damage to solve the long existing in optical communication, LCD production problems. Especially suitable for LCD sealing side requiring small temperature, film printing and so on.
2.2.3, calorific value is small, can solve the great calorific value of mercury lamp spray equipment and personnel intolerable.
2.2.4, instant light, do not need to preheat immediately reached 100% uv output power.
2.2.5, life is not affected by the number of open and close.
2.2.6, high energy, light output stability, uniform irradiation effect is good, improve production efficiency.
2.2.7, can be customized effective radiation area, from 20 mm to 1000 mm in length.
2.2.8, do not contain mercury, also won't produce ozone, replacement of traditional light source technology is a safer, more environmentally friendly option.
2.2.9, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing press, can save 90% energy.
2.2.10, maintenance cost is almost zero, use UVLED curing equipment to save at least 10000 yuan a year/material fee.

 Tamprinter Printing Machinery, one of the largest automatic membrane switch screen printing set manufacturers and suppliers in China , is one of the most famous brands in the world printing industrial. professional Equipment factory, we can offer you TAM-Z3 semi automatic membrane switch screen printing set with high precision and reliable performance. Welcome to buy our quality equipment made in China and experience our customized service.
