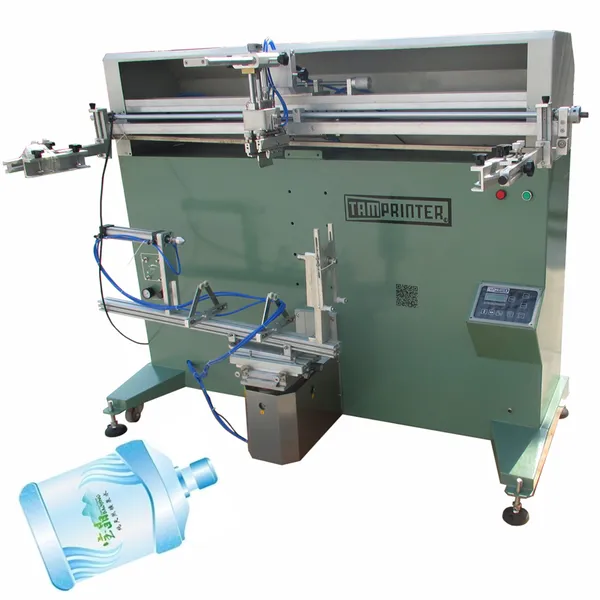

Bucket screen printing machine TM-1200E Technical parameter:
/v_show/id_XNjQzNjcxMzg0.html
Model No. |
TM-1200E |
Printing diameter |
Φ100mm~Φ310mm |
Max printing thickness |
340mm |
Max substrate arc length |
980mm |
Max printing speed |
500pcs/hr |
Air consumption |
110litre/min(6bar) |
Power |
110/220V 60/50Hz |
Dimension |
1.8*1*1.4m |
Weight |
460kg |
Bucket printing machine for 5 galon bottle printing Specifications
1. screen printer for large bucket,barrel,bottle,drum printing
2. good quality,long working life
3. high safety,reliability
4. Cylinder screen printers are multifunctional screen printing machine. They are suitable to print on flat, round, oval shaped products.
5. Cylinder screen printers can print one color at one time. Once replacing frame and ink, they can print 2, 3colors
Bucket screen printing machine Function
1. Microprocessor controls, high automation and easy operation.
2. 4-digit auto counter built-in.
3. With the function of cylindrical and conical printing.
4. Automatic ink scraping, ink withdrawing and worktable lifting.
5. Printing stroke and speed is adjustable to meet different needs.
6. Automatic squeegee balance-keeping ensures equal printing pressure.
7. Worktable and screen frame can be adjusted slightly in horizontal and vertical direction.
8. High precision printing and easy adjustment.
Testing Please provide:
1. 110V or 220V power supply.
2. 5-7 bar compress air.
3. Screen Frame 1 pcs.
4. A jig 1pcs.
5. 5-10 pcs product samples.
