THERM-O-DISC Heavy-duty Sealed Thermostat 14T Series,240VAC 25A,,Certified by UL & CSA

The 14T series of heavy-duty sealed bimetal disc controls from THERM-O-DISC meets the higher electrical requirements of commercial applications. The design provides moisture resistance for moisture prone environments. The snap-action of the 1” temperature sensing bimetal disc provides high-speed contact separation resulting in exceptional life characteristics at electrical loads up to 25 amps at 120/240VAC. A variety of mounting configurations, lead wires and terminations give maximum design flexibility. The heavy-duty construction and long life characteristics have made the 14T a popular choice for heating, ventilation and air conditioning systems.

Features and Benefits:
• Sealed construction provides moisture resistance for moisture prone environments.
• High-speed contact separation ensures long contact life.
• A wide variety of mounting configurations, lead wires and terminations provide maximum design flexibility.
• Large 25 amp capacity allows direct control of compressors and fans, reducing the need for additional components

Switch Actions and Typical Applications:
Automatic Reset Single Pole Single Throw
Automatic Reset Single Pole Double Throw

Mounting Configurations:
Surface Mounting
No Mounting Flange

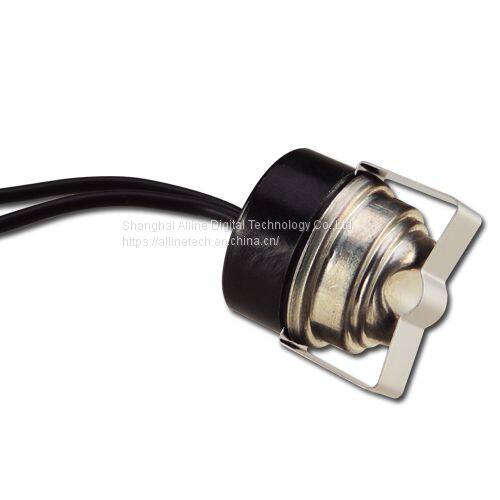

Tube Mounting

Agency Recognition:
UL (File. E29653) ----- 120VAC 25A (100,000cycles) / 240VAC 25A (100,000cycles) / 277VAC 25A (100,000cycles)
CSA (File. LR10281) ----- 120VAC 25A (30,000cycles) / 240VAC 25A (30,000cycles) / 120VAC 15A (30,000cycles) / 240VAC 15A (30,000cycles) / 120VAC 10A (100,000cycles)

Type:
THERM-O-DISC 14T11
THERM-O-DISC 14T12
THERM-O-DISC 14T13
THERM-O-DISC 14T21
THERM-O-DISC 14T22
THERM-O-DISC 14T23

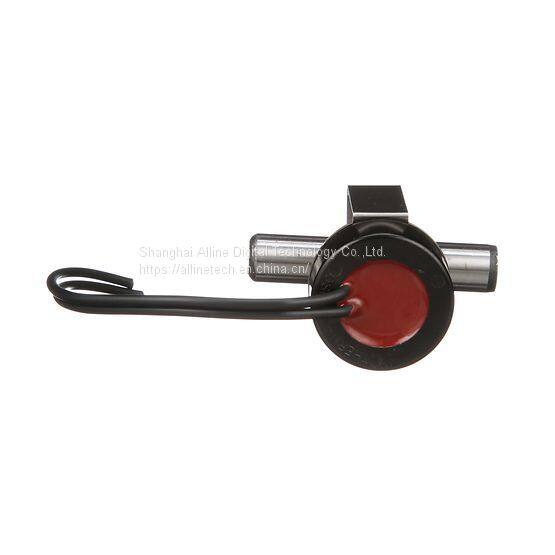

THERM-O-DISC 14T31
THERM-O-DISC 14T32
THERM-O-DISC 14T33
For Example:
14T21 27659 L47F
14T21 30246 L25C

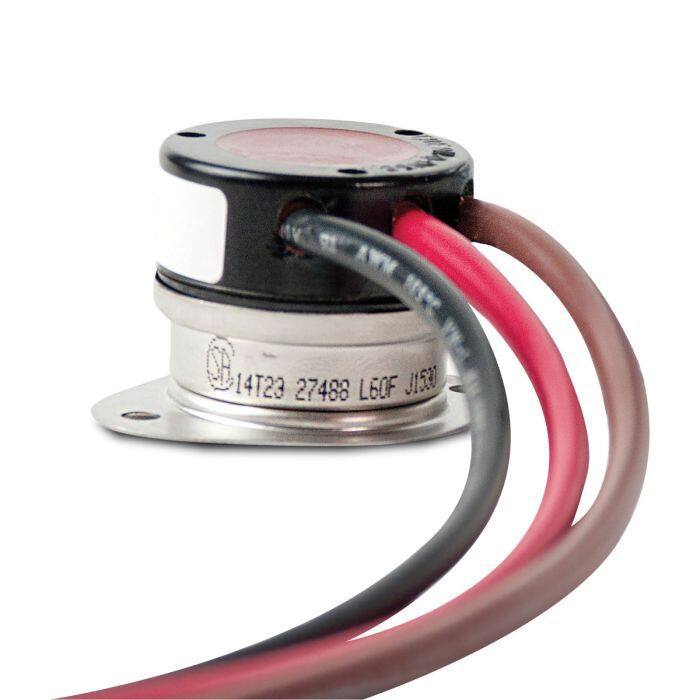

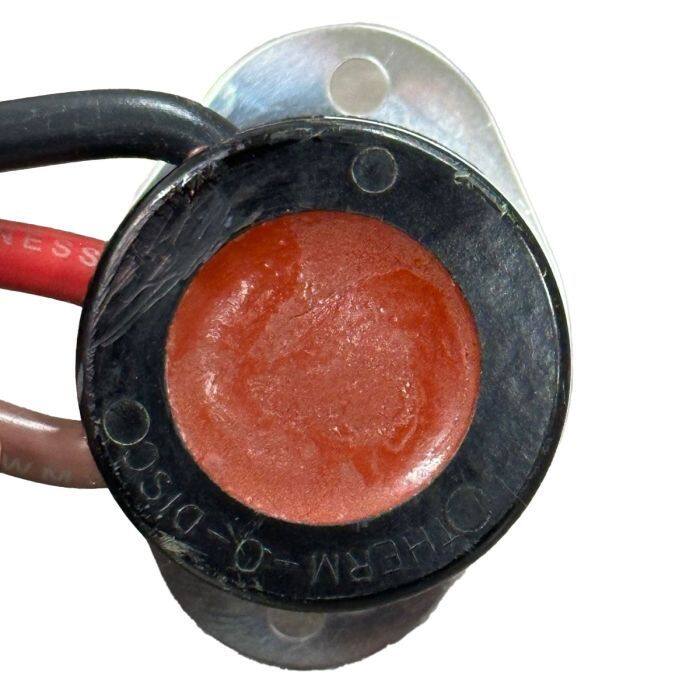

14T23 27488 L60F

14TC23 27483 L60F
