Help CenterCustomized Cross Groove Brazed Grinding Head 10mm Carbon Fiber Drilling and Edge Trimming Tolerance Small Diamond 50 Mesh
Related Products
-
Electroplating Bond Mould Gate Sleeve Grinding Head 60 ° Conical Cubic Boron Nitride Grinding Head Diameter 7mmCNY 220 - 260MOQ: 10 Pieces -
R4.7 Hemisphere Diamond Grinding Head Spiral Groove Design, Glass Fiber Drilling, Reaming and TrimmingCNY 180 - 200MOQ: 10 Pieces
-
Shaped Diamond Nail Grinding Head Polishing Dog Nails Sharp Electroplated Diamond Raw Material 50 MeshCNY 250 - 300MOQ: 10 Pieces
-
9mm Cup Shaped Diamond Grinding Wheel With Handle, 3-handle Countersunk Hole Electroplated Grinding Rod, Inner Hole Sand Planting SDC200 MeshNegotiableMOQ: 10 Pieces
-
Electroplated CBN Grinding Stick 1.3mm Cubic Boron Nitride 600 Mesh Mold Inner Hole Fine Trimming BurrCNY 40 - 50MOQ: 10 Pieces
Slotted brazing grinding rods are suitable for processing various carbon fiber materials, such as aviation model accessories, models, composite materials, and fiber drilling, slot cutting, micro hole processing, small holes, and precision grinding operations in DIY projects.
Usually, a grinding wheel cutting machine is used to cut carbon fiber board, and high-speed rotation should be maintained to avoid burrs. For inner hole processing, alloy grinding heads can be used for grinding, but carbon fiber materials have significant wear and tear, resulting in more burrs, poor smoothness, and reduced efficiency. In the aerospace field, brazed diamond high-speed grinding heads can be used for drilling, expanding, and trimming operations.

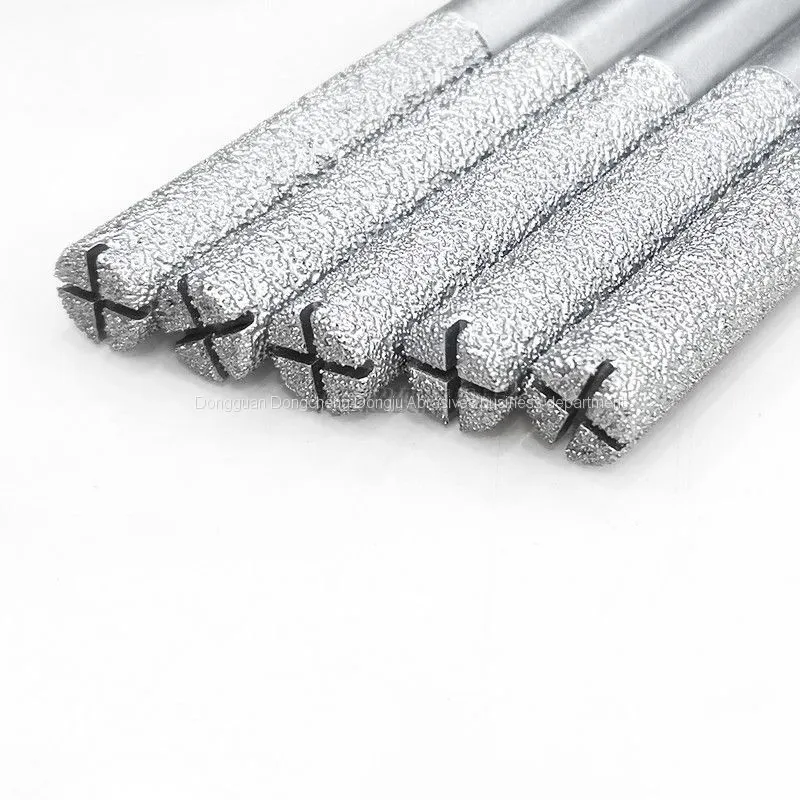

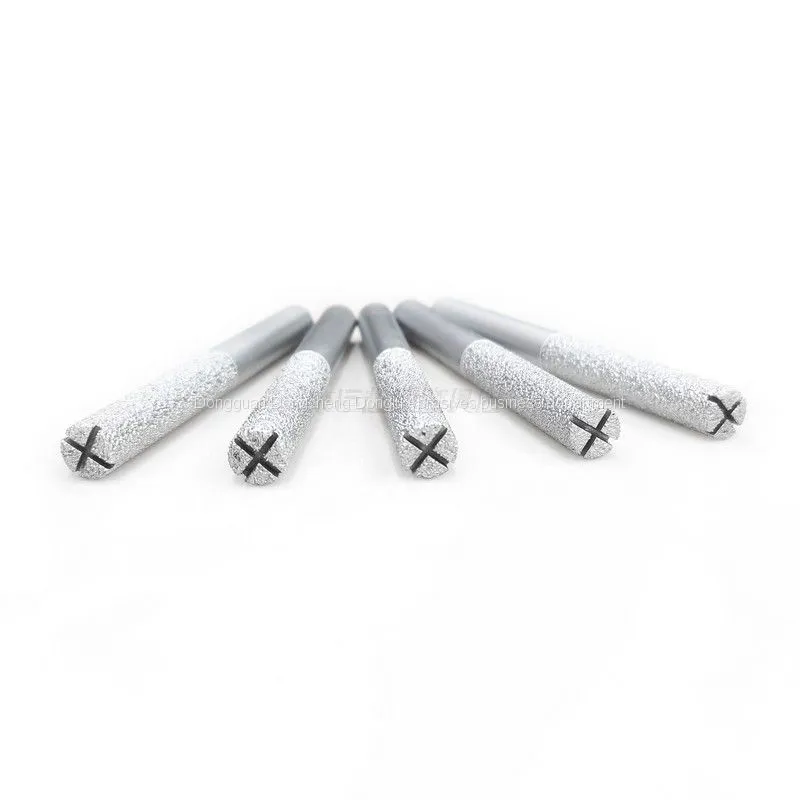

By utilizing the high-speed operation of Dongju brazing grinding rod, holes with a certain diameter can be drilled. When the grinding head rotates at high speed, the friction between the grinding head and the carbon fiber board may generate heat, but the cross cooling groove can discharge debris and dissipate heat, which has little impact on the carbon fiber material.

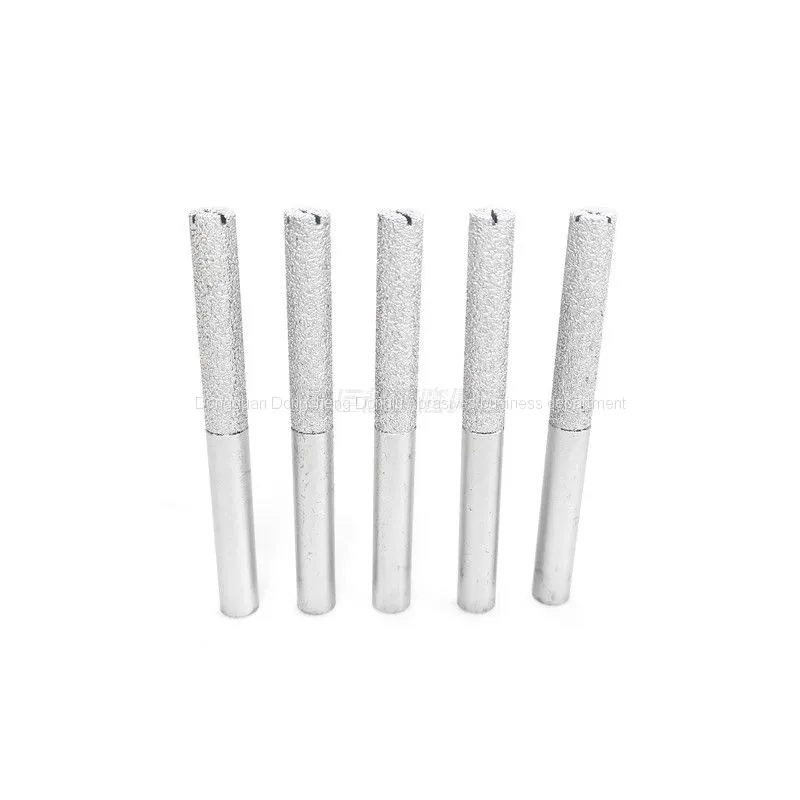

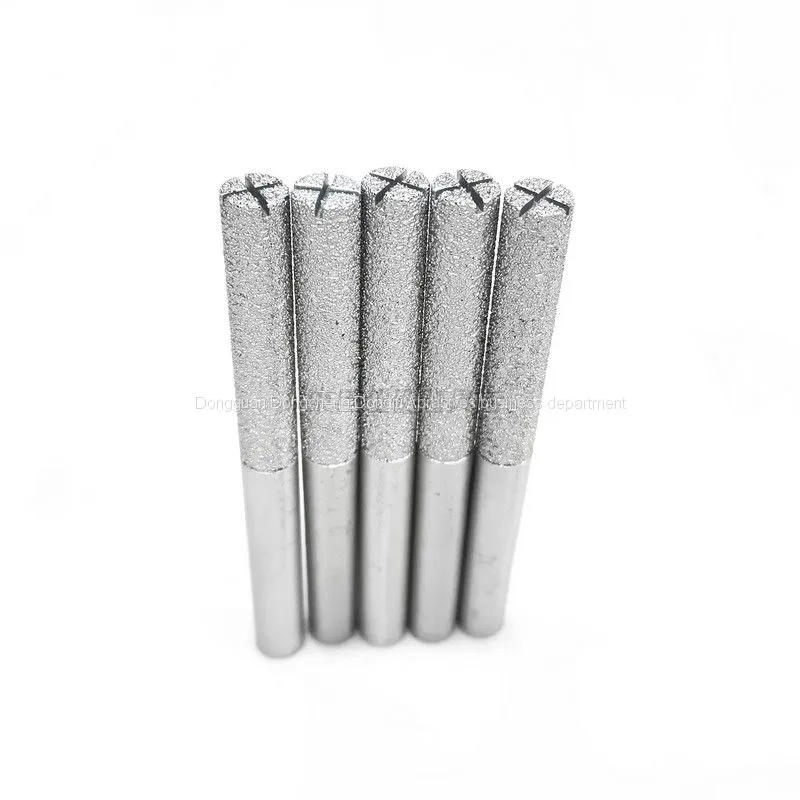

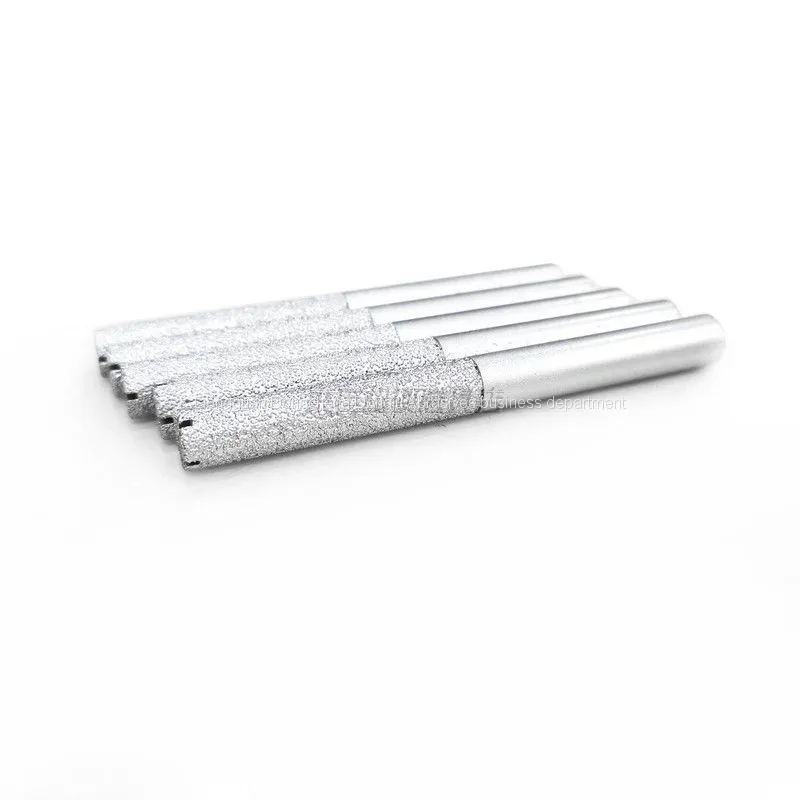

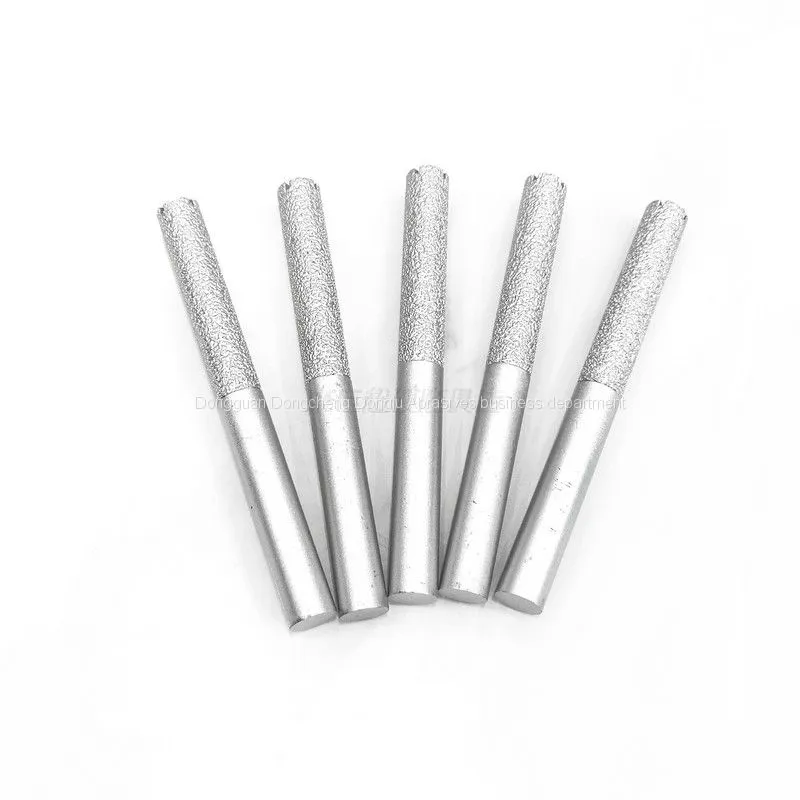

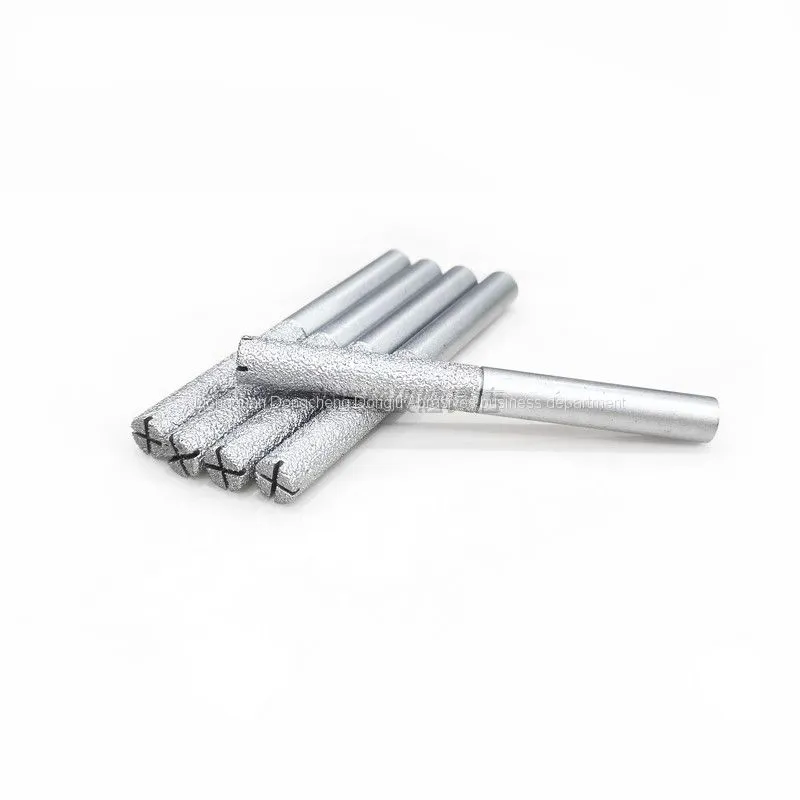

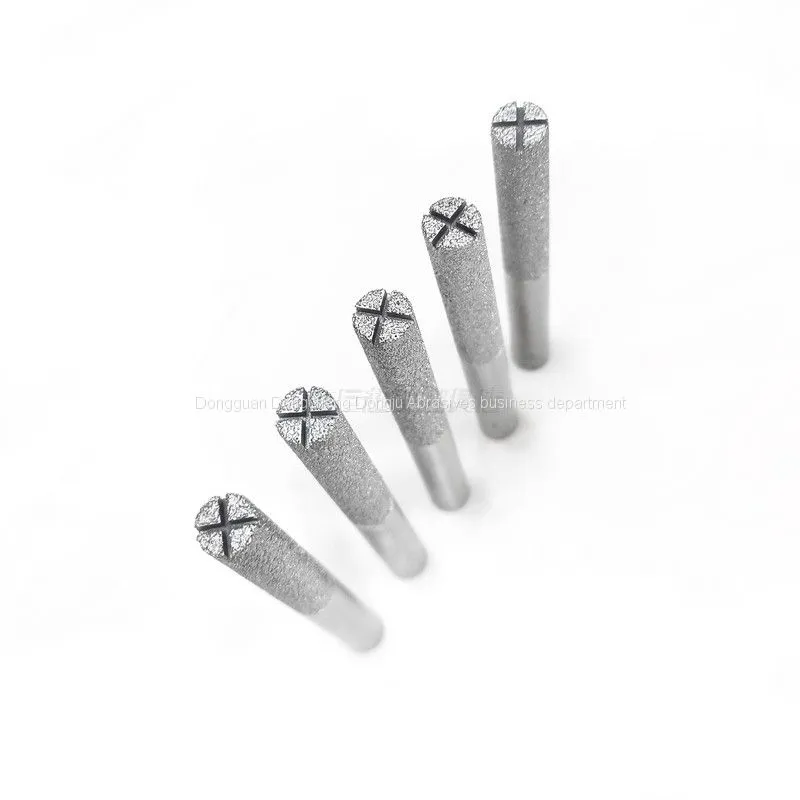

Name: Cross groove brazed grinding rod
Shape: cylindrical head
Abrasive: Diamond
Binder: brazing method
Particle size: 50 mesh

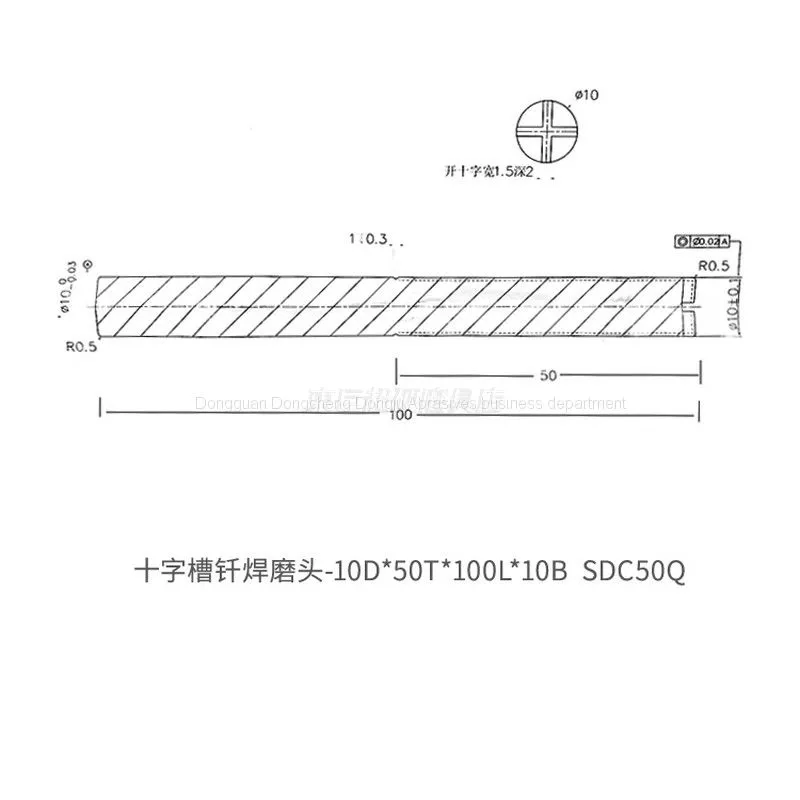

Diameter: 10mm
Sand length: 50mm
Total length: 100mm
Handle diameter: 10mm
Slot size: slot depth 1.5mm, slot width 2mm
Tolerance: plus or minus 0.05
Usage: Carbon fiber material drilling, reaming, trimming, internal hole grinding, etc
Kind reminder: Starting from 10 units, delivery within 15 working days
Although manual drilling is feasible, its efficiency and accuracy are not as good as mechanical grinding head drilling. Mechanical punching fixes the carbon fiber board on the machine, and the program automatically controls the grinding head to complete operations such as punching, expanding, trimming, shearing, and trimming. On equipment such as engraving machines and large machining centers, simply fix the board in advance and input the program, and the entire punching process can be automatically completed with one click control, which is very convenient.
