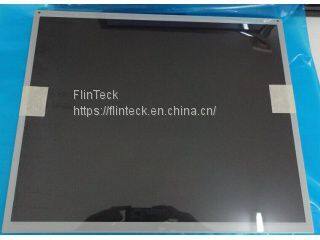

G170EG01 V1 AUO 17.0 Inches Panel Type A-Si TFT-LCD

Panel brand AUO (AUO)

Panel model G170EG01 V1

Panel size 17.0 inches Panel type a-Si TFT-LCD, LCD module

Resolution 1280(RGB)×1024, SXGA, 96PPI pixel layout RGB vertical stripes

The display area is 337.92 (w) × 270.336 (h) mm.

The external dimension is 358.5 (w) × 296.5 (h) × 18 (d) mm.

Opening area is 341.6 (w) × 274.0 (h) mm.

Surface treatment fog surface, Hard coating (3H)

Display brightness is 350 cd/m² (Typ.)

Contrast ratio 800:1 (Typ.) (transmission)

Recommended viewing angle 6 o'clock

Response time 20/10 (Typ.)(Tr/Td) ms

Viewing angle 80/80/60/80 (Typ.)(CR≥10)

Display mode TN, normally white display, transmissive

Support color 16.7M, 72% NTSC light source type WLED, 50K hours, including LED driver.

Weight 1.35Kgs (Typ.) Application product frame frequency 60Hz touch technology no touch.

Interface type 30 pins LVDS (2 ch, 8-bit), terminal

The voltage supply is 5.0V (Typ.)

Working temperature of application environment:-30 ~ 85 C; Storage temperature:-30 ~ 85 C.
