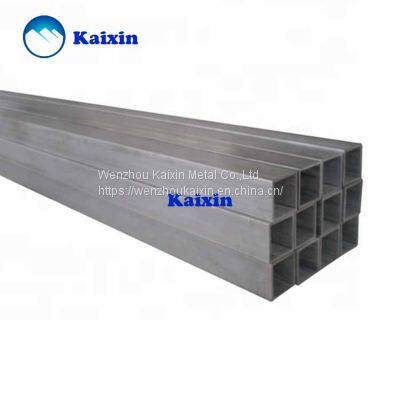

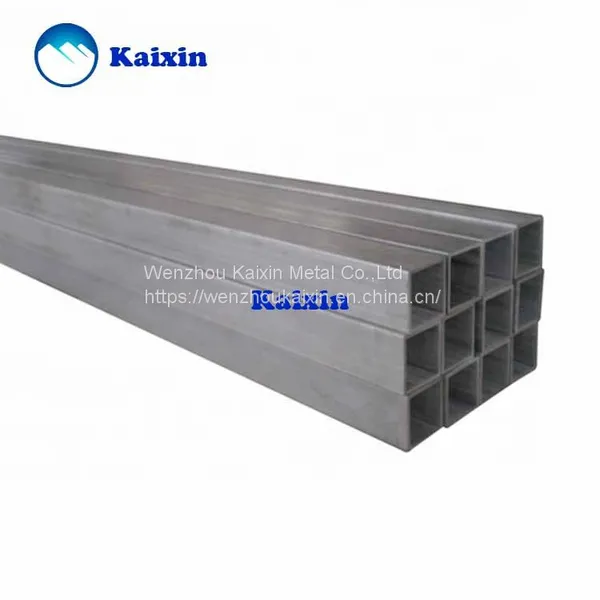

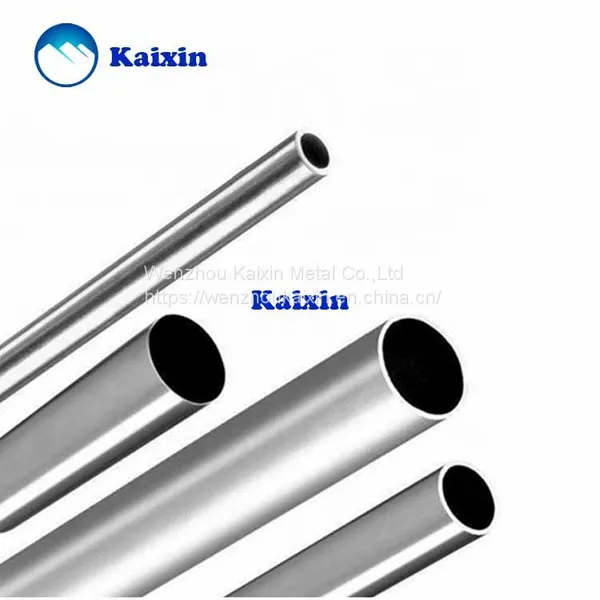

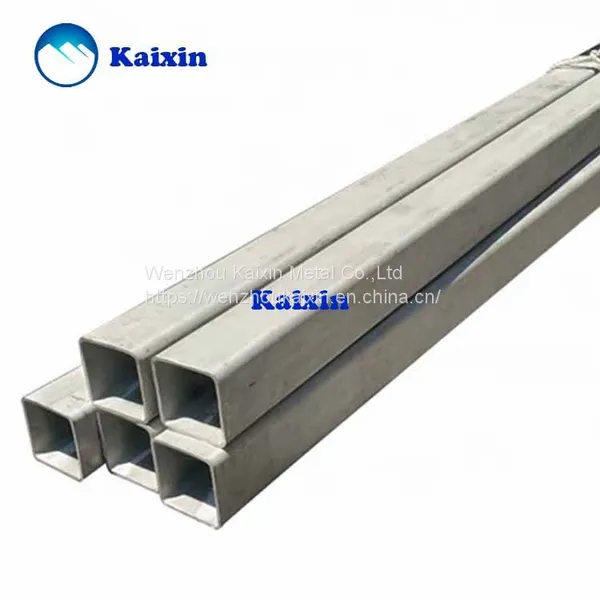

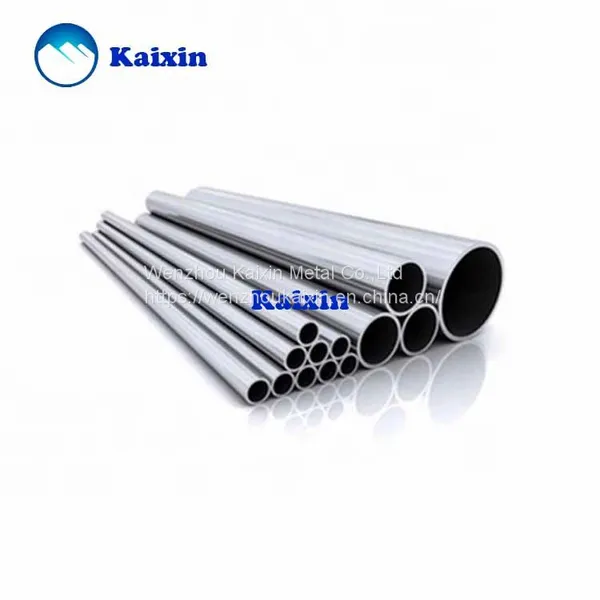

Name: Stainless Steel 347 Pipe
Size: 1/2" NB - 24" NB
Material:Stainless Steel
Type：Seamless, ERW, Welded, EFW
Thickness range: 0.1 to 60 mm
Surface Treatment: Polishing, Hairline, Pickled, etc.
Finished condition: Round, Square, Rectangular, Coil，U Tube
Application: Petrochemical, Oil & Gas； Geothermal, Mining；Chemical Process, Pharmaceutical, Biomass；Sea Water, Water Desalination； LNG (Liquefied Natural Gas), Nuclear Power, Solar Power。
Model number:
Original: Wenzhou,Zhejiang
Standard:GB, ASTM, JIS, EN, GOST, AISI, DIN, ASME, AMS
Brand:
Technics:
Package: Packed in woven bag, or put in wooden case
Price:
Delivery: Accord Quantity
Certificate:
Production ability:
Product Detail
347 stainless aerospace tubing is made from an austenitic stainless steel offering an excellent resistance to intergranular corrosion following exposure to temperatures in the chromium carbide precipitation range from 800 to 1500° F (427 to 816°C). Alloy 347 alloyed with columbian-tantalum (also referred to as niobium) allowing good mechanical properties at high temperatures.
Table of Content：
1. Specification of 347 Stainless Steel Seamless pipe
2. Applications of 347 Stainless Steel Seamless pipe
3. ASTM A312 TP347 SS Seamless Pipes Equivalent Grades
4. Chemical Composition Of ASTM A312 TP 347 Stainless Steel Seamless Pipe
5. Mechanical Properties Of ASTM A312 TP 347 Stainless Steel Seamless Pipe
6. Physical Properties Of ASTM A312 TP 347 Stainless Steel Seamless Pipe
7. Thermal Properties Of ASTM A312 TP 347 Stainless Steel Seamless Pipe
8. Electrical Properties Of ASTM A312 TP 347 Stainless Steel Seamless Pipe
9. 347 Stainless Steel Seamless Pipe price list
Specification of 347 Stainless Steel Seamless pipe
Standard |
GB, ASTM, JIS, EN, GOST, AISI, DIN, ASME, AMS |
Grade |
347 |
Type |
Seamless, ERW, Welded, EFW |
Length |
01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
End |
Plain End, Bevelled End, Threaded |
Applications of 347 Stainless Steel Seamless pipe
l Oil and gas equipment
l Offshore technology
l Seawater desalination plants
l Chemical industry, especially when handling chlorides
l Flue-gas cleaning
l Pulp and paper industry
l Cargo tanks and pipe systems in chemical tankers
l Firewalls and blast walls on offshore platforms
l Bridges
l Storage tanks
l Pressure vessels, reactor tanks, and heat exchangers
l Rotors, impellers and shafts
ASTM A312 TP347 SS Seamless Pipes Equivalent Grades
STANDARD |
UNS |
WERKSTOFF NR. |
EN |
SS 347 |
S34700 |
1.4550 |
X6CrNiNb18-10 |
Chemical Composition Of ASTM A312 TP 347 Stainless Steel Seamless Pipe
Element |
347 |
Carbon* |
0.08 |
Manganese |
2.00 |
Phosphorus |
0.045 |
Sulfur |
0.03 |
Silicon |
0.75 |
Chromium |
17.00-19.00 |
Nickel |
9.00-13.00 |
Columbium +Tantalum** |
10xC min to 1.00 max |
Tantalum |
— |
Titanium** |
— |
Cobalt |
— |
Nitrogen |
— |
Iron |
Balance |
Mechanical Properties Of ASTM A312 TP 347 Stainless Steel Seamless Pipe
Elongation at break ( % ) |
|
Hardness - Brinell |
160-190 |
Izod impact strength ( J.m-1 ) |
20-136 |
Modulus of elasticity ( GPa ) |
190-210 |
Tensile strength ( MPa ) |
520-1100 |
Physical Properties Of ASTM A312 TP 347 Stainless Steel Seamless Pipe
Density ( g.cm-3 ) |
7.93 |
Melting point (°C ) |
1400-1425 |
Thermal Properties Of ASTM A312 TP 347 Stainless Steel Seamless Pipe
Coefficient of thermal expansion ( x10-6 K-1 ) |
16-18 @ 20-100°C |
Maximum use temperature in air ( °C ) |
800 |
Electrical Properties Of ASTM A312 TP 347 Stainless Steel Seamless Pipe
Electrical resistivity ( µOhm.cm ) |
70-73 |
