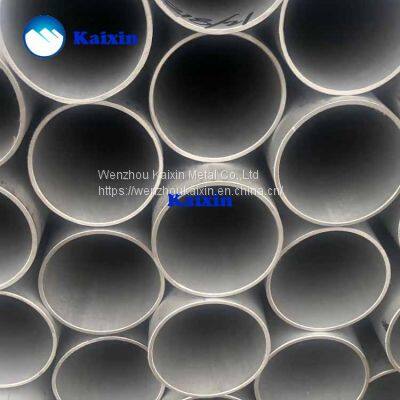

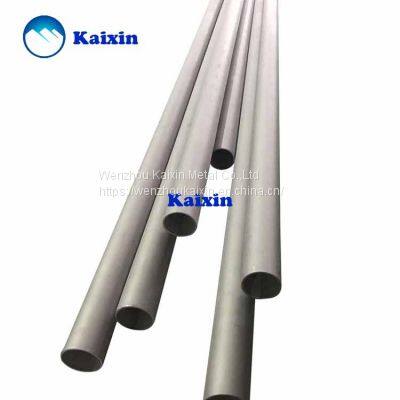

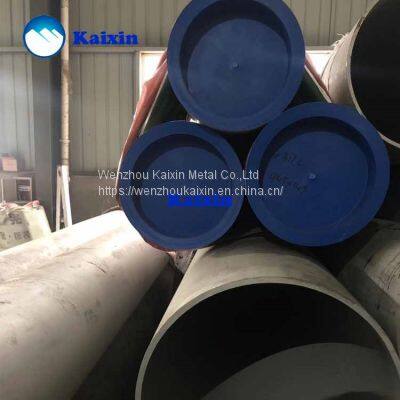

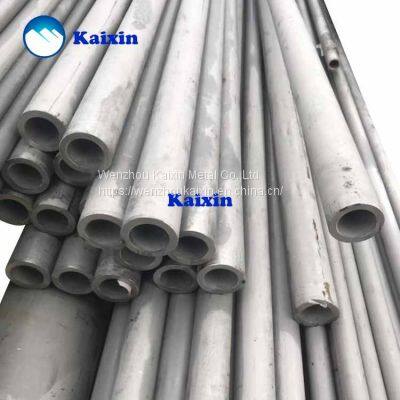

Name: SS254 SMO Pipe
Size：1/8” to 48”, Seamless Pipes up to 24”
Material: SS254
Type：ERW/ Seamless / EFW / Fabricated /Welded / DOM/CDW /CEW SS254 SMO Pipe
Thickness range: 0.4mm up to 30.00 mm, Schedules 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH.
Surface Treatment: Polishing, Hairline, Pickled, etc.
Finished condition: Round, Square, Rectangular, Coil，U Tube
Application: Petrochemical, Oil & Gas； Geothermal, Mining；Chemical Process, Pharmaceutical, Biomass；Sea Water, Water Desalination； LNG (Liquefied Natural Gas), Nuclear Power, Solar Power。
Model number:
Original: Wenzhou,Zhejiang
Standard: EN, DIN, AISI, AMS, SAE, DTD, DS, NF, JIS, ASME, ASTM, GB, TOCT
Brand:
Technics:
Package: Packed in woven bag, or put in wooden case
Price:
Delivery: Accord Quantity
Certificate:
Production ability:
Product Detail
SS254 SMO Pipe is one such pipe that is considered as a high austenitic grade. It has a strength that is 3 times the stainless steel 300 series. SMO SS254 pipe efficiently resists pitting, crevice corrosion and chloride stress corrosion cracking.
SS254 SMO Seamless Pipe is usually used as replacements in components that are critical. Where various other grades fail due to pitting and chloride stress corrosion cracking. These SS254 SMO Stainless Steel Pipes are said to be cost efficient and technically adequate that allows the value of the design to be 50% higher when compared to other austenitic stainless steels. Thus the thin walls save cost to a greater extent. SS254 SMO pipes are often known as high end austenitic steel. It is easy to fabricate and weld these pipes and tubes. It is suitable for use in seawater and brackish water
Table of Content：
1. Specification of SS254 SMO Pipe
2. Applications of SS254 SMO Pipe
3. SMO SS254 Pipes Chemical Composition
4. SMO SS254 Pipe Mechanical Properties
5. Equivalent Grades for SS254 SMO Pipe
6. UNS S31SS254 Pipe Wall Thickness
7. Thermal Properties Of Alloy SS254 Thin Wall Pipe
8. SS254 SMO EFW Pipe Pressure Rating
9. SS254 SMO Pipe price list
Specification of SS254 SMO Pipe
Standard |
EN, DIN, AISI, AMS, SAE, DTD, DS, NF, JIS, ASME, ASTM, GB, TOCT
|
Grade |
SS254 SMO |
Type |
ERW/ Seamless / EFW / Fabricated /Welded / DOM/CDW /CEW SS254 SMO Pipe |
Length |
Single Random Length, Double Random Length And Customize Size. |
End |
Plain End, Bevelled End, Threaded |
Applications of SS254 SMO Pipe
l Heat Exchangers
l Instrumentation
l Hydraulic & Pneumatic system
l Nuclear Power Plants
l Automotive industries
l Aerospace
l Medical
l Pharmaceutical
l Oil coolers
l Pre-heater
l Condenser
l LNG
l Pulp and paper
l Offshore construction
l Food and pharmaceutical processing
l Desalination and waste water projects
l Electrical Submersible Pump
SMO SS254 Pipes Chemical Composition
SMO SS254 |
Ni |
C |
Mo |
Mn |
Si |
Fe |
Cu |
S |
P |
Cr |
17.5 – 18.5 |
0.02 max |
6 – 6.5 |
1 max |
0.8 max |
– |
0.5 – 1 |
0.01 max |
0.03 max |
19.5 – 20.5 |
SMO SS254 Pipe Mechanical Properties
Density |
Melting Point |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
8.0 g/cm3 |
1320-1390 ℃ |
300 |
650 |
35 % |
Equivalent Grades for SS254 SMO Pipe
STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
EN |
JIS |
SIS |
GOST |
SMO SS254 |
S31SS254 |
1.4547 |
Z1 CNDU 20.18.06Az |
X1CrNiMoCuN20-18-7 |
– |
2378 |
– |
UNS S31SS254 Pipe Wall Thickness
OD |
Pipe WT |
in. |
Sch |
Kg/m |
13.72 |
1.65 |
1/4 |
10S |
0.50 |
13.72 |
2.24 |
1/4 |
40S |
0.64 |
13.72 |
3.02 |
1/4 |
80S |
0.81 |
17.15 |
1.65 |
3/8 |
10S |
0.64 |
17.15 |
2.31 |
3/8 |
40S |
0.86 |
17.15 |
3.20 |
3/8 |
80S |
1.12 |
21.34 |
2.11 |
1/2 |
10S |
1.02 |
21.34 |
2.77 |
1/2 |
40S |
1.29 |
21.34 |
3.73 |
1/2 |
80S |
1.65 |
26.67 |
2.11 |
3/4 |
10S |
1.30 |
26.67 |
2.87 |
3/4 |
40S |
1.71 |
26.67 |
3.91 |
3/4 |
80S |
2.23 |
33.40 |
2.77 |
1 |
10S |
2.13 |
33.40 |
3.38 |
1 |
40S |
2.54 |
33.40 |
4.55 |
1 |
80S |
3.29 |
33.40 |
6.352) |
1 |
160 |
4.30 |
42.16 |
2.77 |
1¼ |
10S |
2.73 |
42.16 |
3.56 |
1¼ |
40S |
3.44 |
42.16 |
4.85 |
1¼ |
80S |
4.53 |
42.16 |
6.352) |
1¼ |
160 |
5.69 |
48.26 |
2.77 |
1½ |
10S |
3.16 |
48.26 |
3.68 |
1½ |
40S |
4.11 |
48.26 |
5.08 |
1½ |
80S |
5.49 |
60.33 |
2.77 |
2 |
10S |
3.99 |
60.33 |
3.91 |
2 |
40S |
5.52 |
60.33 |
5.54 |
2 |
80S |
7.60 |
60.33 |
8.742) |
2 |
160 |
11.29 |
73.03 |
3.05 |
2½ |
10S |
5.35 |
73.03 |
5.16 |
2½ |
40S |
8.77 |
73.03 |
7.01 |
2½ |
80S |
11.59 |
88.90 |
3.05 |
3 |
10S |
6.56 |
88.90 |
5.49 |
3 |
40S |
11.47 |
88.90 |
7.62 |
3 |
80S |
15.51 |
88.90 |
11.132) |
3 |
160 |
21.67 |
101.60 |
3.05 |
3½ |
10S |
7.53 |
101.60 |
5.74 |
3½ |
40S |
13.78 |
101.60 |
8.08 |
3½ |
80S |
18.92 |
114.30 |
3.05 |
4 |
10S |
8.50 |
114.30 |
6.02 |
4 |
40S |
16.32 |
114.30 |
8.56 |
4 |
80S |
22.67 |
114.30 |
13.492) |
4 |
160 |
34.05 |
141.30 |
6.55 |
5 |
40S |
22.10 |
141.30 |
9.53 |
5 |
80S |
31.44 |
141.30 |
15.882) |
5 |
160 |
49.87 |
168.28 |
3.4 |
6 |
10S |
14.04 |
168.28 |
7.11 |
6 |
40S |
28.69 |
168.28 |
10.97 |
6 |
80S |
43.21 |
168.28 |
14.27 |
6 |
120 |
54.75 |
168.28 |
18.262) |
6 |
160 |
68.59 |
219.08 |
8.18 |
8 |
40S |
43.20 |
219.08 |
12.7 |
8 |
80S |
65.63 |
219.08 |
18.23 |
8 |
120 |
91.30 |
219.08 |
23.012) |
8 |
160 |
112.97 |
Properties |
Metric |
Imperial |
Thermal expansion co-efficient (@20-100°C/68-212°F) |
16.5 µm/m°C |
9.17 µin/in°F |
Thermal conductivity |
14 W/mK |
97.2 BTU in/hr.ft².°F |
Pipe O.D. |
Wall Thickness of Pipe (inches) |
|||||||
.028 |
.035 |
.049 |
.065 |
.083 |
.095 |
.109 |
.120 |
|
Working Pressure (psig) | ||||||||
1/8 |
7900 |
10100 |
||||||
1/4 |
3700 |
4800 |
7000 |
9500 |
||||
5/16 |
3700 |
5400 |
7300 |
|||||
3/8 |
3100 |
4400 |
6100 |
|||||
1/2 |
2300 |
3200 |
4400 |
|||||
3/4 |
2200 |
3000 |
4000 |
4600 |
||||
1 |
2200 |
2900 |
3400 |
3900 |
4300 |
|||
