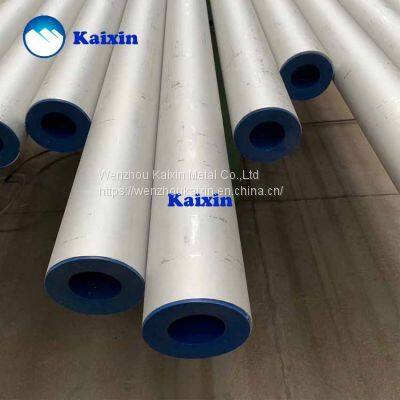

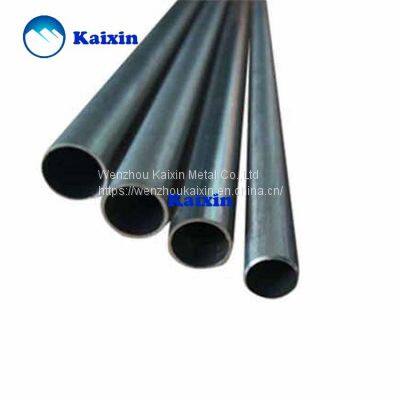

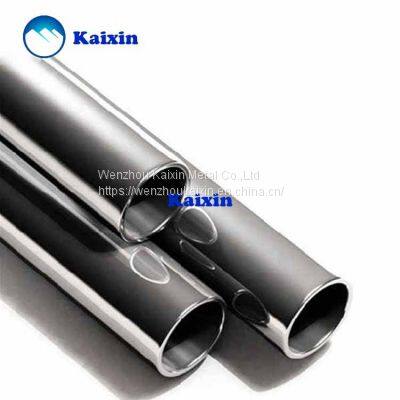

304L Stainless Steel Tube

FOB Price

Negotiable / Ton

1 Ton(Min.Order)

Supply Ability 9999 Ton / Tons per Month
Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Name: 304L Stainless Steel Tube

Size: 1/8" NB TO 30" NB IN

Material: 304L

Type：Seamless, ERW, EFW, Welded, Fabricated

Thickness range: 0.020" –0.220", (special wall thicknesses available)

Surface Treatment: Polishing, Hairline, Pickled, etc.

Finished condition: Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF

Application: Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchange

Model number:

Orignal: Wenzhou,Zhejiang

Standrad:ASTM A213, ASTM A249, ASTM A269, ASME SA213, ASME SA249, ASME SA269, EN 10216-5 TC1 / TC2, PED 97/23/EC, AD 2000, NACE MR0175/ISO 15156

Brand:

Technics:

Package: Packed in woven bag, or put in wooden case

Price:

Delivery: Accord Quantity

Certificate:

Production ability:

Product Detail

SS 304L is the low-carbon derivative of Type 304, and although the two types share many of the same properties, it is the differences in carbon content that differentiates them. SS 304L is used for applications where a low carbon count is required, such as in heavy gauge components. Its different composition from Type 304 also eliminates the need for post-weld annealing to effectively maximize corrosion resistance. Additionally, it also possesses a higher work hardening rate.
304L exhibits excellent resistance in a variety of atmospheres and temperatures, along with the corrosion and oxidation that occurs over time. It is often applied in areas of higher temperatures than Type 304 can endure, and its low carbon allow it to be resistant against carbon precipitation. However, like many stainless steels, it is susceptible to warm chlorine environments and can potential pit and crack.

Table of Content：

1. Specification of 304L Stainless Steel Tube

2. Applications of 304L Stainless Steel Tube

3. Typical Chemical Composition

4. Typical Mechanical Properties

5. Stainless Steel 304L Tube Size Chart

6. Tolerance of UNS S30403 SS Tube

7. Stainless Steel 304l Seamless Round Tubing Dimension Chart

8. 304L Stainless Steel Seamless Tubes Wall Thickness

9. Equivalent Material Grade Of TP 304L Hot Rolled Tube

10. Specification Stainless Steel Tube Price List

Specification of 304L Stainless Steel Tube

Standard	ASTM A213, ASTM A249, ASTM A269, ASME SA213, ASME SA249, ASME SA269, EN 10216-5 TC1 / TC2, PED 97/23/EC, AD 2000, NACE MR0175/ISO 15156
Grade	304L
Type	Seamless, ERW, EFW, Welded, Fabricated
Length	Single Random, Double Random, Standard & Cut length
End	Plain End, Bevelled End, Threaded

Applications of 304L Stainless Steel Tube

l Screws / prostheses / plates

l Medical needles

l Medical syringes

l Catheters

l Heat exchangers

l Curettes

l Sensor probes

Typical Chemical Composition % (max values, unless noted)

Weight %	C	Mn	P	S	Si	Cr	Ni
304L	0.035	2.00	0.045	0.030	1.00	18.0-20.0	8.0-13.0

*304L has a lower carbon content of 0.03% max

Typical Mechanical Properties

Grade	Tensile
	Ultimate/Min		Yield/Min		Elongation/Min
	KSI	MPA	KSI	MPA	%
304L	70	485	25	170	35

Stainless Steel 304L Tube Size Chart

NB Sizes	Schedule 5	Schedule 10	Schedule 40	Schedule 80	Schedule 160
1/4″
1/8″
3/8″
3/4″
1/2″
1″
2″
1 1/4″
3″
1 1/2″
5″
2 1/2″
4″
6″

Wall	Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012	1/8"
.016	1/8" , 3/16"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134	1"
.250	3"
.375	3 1/2"

Tolerance of UNS S30403 SS Tube

NPS	Stainless Steel 304 Tube OD Tolerance
	+		–
	inch	mm	inch	mm
1/8~1 1 /2 > 1 1 /2~4 > 4~8 > 8~18 > 18~26 > 26~34 > 34~48	1/64(0.015) 1/32(0.031) 1/16(0.062) 3/32(0.093) 1/8(0.125) 5/32(0.156) 3/16(0.187)	0.4 0.8 1.6 2.4 3.2 4.0 4.8	1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031) 1/32(0.031)	0.8 0.8 0.8 0.8 0.8 0.8 0.8

Stainless Steel 304l Seamless Round Tubing Dimension Chart

Size OD, Inches	BW Ga.	Wall Dec-In.	ID	Weight Lbs/Ft.
1/8	22	0.028	0.069	0.0290
1/8	20	0.035	0.055	0.0336
3/16	22	0.028	0.131	0.0478
1/4	25	0.020	0.210	0.0491
	22	0.028	0.194	0.0664
	21	0.032	0.187	0.0745
	20	0.035	0.180	0.0804
	18	0.049	0.152	0.1052
	16	0.065	0.120	0.1284
5/16	20	0.035	0.242	0.1039
	18	0.049	0.214	0.1382
	16	0.065	0.182	0.1722
3/8	22	0.028	0.319	0.1038
	20	0.035	0.305	0.1271
	18	0.049	0.277	0.1706
	16	0.065	0.245	0.2152
7/16	18	0.049	0.340	0.2036
1/2	25	0.020	0.460	0.1025
	20	0.035	0.430	0.1738
	18	0.049	0.402	0.2360
	16	0.065	0.370	0.3020
5/8	20	0.035	0.555	0.2205
	18	0.049	0.527	0.3014
	16	0.065	0.495	0.3888
3/4	20	0.035	0.680	0.2673
	18	0.049	0.652	0.3668
	16	0.065	0.620	0.4755
	14	0.083	0.584	0.5913
7/8	18	0.049	0.777	0.4323
	16	0.065	0.745	0.5623
	11	0.120	0.635	0.9676
1	20	0.035	0.930	0.3607
	18	0.049	0.902	0.4977
	16	0.065	0.870	0.6491
	14	0.083	0.834	0.8129
	11	0.120	0.760	1.1278
1-1/4	11	0.120	1.010	1.4480

304L Stainless Steel Seamless Tubes Wall Thickness

NPS	Stainless Steel 304 / 304L Tube Tolerance, %
NPS	+	–
1/8-2 1 /2	20.0	12.5
3~18, t/D≤ 5%	22.5	12.5
3~18, t/D> 5%	15.0	12.5
≥ 20, welded	17.5	12.5
≥ 20, seamless, t/D≤ 5%	22.5	12.5
≥ 20, seamless, t/D> 5%	15.0	12.5

Equivalent Material Grade Of TP 304L Hot Rolled Tube

Grade	Euronorm		Swedish SS	UNS No	Old British		GOST	Japanese JIS
	No	Name			BS	En
304L	1.4306; 1.4307	X5CrNi18-10	2332	S30403	304S31	58E	03Х18Н11	SUS 304L
