SS Inconel 625 pipe
- 9999 Ton / Tons per Month
- T/T L/C
Product Description
Name: SS Inconel 625 pipe
Size:0.5 in- 8 in
Material: 625
Type:Seamless / ERW / Welded / Fabricated / CDW
Thickness range: 0.5 - 20mm
Surface Treatment: Polishing, Hairline, Pickled, etc.

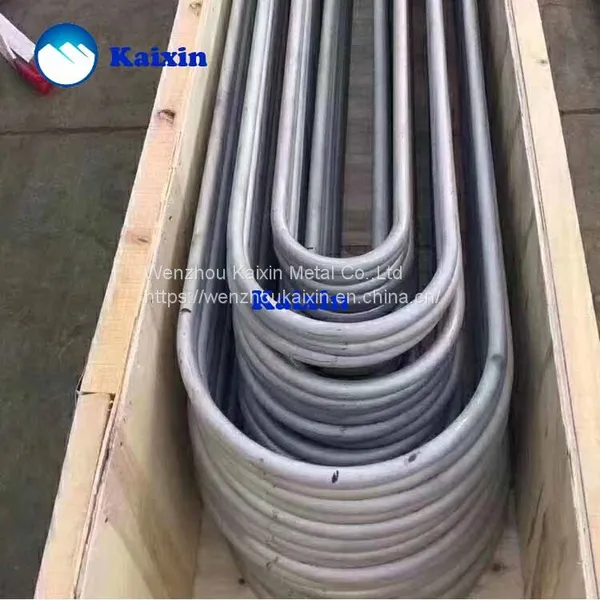

Finished condition: Round, Square, Rectangular, Coil,U Tube
Application: Petrochemical, Oil & Gas; Geothermal, Mining;Chemical Process, Pharmaceutical, Biomass;Sea Water, Water Desalination; LNG (Liquefied Natural Gas), Nuclear Power, Solar Power。
Model number:
Original: Wenzhou,Zhejiang
Standard:ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB
Brand:
Technics:
Package: Packed in woven bag, or put in wooden case
Price:
Delivery: Accord Quantity
Certificate:
Production ability:
Product Detail
Alloy 625 is a nonmagnetic , corrosion - and oxidation-resistant, nickel-based alloy. Its outstanding strength and toughness in the temperature range cryogenic to 2000°F (1093°C) are derived primarily from the solid solution effects of the refractory metals, columbium and molybdenum, in a nickel-chromium matrix. The alloy has excellent fatigue strength and stress-corrosion cracking resistance to chloride ions
Its ability to withstand high stress and a wide range of temperatures, both in and out of water, as well as being able to resist corrosion while being exposed to highly acidic environments makes it a fitting choice for nuclear and marine applications.
Table of Content:
1. Specification of SS Inconel 625 pipe
2. Applications of SS Inconel 625 pipe
3. Equivalent Grades for SS Inconel 625 pipe
4. SS Inconel 625 pipe Chemical Composition
5. SS Inconel 625 pipe Mechanical Properties
6. SS Inconel 625 pipe Physical Properties
7. SS Inconel 625 pipe Weight Chart
8. ASTM B444 grade 2 seamless pipe Wall Thickness
9. SS Inconel 625 pipe price list
Specification of SS Inconel 625 pipe
Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
Grade | 625 |
Type | Seamless / ERW / Welded / Fabricated / CDW
|
Length | Single Random Length, Double Random Length And Customize Size. |
End | Plain End, Bevelled End, Threaded |
Applications of SS Inconel 625 pipe
l Aerospace
l Marine engineering
l Nuclear reactors
l Boiler Furnace
l Engine parts
l Components where exposure to sea water and high mechanical stresses are required.
l Oil and gas production where hydrogen sulfide and elementary sulfur exist at temperature in excess of 150℃.
l Components exposed to flue gas or in flue gas desulfurization plants.
l Flare stacks on offshore oil platforms.
l Hydrocarbon processing from tar-sand and oil-shale recovery projects.
l Polution control equipment
Equivalent Grades for SS Inconel 625 pipe
STANDARD | WERKSTOFF NR. (WNR) | UNS | JIS | GOST | BS | AFNOR | EN |
Inconel 625 | 2.4856 | N06625 | NCF 625 | ХН75МБТЮ | NA 21 | NC22DNB4MNiCr22Mo9Nb | NiCr23Fe |
SS Inconel 625 pipe Chemical Composition
Ni | Fe | Cr | Si | Mo | Mn | C | |
Max | 5.0 | 23.0 | 0.50 | 10.0 | 0.50 | 0.10 | |
Min | 58.0 | 20.0 | 8.0 |
SS Inconel 625 pipe Mechanical Properties
Temper | Annealed (Grade1) | Solution-annealed (Grade 2) | ||
Tensile Rm | 120 | ksi (min) | 100 | ksi (min) |
Tensile Rm | 827 | MPa (min) | 690 | MPa (min) |
R.p. 0.2% Yield | 60 | ksi (min) | 40 | ksi (min) |
R.p. 0.2% Yield | 414 | MPa (min) | 276 | MPa (min) |
Elongation (2” or 4D gl) | 30 | % (min) | 30 | % (min) |
SS Inconel 625 pipe Physical Properties
Physical Property | °C | Metric Units | °F | British Units |
Density | 22 | 8.44 g/cubic cm | 72 | 0.305 lb/cubic in. |
Electrical | 23 | 1.26 microhm-m | 74 | 49.6 microhm-in. |
Mean Coefficient | 20-204 | 13.1 x 10(-6)m/m-°C | 68-400 | 7.3 microinches/in.-°F |
Thermal | 23 | 9.8 W/M-°C | 74 | 68 Btu-in./ft².-hr.-°F |
Specific | 0 | 429 J/kg-°C | 32 | 0.102 Btu/lb-°F |
SS Inconel 625 pipe Weight Chart
NPS | Outside Diameter | Wall Thickness | Weight | Weight | |||
in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
4″ | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
0.337 | 8.560 | 22.318 | 14.983 | ||||
6″ | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
0.203 | 5.516 | 20.739 | 13.923 | ||||
0.219 | 5.563 | 22.318 | 14.983 | ||||
0.250 | 6.350 | 25.354 | 17.021 | ||||
0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
0.312 | 7.925 | 31.334 | 21.036 | ||||
0.375 | 9.525 | 37.285 | 25.031 | ||||
0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
0.500 | 12.700 | 48.719 | 32.708 | ||||
8″ | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
0.203 | 5.156 | 27.198 | 18.259 | ||||
0.219 | 5.563 | 29.286 | 19.661 | ||||
0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
0.375 | 9.525 | 49.216 | 33.041 | ||||
0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
10″ | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
0.219 | 5.563 | 36.689 | 24.631 | ||||
0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
0.344 | 8.738 | 56.946 | 38.231 | ||||
0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
0.438 | 11.125 | 71.852 | 48.238 | ||||
0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
12″ | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
0.219 | 5.563 | 43.657 | 29.309 | ||||
0.250 | 6.350 | 49.713 | 33.375 | ||||
0.281 | 7.137 | 55.739 | 37.420 | ||||
0.312 | 7.925 | 61.735 | 41.445 | ||||
0.375 | 9.525 | 73.824 | 49.562 | ||||
0.406 | 10.312 | 79.727 | 53.525 | ||||
0.500 | 12.700 | 97.438 | 65.415 | ||||
0.562 | 14.275 | 108.966 | 73.154 | ||||
14″ | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
0.219 | 5.563 | 48.012 | 32.233 | ||||
0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
0.281 | 7.137 | 61.327 | 41.172 | ||||
0.312 | 7.925 | 67.939 | 45.611 | ||||
0.375 | 9.525 | STD | 81.281 | 54.568 | |||
0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
0.625 | 15.875 | 132.983 | 89.278 | ||||
16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
0.219 | 5.563 | 54.980 | 36.910 | ||||
0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
0.281 | 7.137 | 70.268 | 47.174 | ||||
0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
0.344 | 8.738 | 85.677 | 57.519 | ||||
0.375 | 9.525 | 30 STD | 93.213 | 62.578 | |||
0.438 | 11.125 | 108.433 | 72.797 | ||||
0.500 | 12.700 | 40 XHY | 123.289 | 82.770 | |||
18″ | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
0.250 | 6.350 | 70.593 | 47.393 | ||||
0.281 | 7.137 | 79.208 | 53.176 | ||||
0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
0.375 | 9.525 | STD | 105.144 | 70.588 | |||
0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
0.625 | 15.875 | 172.754 | 115.978 | ||||
20″ | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
0.282 | 7.163 | 88.458 | 59.386 | ||||
0.312 | 7.925 | 97.719 | 65.604 | ||||
0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
0.438 | 11.125 | 136.305 | 91.508 | ||||
0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
0.625 | 15.875 | 192.640 | 129.328 | ||||
0.688 | 17.475 | 211.368 | 141.901 | ||||
24″ | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
0.281 | 7.137 | 106.029 | 71.183 | ||||
0.312 | 7.925 | 117.573 | 18.932 | ||||
0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
0.438 | 11.125 | 164.176 | 110.219 | ||||
0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
0.625 | 15.875 | 232.410 | 156.028 | ||||
0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
0.750 | 19.050 | 277.401 | 186.233 | ||||
30″ | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
0.281 | 7.137 | 132.851 | 89.189 | ||||
0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
0.375 | 9.525 | STD | 176.731 | 118.648 | |||
0.438 | 11.125 | 205.983 | 138.286 | ||||
0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
0.688 | 17.475 | 320.817 | 215.380 | ||||
0.750 | 19.050 | 348.988 | 234.293 | ||||
36″ | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
0.281 | 7.137 | 159.672 | 107.196 | ||||
0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
0.375 | 9.525 | STD | 215.525 | 142.678 | |||
0.438 | 11.125 | 247.790 | 166.353 | ||||
0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
0.625 | 15.875 | 351.723 | 236.128 | ||||
0.688 | 17.475 | 386.487 | 259.467 | ||||
0.750 | 19.050 | 420.576 | 282.353 | ||||
42″ | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
0.375 | 9.525 | STD | 248.319 | 166.708 | |||
0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
0.750 | 19.050 | 492.163 | 330.413 | ||||
48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
0.438 | 11.125 | 331.404 | 222.487 | ||||
0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
0.750 | 19.050 | 563.750 | 378.473 | ||||
0.875 | 22.225 | 655.969 | 440.383 |
ASTM B444 grade 2 seamless pipe Wall Thickness
Types | Out diameter | Wall thickness | Length |
NB Sizes (in stock) | 1/8” ~ 8” | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | Upto 6 Meters |
inconel 625 Seamless Pipe (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |
inconel 625 Welded Pipe (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 mm | Upto 6 Meters |
