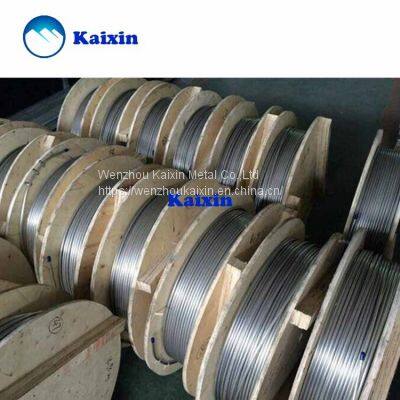

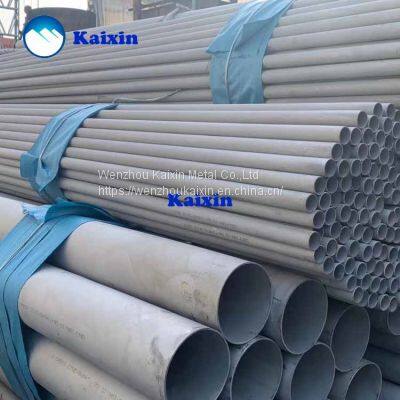

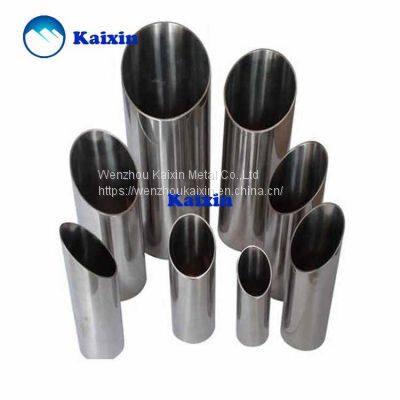

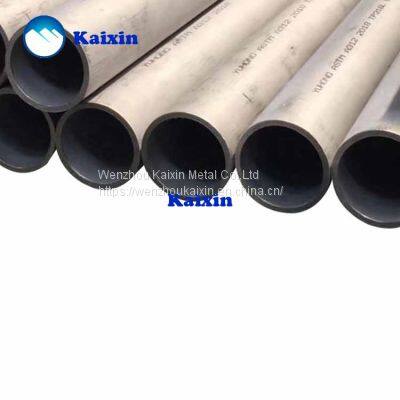

304H Stainless Steel Tube
- 9999 Ton / Tons per Month
Product Description
Name: 304H Stainless Steel Tube
Size: 1/8" NB TO 30" NB IN
Material: 304H
Type:Seamless / ERW / Fabricated / Welded / LSAW Tubes
Thickness range: 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
Surface Treatment: Polishing, Hairline, Pickled, etc.
Finished condition: Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Application: Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchange.
Application: petroleum refineries, boilers pipelines, cooling plants, electric generation plants, etc
Model number:
Orignal: Wenzhou,Zhejiang
Standrad:ASTM A/ASME SA213/ A269/ A249
Brand:
Technics:
Package: Packed in woven bag, or put in wooden case
Price:
Delivery: Accord Quantity
Certificate:
Production ability:
The Stainless Steel 304H Tube is designed with a yield strength of minimum 205Mpa and tensile strength of a minimum 515Mpa. They can be easily elongated by 40% as per requirements. These pipes offer good strength at high temperatures of 500° C and up to 800° C.
The 304H Stainless Steel Tube is made with higher carbon content. They are highly versatile and are highly resistant to corrosion. These tubes have excellent weldability and good mechanical properties.
Table of Content:
1. Specification of 304H Stainless Steel Tube
2. Applications of 304H Stainless Steel Tube
3. Stainless Steel 304H welded tubes size
4. Stainless steel 304H round tube composition
5. Stainless steel 304H Tube Mechanical Properties
6. Equivalent grades for 304H Stainless steel Tube
7. Pressure Ratings Of Stainless Steel 304H Tube
Specification of 304H Stainless Steel Tube
Standard | ASTM A/ASME SA213/ A269/ A249 |
Grade | 304H |
Type | Seamless / ERW / Fabricated / Welded / LSAW Tubes |
Length | Single Random, Double Random & Required Length |
End | Plain End, Beveled End, Treaded |
Outer Diameter | 6.00 mm to 60.00 mm |
Applications of 304H Stainless Steel Tube
l Oil Tube
l Gas Tube
l Fluid Tube
l Boiler Tube
l Heat exchanger Tube
l Food processing equipment
l Architectural panelling, railings & trim
l Threaded fasteners
l Woven or welded screens for mining
Stainless Steel 304H welded tubes sizeWall | Sizes ( O.D.) |
.010 | 1/16" , 1/8" , 3/16" |
.020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
.012 | 1/8" |
.016 | 1/8" , 3/16" |
.028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
.035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
.083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
.095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
.109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
.120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
.125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
.134 | 1" |
.250 | 3" |
.375 | 3 1/2" |
Stainless steel 304H round tube composition
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | – |
Stainless steel 304H Tube Mechanical Properties
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
304H | 515 | 205 | 40 | 92 | 201 |
Grade | UNS No | Old British | Euro norm | Swedish SS | Japanese JIS | ||
BS | En | No | Name | ||||
304H | S30409 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304H |
Pressure Ratings Of Stainless Steel 304H Tube
Schedule of tube | Size of Seamless tube | (°F) Temperature | ||||||||
200 | 100 | 300 | 500 | 400 | 600 | 700 | 650 | 750 | ||
80 | 1" | 3634 | 4213 | 3265 | 2791 | 3002 | 2659 | 2528 | 2580 | 2501 |
40 | 1" | 2629 | 3048 | 2362 | 2019 | 2171 | 1924 | 1824 | 1867 | 1810 |
40 | 1.5" | 1947 | 2257 | 1750 | 1496 | 1608 | 1425 | 1354 | 1383 | 1340 |
160 | 1" | 5296 | 6140 | 4759 | 4068 | 4375 | 3876 | 3684 | 3761 | 3646 |
160 | 1.5" | 3984 | 4619 | 3580 | 3060 | 3291 | 2916 | 2772 | 2829 | 2743 |
80 | 1.5" | 2744 | 3182 | 2466 | 2108 | 2267 | 2009 | 1909 | 1949 | 1889 |
80 | 2" | 2369 | 2747 | 2129 | 1820 | 1957 | 1734 | 1648 | 1682 | 1631 |
40 | 2" | 1640 | 1902 | 1474 | 1260 | 1355 | 1201 | 1141 | 1165 | 1129 |
40 | 3" | 1558 | 1806 | 1400 | 1196 | 1287 | 1140 | 1084 | 1106 | 1072 |
160 | 2" | 3880 | 4499 | 3486 | 2980 | 3205 | 2840 | 2699 | 2755 | 2671 |
160 | 3" | 3312 | 3840 | 2976 | 2544 | 2736 | 2424 | 2304 | 2352 | 2280 |
80 | 3" | 2202 | 2553 | 1979 | 1691 | 1819 | 1612 | 1532 | 1564 | 1516 |
80 | 4" | 1909 | 2213 | 1715 | 1466 | 1577 | 1397 | 1328 | 1355 | 1314 |
40 | 4" | 1321 | 1531 | 1187 | 1014 | 1091 | 967 | 919 | 938 | 909 |
40 | 5" | 1158 | 1342 | 1040 | 889 | 956 | 847 | 805 | 822 | 797 |
160 | 4" | 3106 | 3601 | 2791 | 2386 | 2566 | 2273 | 2161 | 2206 | 2138 |
80 | 5" | 1709 | 1981 | 1535 | 1312 | 1411 | 1250 | 1189 | 1213 | 1176 |
160 | 5" | 2945 | 3414 | 2646 | 2262 | 2433 | 2155 | 2049 | 2091 | 2027 |
80 | 6" | 1650 | 1913 | 1483 | 1267 | 1363 | 1208 | 1148 | 1172 | 1136 |
40 | 6" | 1052 | 1219 | 945 | 808 | 869 | 770 | 732 | 747 | 724 |
40 | 8" | 926 | 1073 | 832 | 711 | 765 | 678 | 644 | 657 | 637 |
160 | 6" | 2836 | 3289 | 2549 | 2179 | 2343 | 2076 | 1973 | 2014 | 1953 |
160 | 8" | 2738 | 3175 | 2460 | 2103 | 2262 | 2004 | 1905 | 1944 | 1885 |
80 | 8" | 1459 | 1692 | 1311 | 1121 | 1205 | 1068 | 1015 | 1036 | 1005 |
80 | 10" | 1388 | 1609 | 1247 | 1066 | 1147 | 1016 | 966 | 986 | 956 |
40 | 10" | 840 | 974 | 755 | 945 | 694 | 615 | 584 | 596 | 578 |
160 | 10" | 2714 | 3147 | 2439 | 2085 | 2242 | 1986 | 1880 | 1927 | 1868 |
