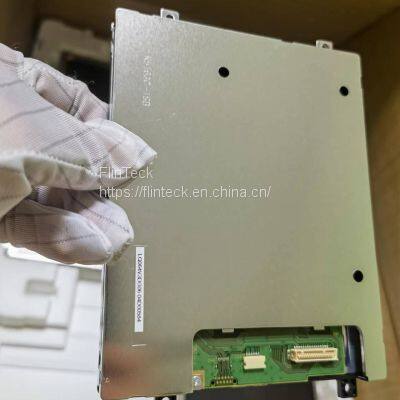

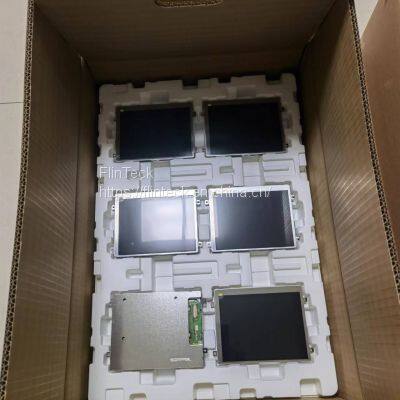

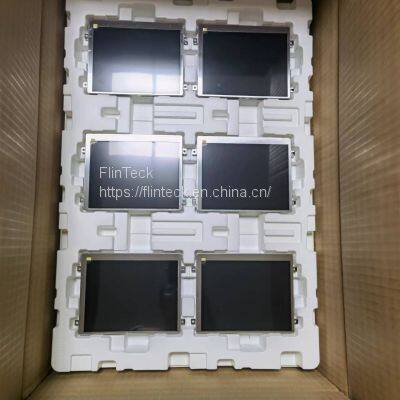

LQ064V3DG06 Sharp 6.4-inch LCD TTL Interface Resolution 640x480

Manufacturer Sharp (Sharp)

Model LQ064V3DG06

Diagonal dimension 6.4 inch

Type a-Si TFT-LCD, liquid crystal module

The resolution is 640×480(RGB) VGA 124PPI.

Pixels are arranged in RGB horizontal stripes.

The display area is 130.56 (horizontal) ×97.92 (vertical) mm.

The external dimension is 161.3 (horizontal) ×117 (vertical) ×12.5 (thickness) mm.

The opening area is 135.3 (horizontal) ×103.0 (vertical) mm.

Surface treatment fog surface, Hard coating (3H)

Display brightness is 350 cd/m² (Typ.)

Contrast ratio 500:1 (Typ.) (transmission)

Recommended viewing angle 6 o'clock

Response time 8/21 (Typ.)(Tr/Td) ms

The viewing angle is 70/70/40/70 (Typ.)(CR≥10).

Display mode TN, normally white display, transmissive

Support color 262K.

Type of light source WLED, 50K hours, including LED driver.

Application products weighing 200g (Typ.)

Frame frequency is 60Hz.

Touch technology without touch

The interface type is 31 pins Parallel RGB (1 ch, 6-bit), and the terminal voltage supply is 3.3V (Typ.).

Working temperature of application environment:-30 ~ 80 C; Storage temperature:-30 ~ 80 C;

Vibration resistance: 2.0g (19.6m/s)
